American Standard Tropic T038507.002 Bedienungsanleitung

Lies die bedienungsanleitung für American Standard Tropic T038507.002 (4 Seiten) kostenlos online; sie gehört zur Kategorie Duschsystem. Dieses Handbuch wurde von 5 Personen als hilfreich bewertet. Hast du eine Frage zu American Standard Tropic T038507.002 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

/ 4 PDF

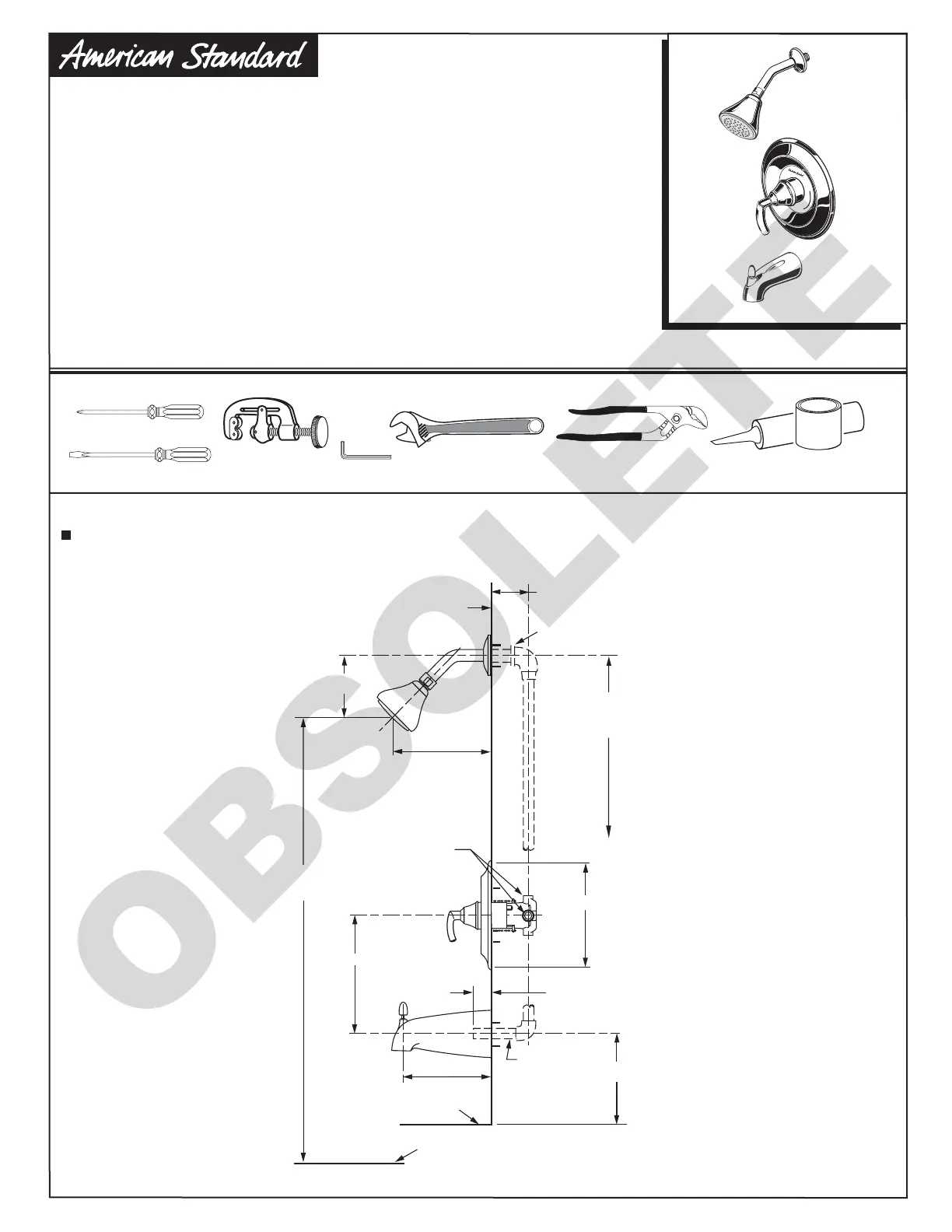

T038.50X

TROPIC

FINISHED WALL

4"

TOP OF TUB RIM

BOTTOM OF TUB

74" FOR HEAD

CLEARANCE

4-1/4" REF.

18" OPTIONAL

5-1/8" REF.

1/2" NPT

1/2" COPPER

7-5/8”

1-1/2" REF.

6" REF.

"SEE ILLUSTRATION "

3/4"" TO 2-3/8"

SHR

TUB

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 80''

IN WALL PRESSURE BALANCING

BATH AND SHOWER TRIM KIT

To assure proper positioning in relation to wall,

note roughing-in dimensions.

ROUGHING-IN DIMENSIONS

Certified to comply with ANSI A112.18.1

Installation

Instructions

Tubing Cutter

4mm (5/32")

Hex Wrench

Recommended Tools

Adjustable Wrench

Channel Locks

Flat Blade Screwdriver

Plumbers' Putty or Caulking

Phillips Screwdriver

H

C

OFF

M968895 Rev.1.1

Thank you for selecting American-Standard...

the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--

please read these instructions carefully before

you begin.

OBSOLETE
