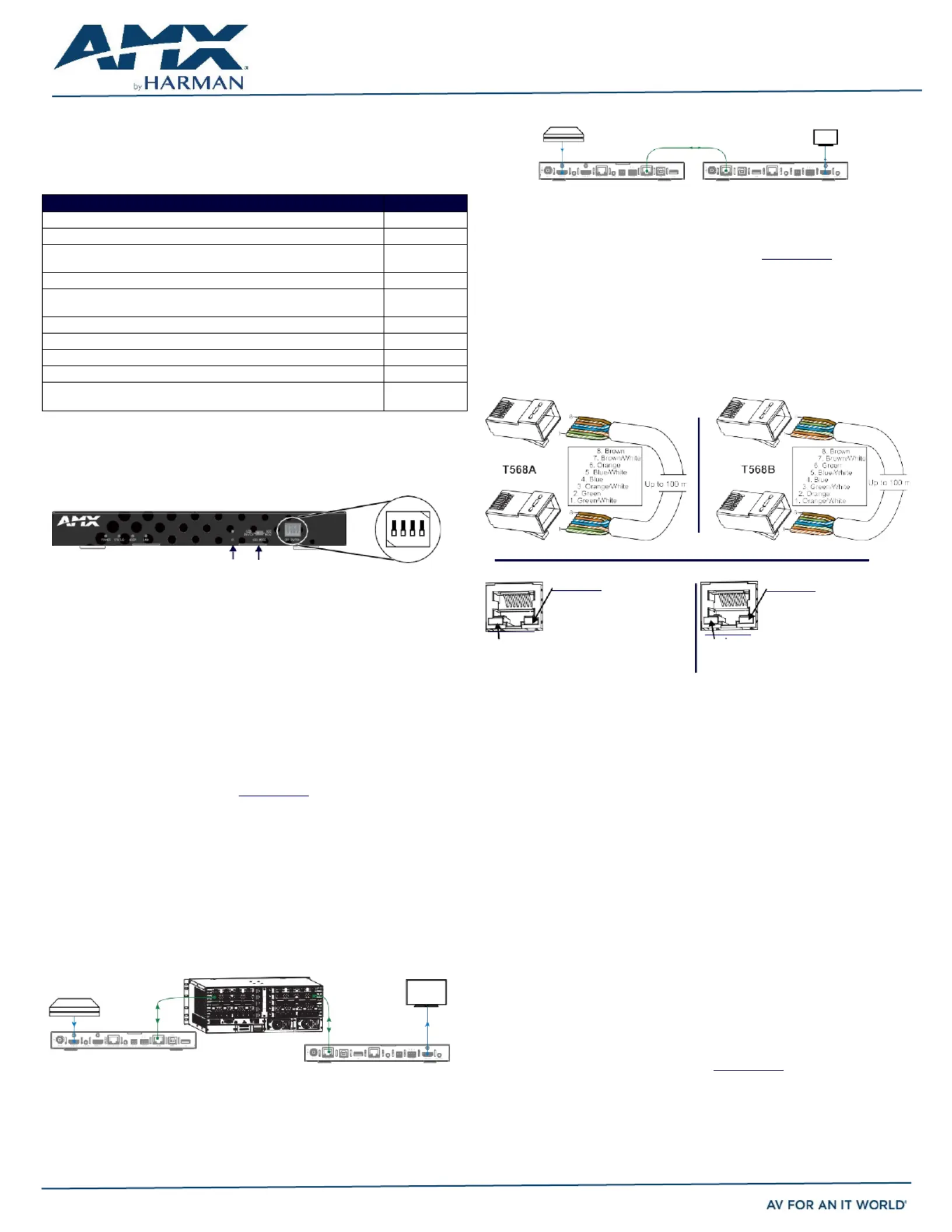

DIP Switch Toggles Default OFF (for Autosetup, see next page)– -

Before installing the units, find the scenario you are using in the table below and set the

DIP switch toggles accordingly. Toggle#4 is reserved for futurefunctionality.

For standalone pair upgrades, set Toggles #1-2-3 to ON and connect one unit to a

Controller.

COMMON SCENARIOS

TOGGLES

Standalone Setup

1 2 - - 3

AV signals only (plus serial/IR passthrough)

OFF OFF - - OFF

AV with Ethernet passthrough to networked device (plus serial/IR

passthrough)*

ON - - OFF OFF

AV with NetLinx control of TX/RX unit and serial/IR ports**

ON ON - - ON

AV with NetLinx control of TX/RX unit and serial/IR ports, plus Ethernet

passthrough to network device*

ON ON - - ON

Switcher Setup (TX/RX with Enova DGX/DVX /DGX 100 Series Switcher)

1 2 - - 3

AV signals only

OFF OFF - - OFF

AV with Ethernet passthrough to networked device*

ON - - OFF OFF

AV with NetLinx control of TX/RX unit and serial/IR ports

OFF OFF - - ON

AV with NetLinx control of TX/RX unit and serial/IR ports, plus Ethernet

passthrough to network device*

ON - - OFF ON

* Connect ICS LAN port of DXLink unit to network device (e.g., laptop, IP controlled

projector, ICSLan Device). In standalone setup, connect ICS LAN port of other DXLink

unit to network.

** In standalone setup using NetLinx control of DXLinkserial/IR ports, only one of the

DXLink units should be connected to network (the unit with #1 Toggle enabled).

Source Device

Destination Device

DXLINKDXLINK Transmitter Receiver

FIG. 3 DXLINK TX AND RX AS EXTENDER SOLUTION

Mounting Options (Rack Trays and Mounting Brackets)

For details on the four versatile mounting kit options for V Style modules (rack tray, rack

tray with fill plates, surface mount, and pole mount), see www.amx.com

IMPORTANT: When mounting under a surface, the module should be mounted upright and

lowered in the mounting bracket slots to provide an airflow gap between the surface and

the vent holes. If not using V Style brackets, be sure to leave a gap between the top of

the unit and the surface for heat to escape.

Twisted Pair Cable Pinouts and RJ-45 LEDs

The DXLink and ICS LAN 10/100 ports both use twisted pair cable. FIG. 4 shows two

pinouts that can be used for either port. FIG. 5 shows the LEDs for each port.

FIG. 4 RJ- 45 PINOUTS

FIG. 1

DIP SWITCH TOGGLES ENABLE/DISABLE SPECIAL FUNCTIONALITY

Overview

The --DXTX4K60 and -DXRX- 4K60transmit HDMI, audio,USB and control over twisted

Yellow LED

On - Speed status is 100Mbps

Off- Speed status is 10Mbps

ICS LAN 10/100 Port

Green LED

Yellow LED

On - Authenticated HDCP

Flashing - Video active; no HDCP

Off- No Video

DXLink Port

pair cable. The TX also has an HDMI local loop out. DXLink Modules can be set up in

one of three ways:

•

Endpoint Mode – (Switcher)connect oneormore to a switcherwithan integrated

Controller.

•

Endpoint Mode – (Standalone)connectTX/RX pair directlytoeach otherwithone

Green LED

On - Link status is active

Off- Link status is not active

FIG. 5 RJ- 45 PORTS

On - Connection established

Off- establishedConnection not

connected to a NetLinx Central Controller via LAN or directly to Controller.

•

Extender Mode(Standalone) – connectTX/RX pairdirectly toeach other.

These Modules support InstaGate Pro® and SmartScale® Technology.

The Hardware Reference Manual DXLink Twisted Pair 4K60 Transmitters/Receiver –

contains complete documentation (including full specifications and supported input

and output resolutions); for details, see www.amx.com.

System Setup

The DX---- TX4K60 and DXRX4K60 work with a switcher that supports DXLink

Technology or as a standalone pair to transmit audio, video and control signals. The -

Transmitter receives audio and video from the HDMI source and transmits both audio

and video over theDXLink twistedpair cable.This DXlinkcable canbe connected directly

to a DXLink Receiver or to a DXLink input on a DXLink switcher where it can be routed to

a DXLink output and connected to a DXLink Receiver. The DXLink Receiver converts the

DXLink input to HDMI and analog audio outputs. On the Transmitter, stereo audio

connections are provided as a supplemental audio input. Both the Transmitter and the

Receiver support - RS232for serialdatatransfer, USB,IR,andEthernet.

Destination Device

Attaching Signal, Transport, and Control Cables

Important Twisted Pair Cabling Requirements and Recommendations:

•

DXLinkruns cable requireshieldedcategory cable 6 (STP)ofCat(or better).

•

For cable runs longer than70 meterstotal, shieldedcategorycable (STP)of Cat 6A

or better is required.

•

DXLink twistedpair cableruns forDXLink equipment shallonlybe runwithin

a common building.*

•

DXLinkconnectorsmust - (RJ45) notbe usedforconnecting a tostandard

Ethernet Network. The connector is used for signal transport.

•

Do not create a network (Ethernet) loop. A network loop is created when the

enclosureand one or more of itsDXLink Modules are connected to a common LAN

(or a standalone pair when both endpoints connect to the same network).

•

DXLink delivers 10.2Gb/s throughputover shielded category cable. Based on this

bandwidth requirement, we recommend following industry standard practices

designed for 10 Gigabit Ethernet when designing and installing the cable

infrastructure.

•

The cables should be no longer than necessary to reach the endpoints. We -

recommend terminating the cableto the actual distance required ratherthan

leaving any excess cable in a service loop.

Source Device

DXLINK Input Board

Cat x

DXLINK Output Board

•

For more information, see theHardware ReferenceManual – DXLink Twisted Pair

4K60 Transmitters/Receiver.

HDMI IN

DXLINK Transmitter

Up to330ft

(100m)

D

C

F

L

T

LAN 100/1000

Cat x

Up to330ft

(100m)

DXLINK Receiver

HDMI OUT

* “Common building” is defined as: Where the walls of the structure(s) are physically

connected and the structure(s) share a single ground reference.

For more details and helpful cabling information, reference the white paper titled

“Cabling for Success with DXLink” available at www.amx.com

or contact your AMX

representative.

FIG. 2 DXLINK TX AND RX AS ENDPOINTS WITH COMPATIBLE DXLINK EQUIPMENT

Cat x Up to330ft(100m)

HDMI IN

HDMI OUT

ON

1 2 3 4

ID USB MODE

QUICK START GUIDE

DXLink™ Twisted Pair 4K60 Transmitter/Receiver
