User Manual UPSBack-

B 0X Series 75 VA, 95 VA, 1200VA, 6 VA, 2200VA0 1 00

IMPORTANT SAFETY INSTRUCTIONS

Read the instructions carefully and look at the equipment to become familiar with the device before

trying to install, operate, service or maintain it. The following special messages may appear throughout

this document or on the equipment to warn of potential hazards or to call attention to information that

claries or simplies a procedure.

The addition of this symbol to either a “Danger” or “Warning” safety label indicates that

an electrical hazard exists which will result in personal injury if the instructions are not

followed.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER indicates a hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING could result in indicates a hazardous situation which, if not avoided, death or

serious injury.

CAUTION could result in indicates a hazardous situation which, if not avoided, minor or

moderate injury.

NOTICE is used to address practices not related to physical injury.

Product Handling Guidelines

DANGER

WARNING

CAUTION

NOTICE

< 18 kg

< 40 lb

18-32 kg

40-70 lb

32-55 kg

70-120 lb

> 55 kg

> 120 lb

Safety and General Information

SAVE THESE INSTRUCTIONS –

This manual contains important instructions that should be followed during installation and

maintenance of the UPS and batteries.

Inspect the package contents upon receipt. Notify the carrier and dealer if there is any damages.

 This UPS is intended for indoor use only.

 Mains socket outlet that supplies the UPS shall be installed near the UPS and shall be easily

accessible.

 UPS must be connected to an earthed mains socket outlet.

 Servicing of batteries should be performed or supervised by personnel knowledgeable about

batteries and required precautions. In this case, batteries is not user-replaceable.

 When replacing battery the UPS must be OFF, and its AC inlet unplugged.

 CAUTION Do not dispose of batteries in a re. The batteries may explode.

 CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

 Do not open or mutilate batteries. They contain an electrolyte that is toxic and harmful to the skin

and eyes.

 Failed batteries can reach temperatures that exceed the burn thresholds for touchable surfaces.

 CAUTION A battery can present a risk of electrical shock and high short circuit current.

The following precautions should be observed when working on batteries.

a. Remove watches, rings or other metal objects.

b. Use tools with insulated handles.

c. Wear rubber gloves and boots.

d. Do not lay tools or metal parts on top of batteries.

e. Disconnect the charging source prior to connecting or disconnecting battery terminals.

f. Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from

ground. Contact with any part of a grounded battery can result in electrical shock. The likelihood

of such shock can be reduced if such grounds are removed during installation and maintenance.

 The battery in the Back-UPS Series is not user-replaceable.

Back- BX Series 750VA, 950VA, 1200VA, 6 VA, 2200VAUPS 1 00

Battery Replacement

The battery in the Back-UPS is not user-replaceable. Contact SEIT Technical Support for a list of

authorized service centers near you.

For the recycling battery information, please go to apc.com/us.

CAUTION

RISK OF HYDROGEN SULPHIDE GAS AND EXCESSIVE SMOKE

Replace the battery at least every 5 years.

Replace the battery immediately when the UPS indicates battery replacement is

necessary.

Replace battery at the end of its service life.

Replace batteries with the same number and type of batteries as originally installed in

the equipment.

Replace the battery immediately when the UPS indicates a battery over-temperature

condition, or UPS internal over-temperature, or when there is evidence of electrolyte

leakage. Power off the UPS, unplug it from the AC input, and disconnect the batteries.

Do not operate the UPS until the batteries have been replaced.

Failure to follow these instructions can result in injury.

Radio Frequency Warning

This is a category C2 UPS product. In a residential environment, this product may cause radio

interference, in which case the user may be required to take additional measures.

Product Description

The APC by Schneider Electric Back-UPS offers power and surge protection for wireless networks,

computers, gaming consoles and other electronics in your home or business. This UPS supply battery

backup during outages and unstable voltage fluctuations, as well as provide protection from damaging

surges and spikes. It’s equipped with data line surge protection which safeguards your equipment and

valuable files from “back door” surges traveling along data line. They are the choice helps to protect

your sensitive electronics.

Place and Power On

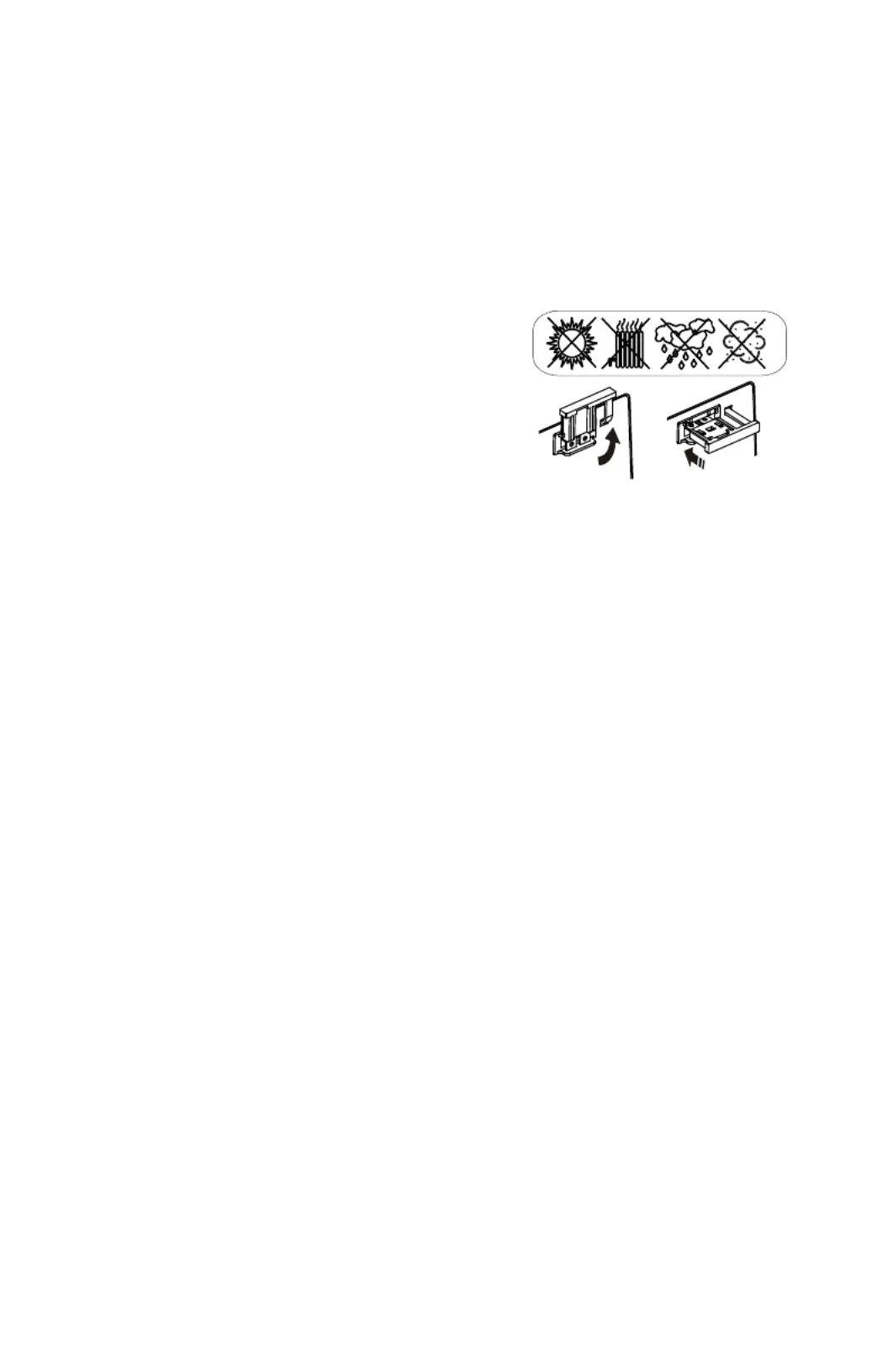

1. Place the Back-UPS :to avoid

 Direct sunlight

 Excessive heat

 Excessive moisture

 Excessive dust/dirt

For operation, please place the unit on the floor.

2. Connect the battery by pulling the battery handle up,

and then pushing it into the unit.

3. Connect equipment to the UPS. Avoid using extension cords.

4. Plug the Back-UPS power cord directly into a wall outlet, not into a surge protector or power strip.

5. Press the ON/OFF button to turn on the unit.

The green “Power On” indicator confirms that the Back-UPS is on and ready to provide protection.

The Back-UPS should charge for at least 24 hours to ensure sufficient runtime. The unit is being

charged whenever it is connected to AC power, whether the unit is turned ON or OFF.

Operational Features

Automatic Voltage Regulation boosts/trims the AC voltage when it drops/exceeds levels. This allows

the equipment plugged into the unit to operate during low/high voltage conditions, conserving the

battery power in the event of a power cut. The Back-UPS will switch to battery power if the input

voltage level becomes too low/high for the Automatic Voltage Regulation to compensate, or if the AC

power is distorted.

Automatic Voltage Regulation (AVR)

PowerChute Personal Edition Software

To install PowerChute Personal Edition (PCPE) software, connect a USB cable to the data port on the

UPS and the other end to a computer with access to the web.

On the computer, go to Select “www.apc.com/tools/download. Software Upgrades - PowerChute

Personal Edition Filter by Software/Firmware” in the “ ” drop down menu. Select the appropriate

operating system. Follow directions to download the software.

The Back-UPS is able to temporarily mute user correctable audible alarms such as On Battery. During

such audible alarms, a short press (less than 2 seconds) of the POWER button will temporarily mute

the audible alarm until the condition has been reset. A short double beep will confirm that Quick Mute

has been activated. Pressing the POWER button for more than 2 seconds will turn off the UPS.

Other critical events such as Battery replacement and Charger notification can not be temporarily

muted. The unit in these cases must be turned off.

Quick Mute

Voltage Sensitivity Adjustment

The Back-UPS detects and reacts to line voltage distortions in PCPE by transferring to battery backup

power to improve protection of connected equipment. In situations where either the Back-UPS or the

connected equipment is too sensitive for the input voltage level, it is necessary to adjust the transfer

voltage. Refer to user guide of PowerChute Personal Edition.

Back- BX Series 750VA, 950VA, 1200VA, 6 VA, 2200VAUPS 1 00

Produktspezifikationen

Marke:	APC
Kategorie:	Nicht kategorisiert
Modell:	Back-UPS BX750MI
Akustische Signale:	Ja
USB Anschluss:	Ja
Breite:	120 mm
Tiefe:	355 mm
Gewicht:	5400 g
Mitgelieferte Kabel:	Eingangskabel
Produktfarbe:	Schwarz
Internationale Schutzart (IP-Code):	IP20
Akkuladezeit:	6 h
Akku-/Batterietechnologie:	Plombierte Bleisäure (VRLA)
Höhe:	160 mm
Stecker:	C14-Koppler
Anzahl USB 2.0 Anschlüsse:	1
Betriebstemperatur:	0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb:	0 - 95 %
Verpackungsbreite:	197 mm
Verpackungstiefe:	430 mm
Verpackungshöhe:	250 mm
Paketgewicht:	5900 g
Zertifizierung:	CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Anzahl Ethernet-LAN-Anschlüsse (RJ-45):	2
Warentarifnummer (HS):	85078000
Kabellänge:	1.2 m
Betriebsanleitung:	Ja
Reaktionszeit:	6 ms
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-15 - 40 °C
Geräuschpegel:	40 dB
Batterielebensdauer (max.):	2 Jahr(e)
Formfaktor:	Kompakt
Ausgangsleistung:	410 W
Nachhaltigkeitszertifikate:	RoHS
Eingangsfrequenz:	50/60 Hz
Höhe bei Betrieb:	0 - 3000 m
Anzahl der AC-Ausgänge:	4 AC-Ausgänge
USV-Topologie:	Line-Interaktiv
Eingangs-Betriebsspannung (min):	140 V
Eingangs-Betriebsspannung (max):	300 V
Ausgangskapazität:	0.75 kVA
Ausgangs-Betriebsspannung (min):	230 V
Ausgangs-Betriebsspannung (max):	230 V
Automatische Spannungsregulierung:	Ja
AC-Steckertypen:	C13-Koppler
Typische Backup-Zeit bei halber Belastung:	8.5 min
Typische Backup-Zeit bei voller Belastung:	1 min
Wellenform:	Sine
Output Frequenz:	50/60 Hz
Regulierung der Ausgangsspannung:	10 %
Druckanstiegsschutz:	Ja
Akustische Alarm-Modi:	Warnung bei geringer Batterie
Eingangs-Leistungsfaktor:	0.63
Regulierung der Ausgangsfrequenz:	0.5 Hz
USB-Port-Typ:	USB Typ-B
Anstieg der Energiemenge:	273 J
