Arecont Vision MegaVideo
®
Compact Camera Series Installation Manual
1 | P a g e
MegaVideo
®
Compact Camera Installation Manual
A. MegaVideo
Inside the box:
®
B. Rubber gasket (preinstall on the camera)
c c ompact amera
C. CD with AV100 oftware and s user
m lanuals ( icense key required for
recording)
D. C to CS l a ens dapter
E. 0.5mm lens spacer ring
F. 6-position external power & IO plug
G. h L-K 0.05” ex ey
Image 1
1. Remove the camera and hardware from the
box.
Camera Power Up:
2. Attach the camera to the mounting bracket.
3. Connect the MegaVideo
®
C Compact amera to
a PoE port on 100Mbps network PoE switch
using an Ethernet cable as shown in Image 2,
if using a PoE solution.
Image 2
4. Connect the PoE switch to your computer’s
network port using an Ethernet cable. If the
camera will be powered via PoE, please skip
to step 5.
NOTE: A yellow LED on the rear of the camera
will turn on after a few seconds.
a. The flashing yellow LED indicate that a s
link to your computer has been
established.
b. A green LED will blink when the camera
has been accessed.
5. If the camera is powered by an outside power
supply, connect power wires to the the
appropriate contacts of the 6-postion
connector using a small flathead screwdriver
and connect position plug to the 6- the camera
as shown in Image 3-1.
F
E
C
A
D
B
G
Arecont Vision MegaVideo
®
Compact Camera Series Installation Manual
2 | P a g e

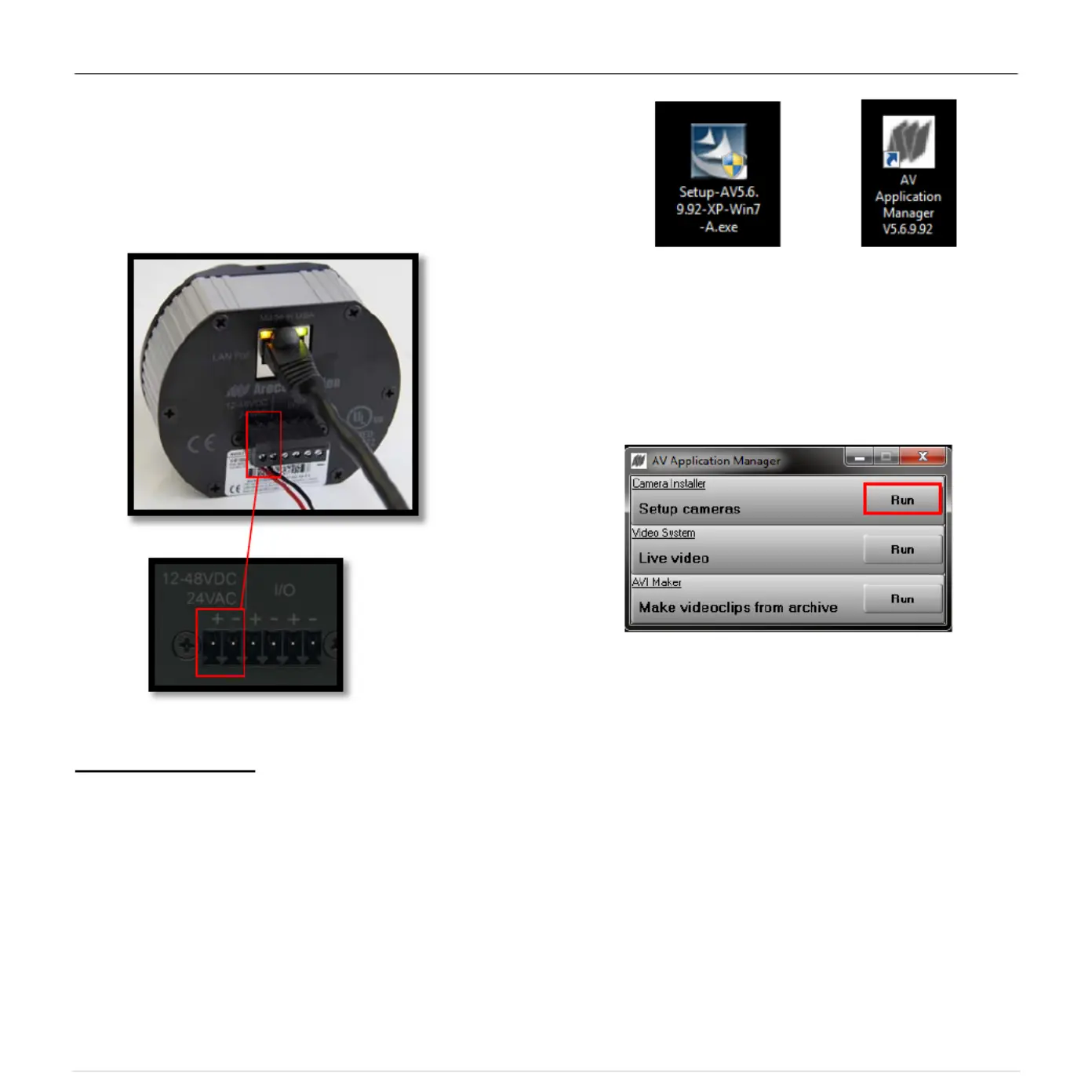

N 1 OTE : Ensure that the polarity of the DC
input on the camera the waymatches that
wires are installed in the connector shown in
Image 3-2.
N 2OTE : AC power does not have polarity.
Image 3-1
Image 3-2
Camera Installation:
6. Install the AV100 application manager
software as shown found on the in Image 4. (
CD)
7. Run the AV100 application manager by
double clicking on the icon as shown in Image
5. (found on your desktop)
Image 4 Image 5
8. “Setup Select “Run” next to Cameras” from
the AV100 application manager as shown in
Image 6 and wait for “Arecont Vision Camera
Installer” window to appear as shown in
Image 7.
Image 6
9. Click “Mode” tab to select desired install mode
on Arecontthe Vision Camera Installer as
shown in Image 7.
NOTE 1: Basic Mode (default setting): software
will automatically discover and change / assign
IP address to match PC subnet.
NOTE 2: Advanced Mode: software will
automatically discover but allow manual update
of the IP address. See “AV100 Installation
Manual” (found on the CD) for details on
A Mdvanced ode.
