Seite 1/21

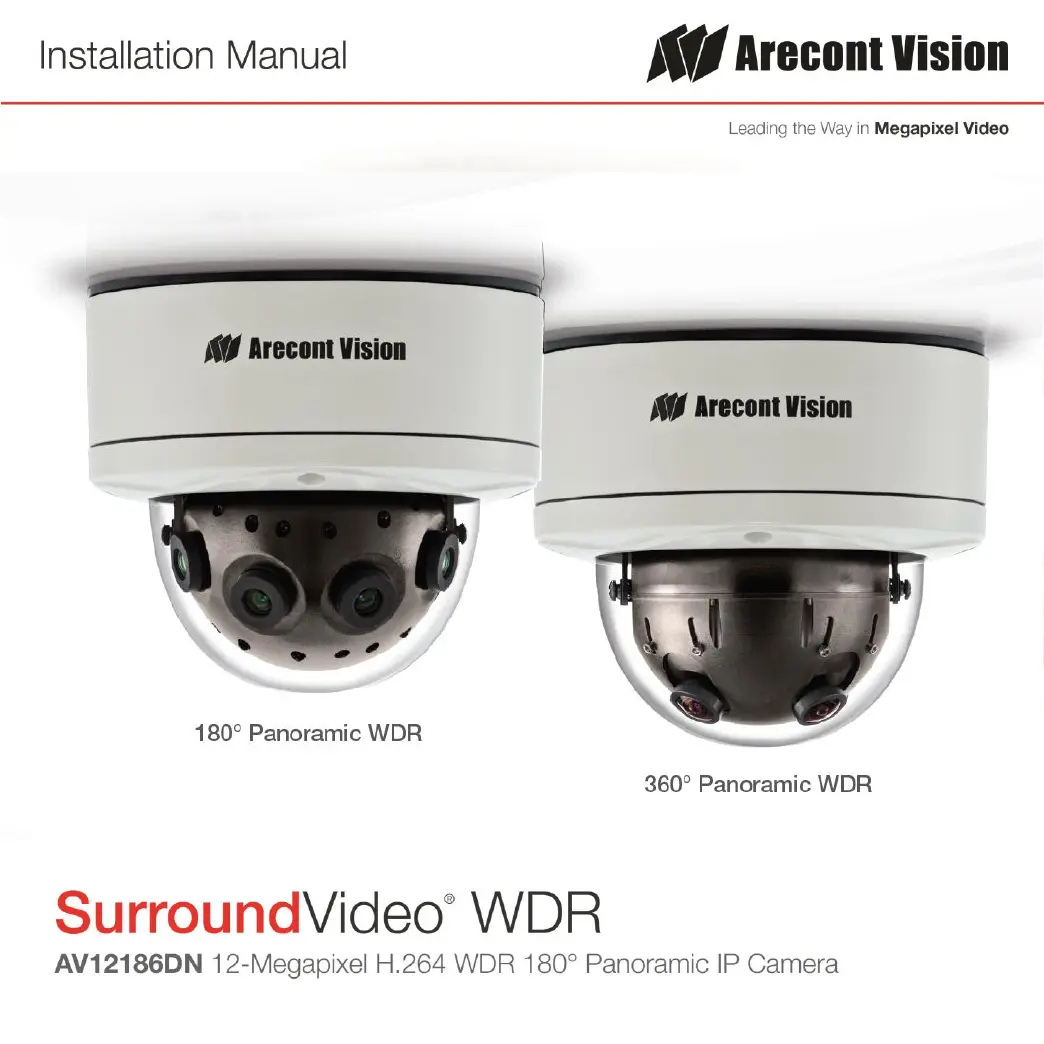

Arecont Vision SurroundVideo
®
WDR Camera Installation Manual
1 | P a g e

Arecont Vision SurroundVideo
®
WDR Camera Installation Manual
1 | P a g e
AV12186DN/AV12366DN SurroundVideo
®
Installation Manual
Inside the box:
A. Arecont Vision AV12186DN camera
B. Mounting template
C. Security L-key
D. 1.5mm Hex L-key
E. Power cable
F. I/O Cable
G. Pack of four (4) screws and four (4)
anchors.
NOTE: Anchors and screws are good to be used for
concrete, wall block and red bricks. Screws by
themselves can be used in wood.
Not included but needed:
#2 Phillips head screw driver
Image 1
How to Mount the Camera
1. Remove camera and hardware from the
box.
2. Using the Mounting template, prepare the
mounting provisions for camera
installation. NOTE: the 19.5mm diameter
hole on the Mounting template is where
the Ethernet cable will be exiting the
AV12186DN camera, align accordingly.
If using the side conduit hole, please see
step 7 below.
3. Using Security L-key, loosen the four (4)
screws securing the dome cover (Image 2).
Remove vandal resistant dome cover. NOTE:
Do not remove screws from the dome cover.
Image 2
RJ-45
POWER
HOLE
A
B
C
D
E
F
G
