Atlona Portable HDMI Signal Generator
with 3D Patterns
AT-HD800
User Manual
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
1. Introduction .................................................. 3
2. Appplications .................................................. 3
3. Package Contents .................................................. 3
4. Features .................................................. 3
.................................................. 4
6. Power Consuming Chart .................................................. 4
7. Operation Controls and Functions .................................................. 4
7.1. Bottom Panel .................................................. 4
7.2. Front Panel .................................................. 5
8. Support Timing Table .................................................. 8
9. Support Pattern Table .................................................. 8
10. Connection and Installation .................................................. 10
11. Safety Information .................................................. 11
12. Warranty .................................................. 12
13. Atlona Product Registration .................................................. 13
TION
Table of Contents
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
TION
INTRODUCTION
PACKAGE CONTENTS:
APPLICATIONS

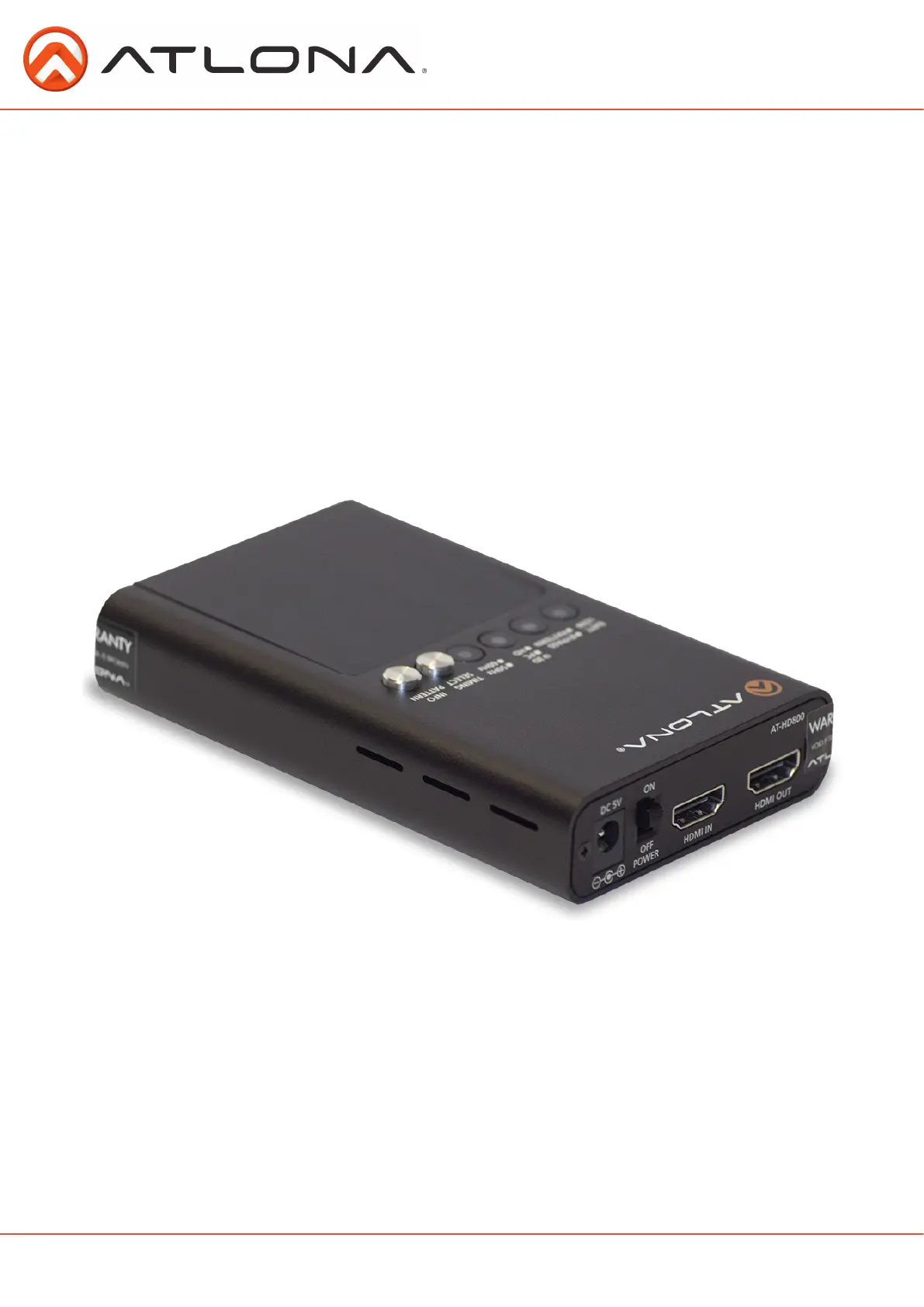

The Atlona HD800 is a Portable HDMI signal generator capable of testing any video resolution or timing
color space issues in any DVI or HDMI video system. The HD800 features 19 test patterns including
3D tests Side by side, Top and Bottom, and Frame packing, a format that is mandatory for all HDMI 1.4
devices. This powerful pocket sized signal generator features an HDMI output as well as an HDMI pass
through to easily switch between test patterns and content from any other digital sources, while also
giving the ability to read the EDID from the input source and displaying it on the display.
• Residential or Commercial Installation. The AT-HD800 is a very handy (must have) tool which helps
to make sure that all cables, extenders, switchers, AV receivers are passing proper signal because the
-
erything is working and HDCP and EDID are passing though.
• Cable, Display, Source Manufactures. Manufactures could be using HD800 in their QC department to
make sure certain frequencies and resolutions are working.
• AT-HD800 Portable HDMI Signal Generator with 3D
• 4 x AA Batteries
• 5V/2.6A DC power adaptor
• Protective Sleeve
• Manual
FEATURES:
• Portable size and battery operated HDMI generator
• Supports 19 Testing Patterns which includes 3 x 3D
• Cable integrity testing ability (see page 4, “7.1 Bottom Panel”)
• Computer Testing resolutions: VGA, SVGA, XGA, SXGA, WUXGA
• HDTV Testing Resolutions: 480i, 576i, 480p, 576p, 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60)
• 3D HDTV Testing: 720p (50/60Hz), 1080p 24Hz
• 2-channel LPCM is always active to test audio 1K -20dB
stamrof oidua dna oediv hcihw( seitilibapac syalpsid eht weiv ot resu swolla ,noitcnuf gnidaeR DIDE •
the display is capable of)
• HDMI Input, designed for reading EDID from both source and display capabilities side by side.
This helps to prevent a lot of issues with installation and also troubleshoot the EDID readings in
applications where a lot of equipment is used.
• The Generator comes with a protective rubber case
• Power supply is included for cases where customer has no batteries
• Last memory function, allows the generator remember the setting the user had prior to powering OFF.
3
