USER MANUAL
AC-EX40-444-KIT
Ultra Slim 40m (70m HD) 4K60 4:4:4
HDR HDBaseT Extender Audio Extraction, EDID
Management, Scaling
1

Table of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
F E A T U R E S ��������������������������������������
I N T H E B O X � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
S P E C I F I C A T I O N S � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
T H E T R A N S M I T T E R � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
I N D I C A T O R T R O U B L E S H O O T I N G L I G H T S - T R A N S M I T T E R �����������
F U N C T I O N S & S E T U P O F T H E T R A N S M I T T E R � � � � � � � � � � � � � � � � � �
S E T T I N G S B U T T O N - T R A N S M I T T E R W I T H O U T D I P S W I T C H E S � � � � � � � � �
T E S T P A T T E R N B U T T O N - T R A N S M I T T E R W I T H D I P S W I T C H E S � � � � � � � �
T H E R E C E I V E R �����������������������������������
I N D I C A T O R T R O U B L E S H O O T I N G L I G H T S - R E C E I V E R � � � � � � � � � � � � � �
S E T T I N G S B U T T O N - R E C E I V E R � � � � � � � � � � � � � � � � � � � � � � � � � �
I R C O N F I G U R A T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
E X T R A C T E D A U D I O - L / R O U T � � � � � � � � � � � � � � � � � � � � � � � � � � �
A U D I O E X T R A C T I O N E X A M P L E � � � � � � � � � � � � � � � � � � � � � � � � � �
T R O U B L E S H O O T I N G � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
B A N D W I D T H C H A R T � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
M A I N T E N A N C E �����������������������������������
D A M A G E R E Q U I R I N G S E R V I C E � � � � � � � � � � � � � � � � � � � � � � � � � �
S U P P O R T ��������������������������������������
W A R R A N T Y �������������������������������������
2

3
Introduction
AVPro Edge presents its rst 18Gbps over copper extender. Using ICT (Invisible
Compression Technology) we have achieved what was thought to be impossible.
We can deliver a virtually lossless high bandwidth 4K HDR signal with support for
all signals up to 18Gbps. Deep Color and HDR Metadata remain intact making the
transmission free of artifacts like banding. Other similar devices will deliver a sub-par
image that has very visible banding and color shifting.
Features
·HDMI 2.0(a/b)
·18Gbps Bandwidth Support (Using ICT)
·Ultra Slim (.47 inch/12mm)
·Up to 4K60 4:4:4 Support
·Full HDR Support (HDR 10 & 12 Bit)
·HDR, HDR10+ and HLG Support
·4K --> 1080P Down-scaling for mixed systems
·EDID Management and EDID emulate
·4K & HD Test Patterns built into TX and Rx for
troubleshooting
·L/R Audio Extraction on TX and Rx
·HDCP 2.2 (and all earlier versions supported)
·CEC Pass Through
·3D Support
·70M (230ft) on 1080P (Cat6a)
·Up to 40m (131ft) on 4K (up to 4K60 4:4:4, HDR)
(Cat6a)
·Bi-directional 48v PoH (Power Over HDBaseT, only
one Power Supply Needed)
·I-Pass Feature for control system “pass-through”
·3-20v protection circuit built in for safe IR transport
·Bi Directional RS232 Transport
·LED Status, Link, Power indication lights
·Use single UTP/STP LAN cable (CAT-6A) with
substitute HDMI cable to achieve long distance
transmission.
·Supports uncompressed PCM 2- Ch., LPCM 5.1 &
7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-
Master Audio, Atmos on HDMI
·ESD protection circuitry (Inputs & Outputs) to 7KV
·Can Cascade

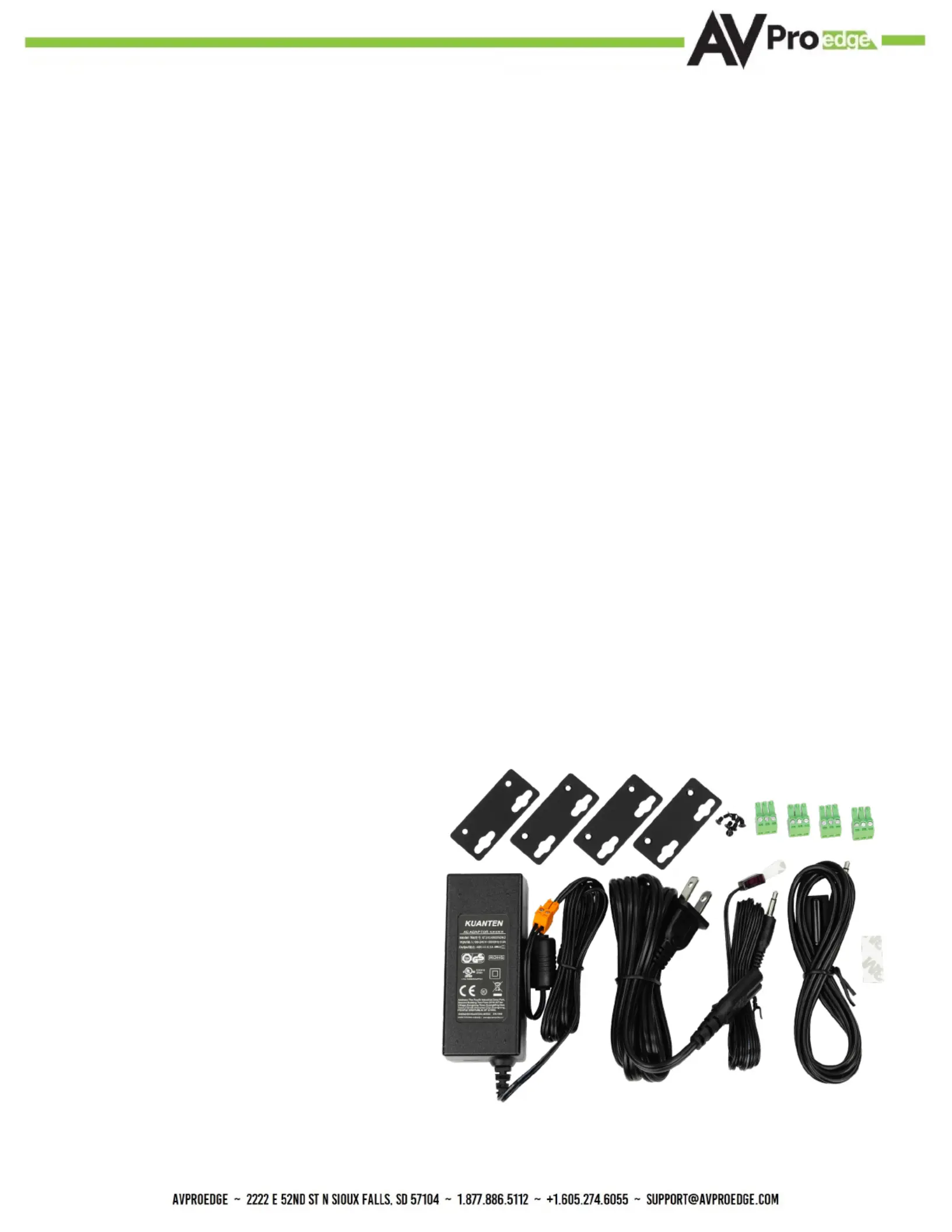

In The Box

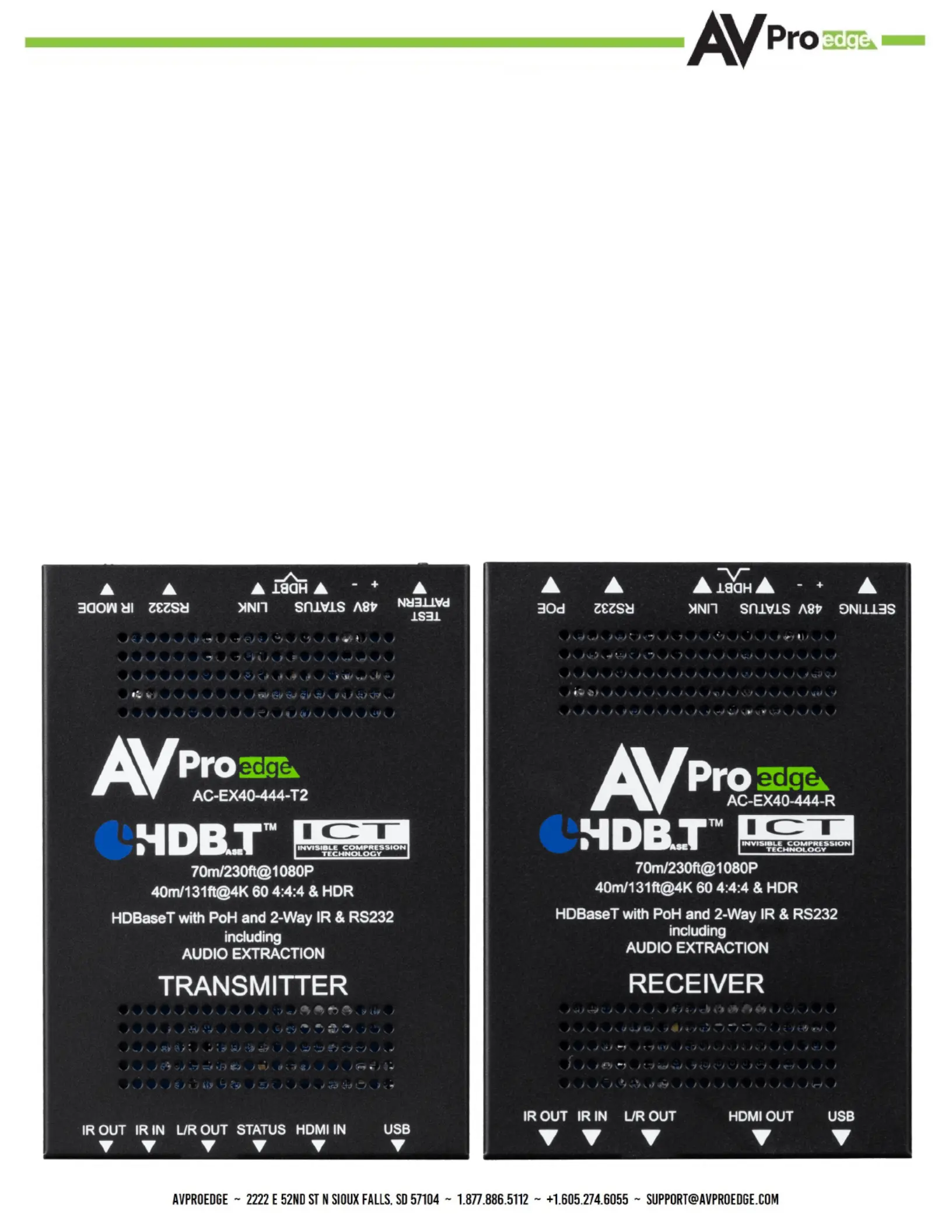

·AC-EX40-444-T2 (Transmitter)
·AC-EX40-444-R (Receiver)
·48V Power Supply (One supplied) Power
either TX or RX
·1 x IR TX Unit
·1 x IR Rx Unit
·4x 3 Pin Terminal blocks for Audio and
RS232 Ports
·Mounting Brackets
*NOTE: Optional 3Pin to Stereo Audio Cables available for purchase AC-CABLE-3PIN-2CH
