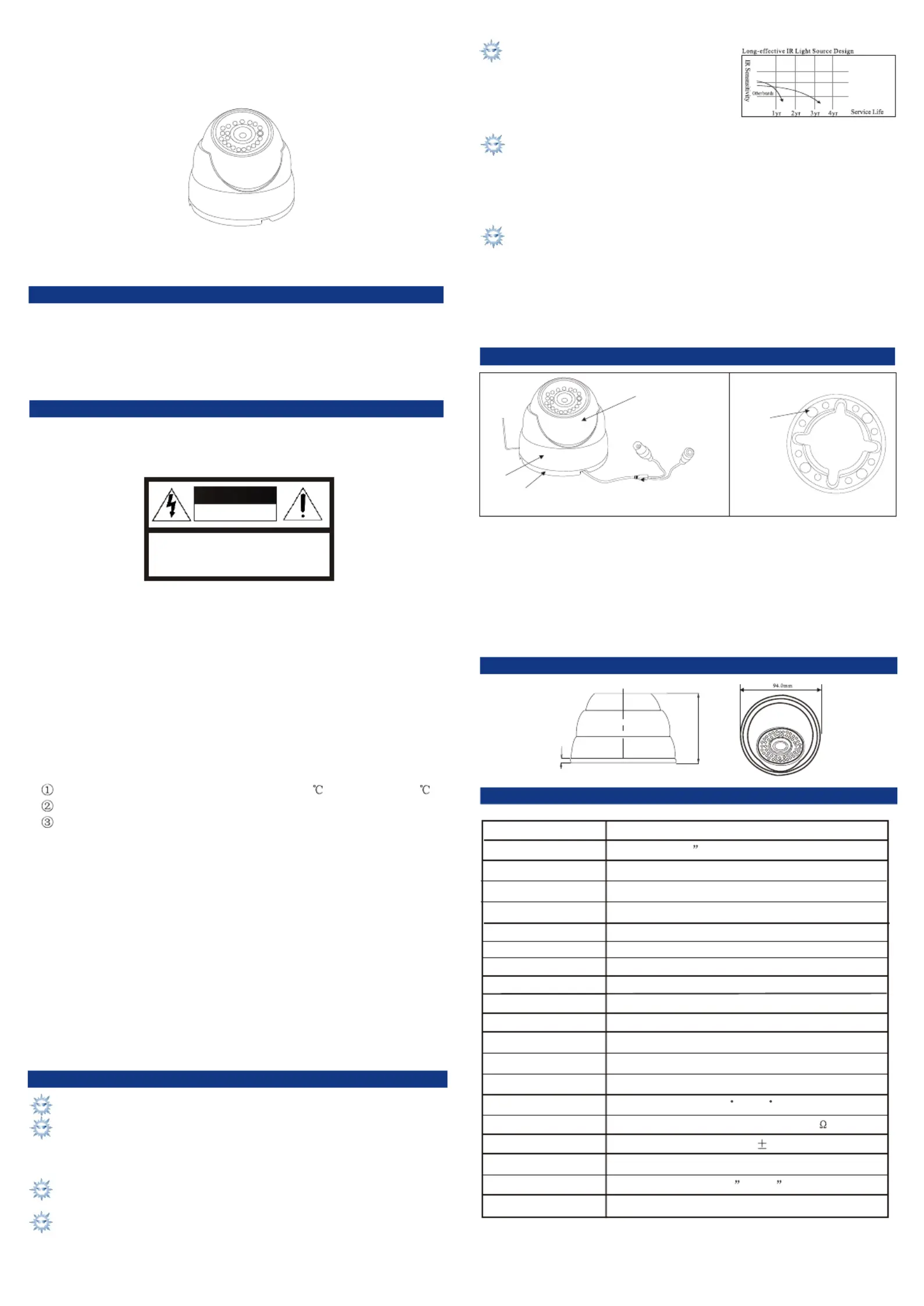

Seite 1/1

AV665SCW28 is DC12V

Color IR Dome Camera

User Manuel

70.0m m

5.0mm

DESCRIPTION

ATTENTION

In order to output standard video signal under different illumination

conditions,The amplifier gain need to adjust automatically in large

scope.it can increase the sensitivity automatically when low light and

enhance the signal output to have a clear bright image.

ATW is the cameras' reversion of the white objects, it can adjust the room

temperature and outside temperature.when the temperature change, the

human eye can see that white is white,This is because human eye can adapt

to the changes of the color temperature, but the camera does not perform

well equally, when Light occurs , the white color will change to others after

shooting. White Balance technology can correct this problem

SPECIFICATION

DIMENTION(MM)

High resolution

Up to 600TVL high resolution.

FEATURES

Adopt high performance sensor, the image is clear, exquisite

PARTS INSTRUCTION AND INSTALLATION

Video Cable

Power Cable

1. Take out the fixing screws on the lock base by the allen wrench in the

accessory bag. (Another way: hold the base plate and turn it in

anti-clockwise direction)

2. Separate the base plate from the lock base.

3. Use screws to fix the base plate to the needed place.

4. Then put the sphere and the lock base to where they belong and screw

up the fixing screws.

Base Plate

Lock Base

Wrench

*Specifications subject to change without notice.

AV KL - 4 306- R 1 0

This IR Dome Camera adopt high sensitivity sensor and advanced circuit

design, the resolution up to 600TVL, support automatic white balance,

high S/N Ratio, clear picture, with the function of color to black

automatically, with IR-CUT filter design, easily have 24 hours day and

night.

Thank you for your purchasing this product. Before attempting to connect

or operate this product, please read these instructions carefully and save

this manual for future use.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL

4. Do not expose the camera to rain or moisture, or try to operate it in wet

areas. Do not place the camera in the following locations:

Locations where temperature is lower than -10 or higher than 50 ;

Locations where humidity is higher than 95%;

Locations where there are large amounts of water vapor and steam.

Use the Appropriate Power Supply

The input power for Be sure to connect it to

the appropriate power. Wrong connection may cause malfunction

and/or damage to the video camera.

Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws or covers. There are no

user serviceable parts inside. Ask a qualified service person for servicing.

Handle the camera with care.

Do not abuse the camera. Avoid striking, shaking, etc. The camera could

be damaged by improper handling or storage.

5. Do note use strong or abrasive detergents when cleaning the camera

body. Use a dry cloth to clean the camera when dirty. In case the dirt is

hard to remove. Use a mild detergent and wipe gently.

Clean the sensor faceplate with care.

When cleaning the sensor panel, do not use strong or abrasive detergents.

Use a piece of lens tissue or cotton tipped applicator and ethanol.

Do not attempt to aim the camera at the sun

Do not attempt to aim the camera at the sun or other extremely bright

objects that causes mear to appear irrespective of whether the camera is

operating or not. This can damage the sensor.

Do not put the camera in a place with interference.

When this camera is installed near the equipment like wireless

communication device which emits strong electromagnetic field, some

irregularity such as noise on monitor screen may happen.

S/N Ratio definition: the ratio between signal voltage and noise

voltage, the higher of the ratio, the less interference of the noise,

and the image is more clearer.

High S/N Ratio.

Long-life IR LEDS Design

High-performance IR LED,whose

brightness is several times higher and

service life longer than an ordinary

LED's with m IR range. 22

Auto color to black function

Day and Night Monitoring daytime with enough light, color image,

at night, low light, change to black image automatically to improve

the sensitivity and picture quality.

Automatic gain control (AGC)

Auto White Balance

TV System

Sync System

White Balance

Gain Control

S/N Ratio

Electronic Shutter

Video Output

Gamma Correction

NTSC

Internal

AUTO

>50dB

Auto(1/50~1/12,000 second)

Composite BNC 1.0V p-p 75

Model No

0.45

2.8mm

Lens

Operation Temp

14 F-122 F

Dimension

Power

Weight

Mini Illumination

DC12V 1V

3.1 x 2.3

1.07lbs

0Lux when IR on

Image Sensor

Resolution

1/3 High Sensitivity Sensor

600TVL

IR Light

20PCS, ft IR distance22m/75

Weather Proof rate

Ip66

Consumption

IR off(80MA,0.98W),IR on(310MA,3.81W)

AV665SCW28

Screw Hole

SSKHUH
