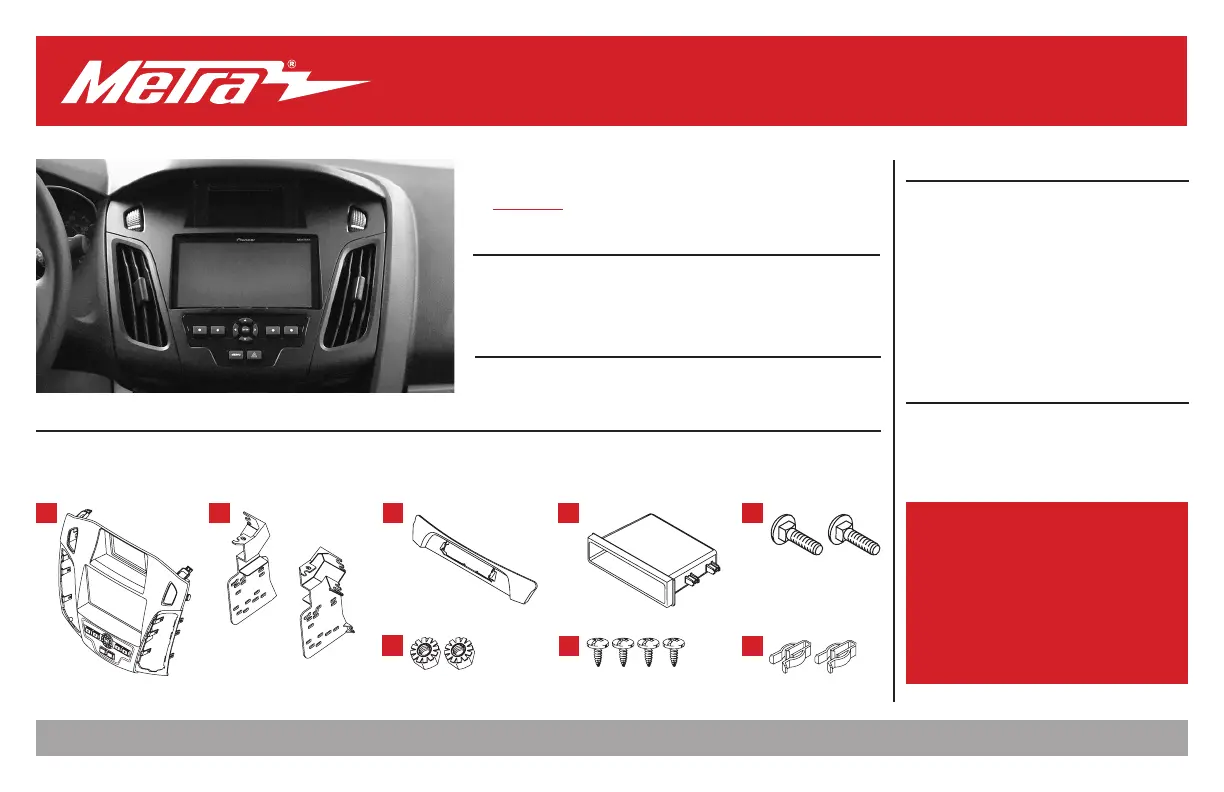

Metra. The World’s Best Kits.®Metraonline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 10/24/22 INST99-5843B
I N S TA L L AT I O N I N S T R U C T I O N S
99-5843B
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Integrated controls for info center
• Includes Axxess interface and wiring
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Passenger airbag light panel • D) Pocket • E) (2) Carriage bolts • F) (2) Keps nuts
• G) (4) #8 x 3/8” Phillips screws • H) (2) Panel clips • I) Axxess interface and harnesses (not shown) • J) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench • T-25 Torx driver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess interface installation .............................5-11
Final assembly .......................................................8
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
A B C
F G
D E
Ford Focus (with 4.2” screen) 2015-2018
H
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com
1. Unclip, unplug, and remove the trim
panel with the passenger airbag light
in it. Keep the airbag light for Kit
Preparation. (Figure A)
2. Unclip and remove the trim panel
around the shifter panel. (Figure B)
3. Remove (3) Phillips screws securing
the shifter panel, then unclip and slide
the shifter panel toward the rear of the
vehicle. (Figure C)
DASH DISASSEMBLY
2
4. Remove (2) T-25 Torx screws from the
bottom of the radio panel. (Figure D)
5. Unclip, unplug and remove the radio
control panel including the A/C vents.
(Figure E)
6. Remove (2) T-25 Torx screws securing
the radio, and (4) T-25 Torx screws
securing the display and bracket, and
then unplug and remove. (Figure F)
Continue to Kit Preparation
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
REV. 10/24/2022 INST99-5843B 3
1. Unclip and remove the A/C vents from
the factory radio panel. (Figure A)
2. Remove the factory display from the
factory bracket assembly. (Figure B)
3. Cut and remove the (2) tabs on the
bottom of the factory display. (Figure C)
4. Clip the A/C vents, removed from Step 1,
onto the
radio trim panel. (Figure D)
5. Install the (2) , and the panel clips
factory passenger airbag light, to the
passenger airbag light panel. (Figure E)
Continue to Kit Assembly
(Figure A)
(Figure B)
(Figure C)
Detail
(Figure E)
(Figure D)
KIT PREPARATION
