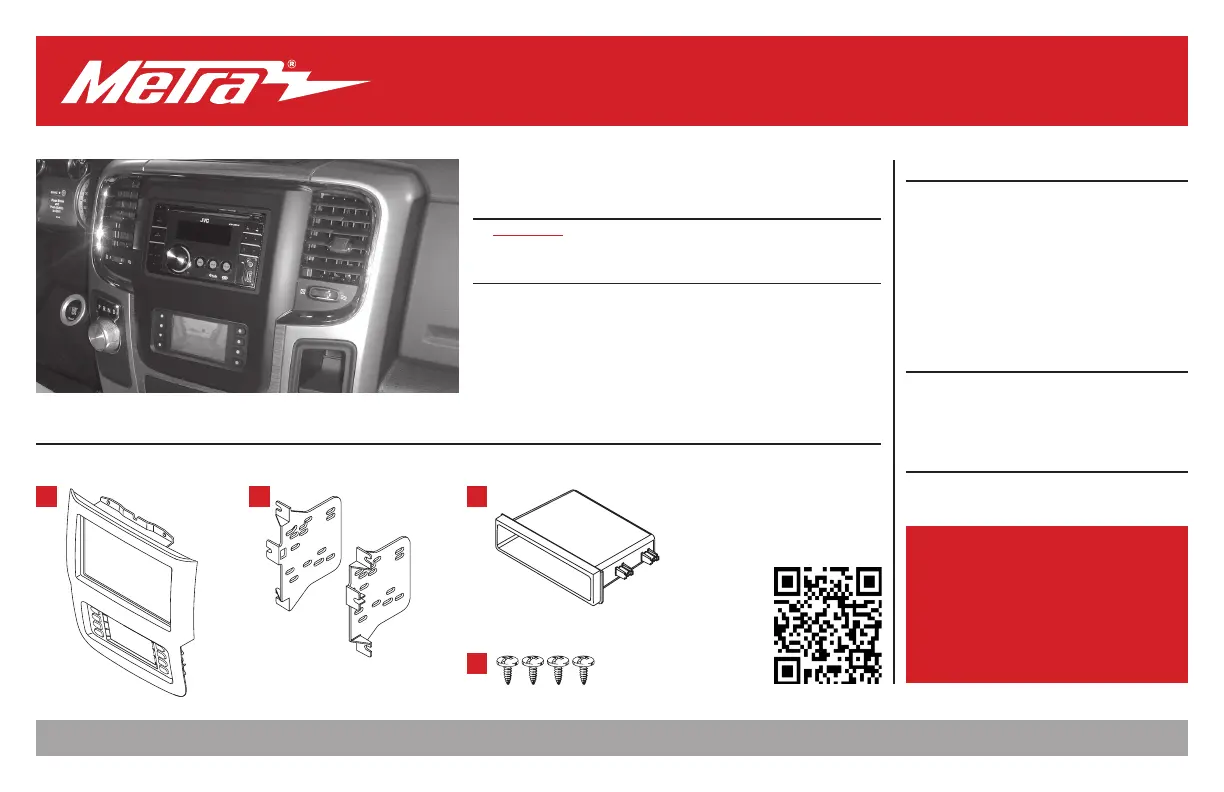

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 11/16/23 INST99-6527B
I N S TA L L AT I O N I N S T R U C T I O N S
99-6527B
Patent # 10,579,232
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) Phillips screws
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Painted black
Note: Reference the Troubleshooting section (p 15) for factory items known
to be no longer functional.
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly
–ISO DIN radio provision with pocket 5 ..................
–ISO DDIN radio provision 5 ....................................
Axxess Interface Installation 6-15 ...........................
Final Assembly 10 .....................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Ram 1500/2500/3500, Chassis Cab 3500 /
4500 / 5500 (with 5" or 8" touchscreen) 2013-2017
A B C
D
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
Product Info
386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY
2
1. Remove the rubber tray liner inside the
tray at the top center of the dash, then
remove (2) Torx T-20 screws exposed.
(Figure A)
2. Remove the rubber tray liner from
inside the small pocket on the
passenger side of the center dash
panel, then remove (1) Torx T-20 screw
exposed. (Figure B)
(Figure C)
3. For models with a center console:
a. Remove the rubber liner from the
storage tray in front of the center
console, then remove (2) Phillips
screws exposed. (Figure C)
b. Remove the rubber liner from the
middle of the center console, then
remove (1) Phillips screw exposed.
(Figure C)
c. Remove the rubber liner from the
rear of the center console, then
remove (2) Phillips screws exposed.
(Figure C)
d. Unsnap and remove the top of the
center console.
Continued on the next page
(Figure B)
(Figure A)
REV. 11/16/23 INST99-6527B 3
DASH DISASSEMBLY
3
4. Unsnap and remove the entire center
dash panel. (Figure D)
5. Remove (4) 9/32” screws securing the
radio/display screen. Slide the screen
out, then unplug & remove. (Figure E)
6. The factory rear support will need to be
cut or removed to allow space for the
aftermarket radio. Different variations
of this support may require additional
cutting. (Figure F)
Continue to Kit Preparation
(Figure D) (Figure E) (Figure F)
Remove shaded area
