AX-AB-LX3

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 7/15/20 INSTAX-AB-LX3

Attention!Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Amplifier Location & Connections

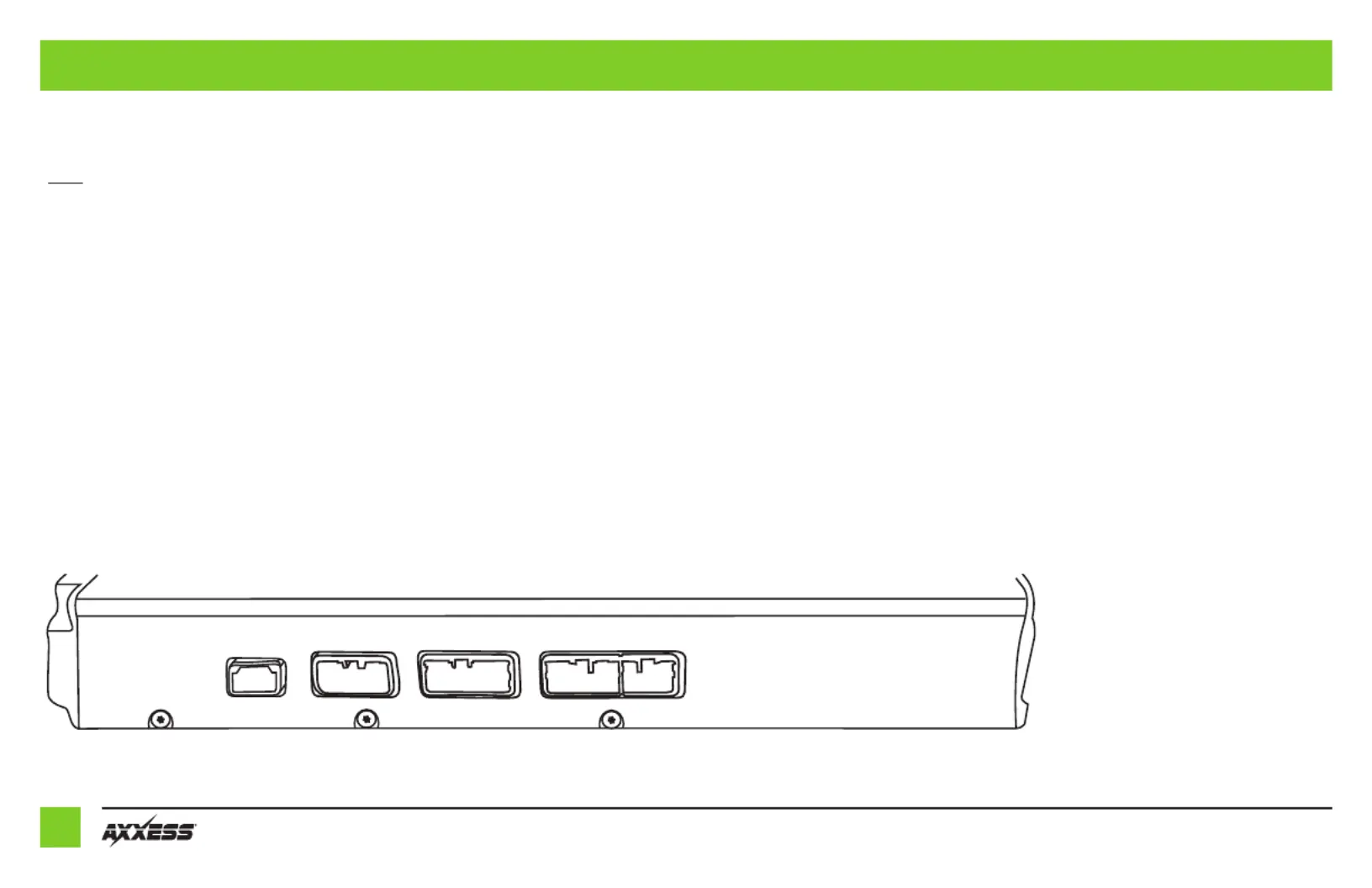

-Convertible

With

Mark Levinson .........................2

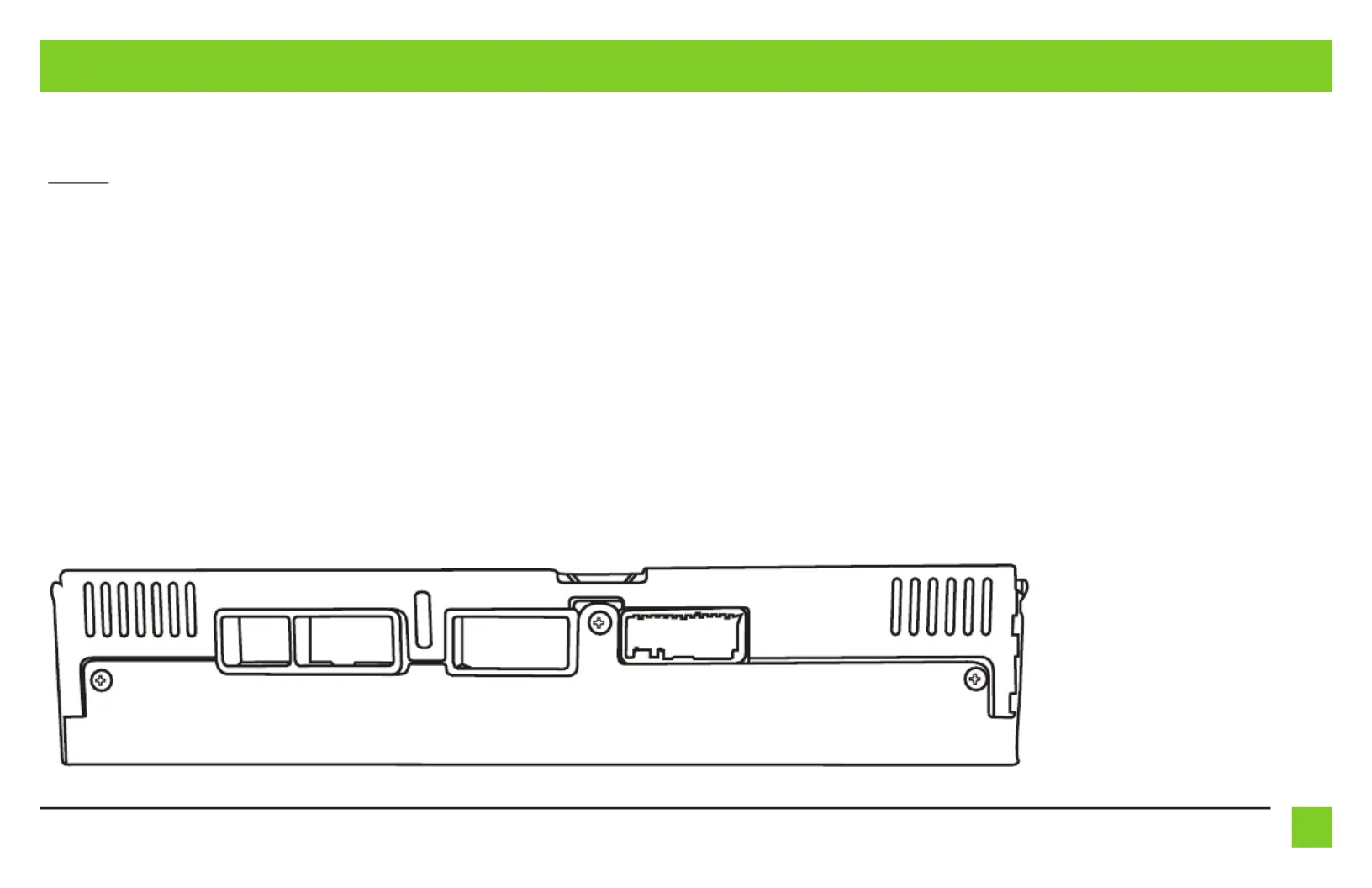

-Convertible

Without

Mark Levinson ...................3

-Sedan

With

Mark Levinson ..................................4

-Sedan

Without

Mark Levinson ............................5

Lexus IS Series

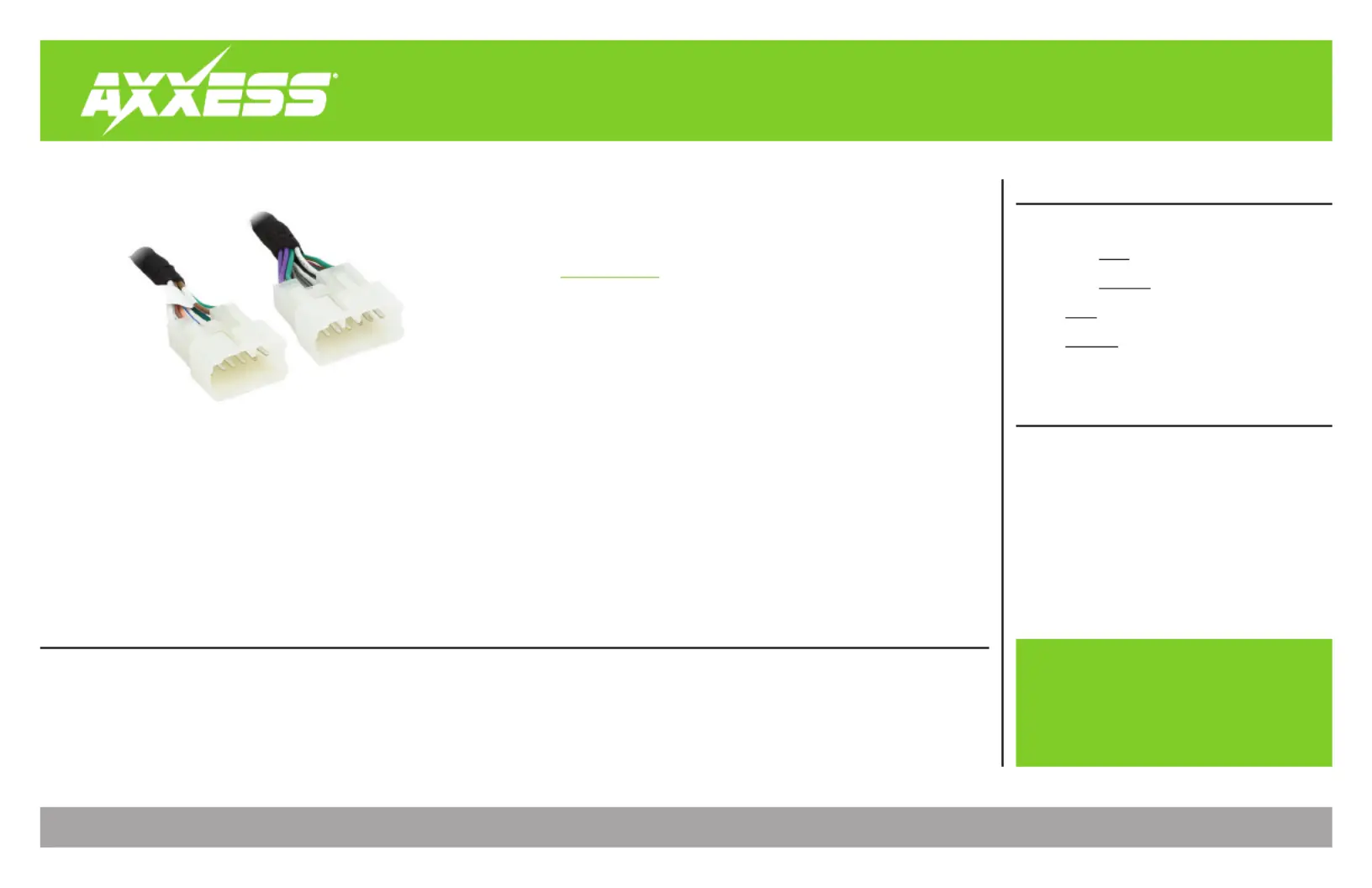

Amplifier Bypass Harness

2010-2015

Factory amp must stay plugged into vehicle in order for your factory

HVAC to work. When using the bypass harness only unplug connectors

that correspond with the amp bypass being used. All other remaining

plugs must stay plugged in with amp and remain in vehicle.

Refer to the following pages for the vehicle specific instructions for

wiring connections. Wiring connections vary per amplifier design.

If it’s uncertain whether the vehicle contains a specific speaker or not,

test the wires with a tone generator, or check to see if the factory

wires are populated on the vehicle side. Alternatively, the wires can

be tested for impedance with a multimeter.

APPLICATIONS

Lexus

IS250 2010-2013

IS350 2010-2013

IS250C 2010-2015

IS350C 2010-2015

Note: For navigation models 2013-up, use part number AX-AB-LX1

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle specific applications
