AXDIS-HK4
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/22/24 INSTAXDIS-HK4
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter
• Zip ties • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections 2-3 ........................................................
Installation 4 .............................................................
Programming 5 .........................................................
Audio Level Adjustment 6 .......................................
Steering Wheel Control Settings (SWC)
LED Feedback 7 .......................................................
Changing Radio Type 8 ..........................................
Remapping the SWC Buttons 9 .............................
Dual Assignment (Long Button Press) 10 .............
Troubleshooting.................................................... 11
Hyundai/Kia Data Interface with SWC 2010-2013
APPLICATIONS
• Designed for amplified models
• Provides NAV outputs (park brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains the factory AUX-IN jack
• Retains the factory backup camera
• Retains balance
• Micro-B USB updatable
Hyundai
Tucson * 2010-2013 .............................
Kia
Sorento* 2011-2013 .............................

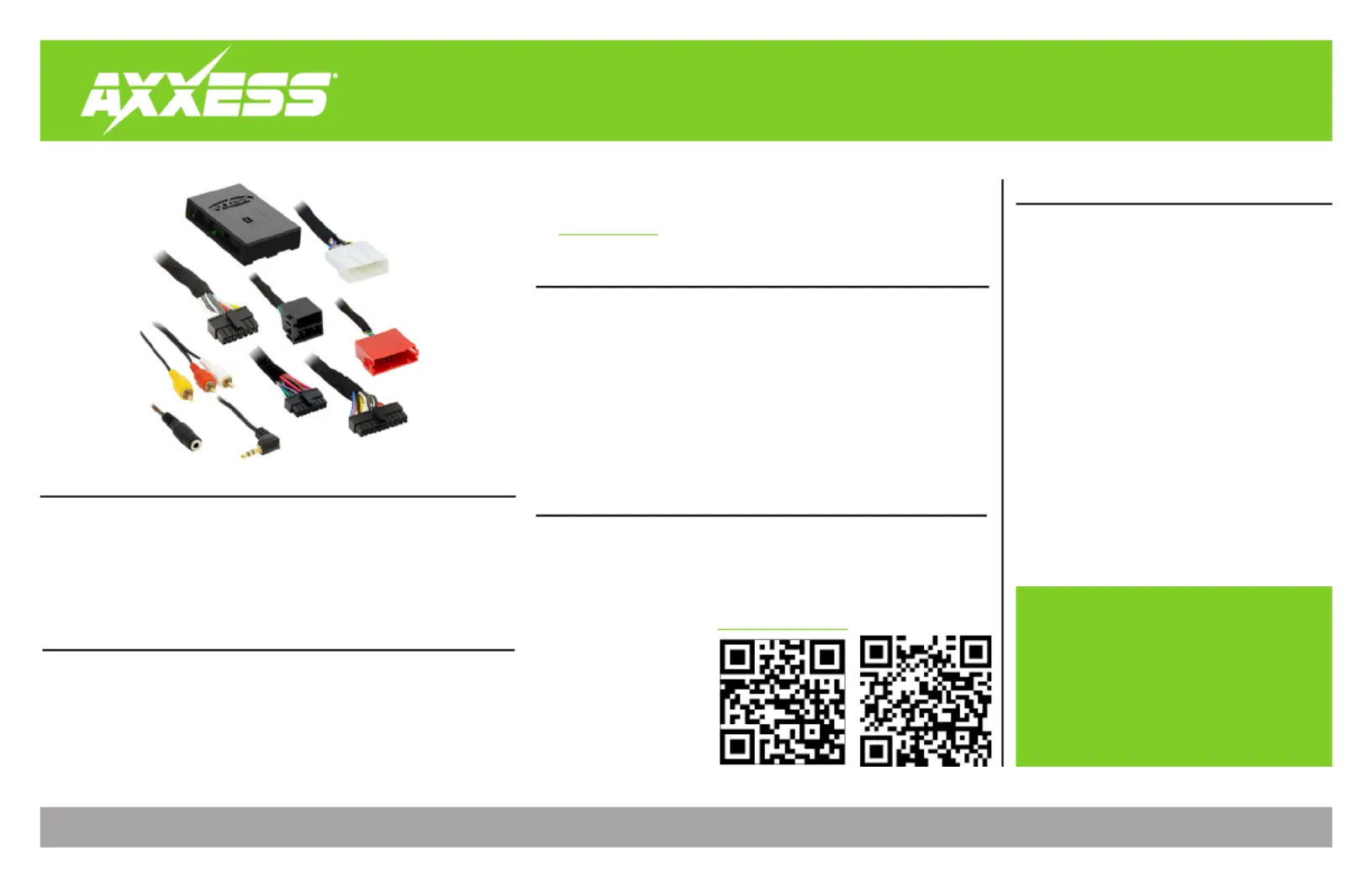

• AXDIS-HK4 interface • AXDIS-HK4 harness
• AXSP-HK interface • 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
Visit for more detailed information about the product and up-to-date AxxessInterfaces.com
vehicle specific applications
* With NAV
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter
your Year, Make, Model
vehicle into the vehicle fit
guide and look for the Dash
Kit Installation Instructions.
Product Info
www.MetraOnline.com
2
CONNECTIONS
From the 16-pin Harness with Stripped Leads to the Aftermarket Radio:
• Connect the wire to the accessory wire.Red
• Connect the wire to the amp turn-on wire.Blue/White
• Connect the wire to the right front positive speaker output.Gray
• Connect the wire to the right front negative speaker output.Gray/Black
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
The following (1) wire is only for a multimedia/navigation radio that requires this wire.
• Connect the wire to the parking brake wire.Light Green
• Tape off and disregard the following (8) wires, they will not be used in this application:
Blue/Pink Brown Green Green/Black Green/Purple Orange/White Purple Purple/Black, , , , , , ,
From the AXDIS-HK4 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the wire to the battery wire.Yellow
• Connect the wire to the power antenna wire.Blue
• If the aftermarket radio has an illumination wire, connect the wire to it.Orange
The following (2) wires are only for a multimedia/navigation radio that requires these wires.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the wire to the reverse wire.Green/Purple
• If the factory AUX-IN jack is desired to be retained, connect the & RCA jacks to Red White
the audio AUX-IN jacks.
• Connect the RCA jack to the backup camera input.Yellow
3
REV. 11/22/24 INSTAXDIS-HK4
3.5mm Jack Steering Wheel Control Retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel control.
•
For the radios listed below: Connect the female 3.5mm connector with stripped leads, to the
male 3.5mm SWC jack from the AXDIS-HK4 harness. Any remaining wires tape off and disregard.
• Eclipse: Brown Brown/White Connect the steering wheel control wire, normally , to the
wire from the connector. Then connect the remaining steering wheel control wire,
normally , to the wire from the connector.Brown/White Brown
• Metra OE: (Gray) Brown Connect the steering wheel control Key 1 wire to the wire.
• Kenwood or select JVC with a steering wheel control wire: Blue/Yellow Connect the
wire to the wire.Brown
If the radio auto detects as a JVC, manually set the radio type to Note: Kenwood
Kenwood Changing Radio Type. See the instructions under .
• XITE: Brown Connect the steering wheel control SWC-2 wire from the radio to the wire.
• Parrot Asteroid Smart or Tablet:
Connect the 3.5mm jack to the AXSWCH-PAR (sold
separately). Then connect the 4-pin connector from the AXSWCH-PAR to the radio
.
The radio must be updated to rev. 2.1.4 or higher software.Note:
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as
Key-A or SWC-1, to the wire from the connector. Then connect the remaining Brown
steering wheel control wire, referred to as Key-B or SWC-2, to the wire Brown/White
from the connector. If the radio comes with a third wire for ground, disregard this wire.
CONNECTIONS (CONT.)
Note:
After the interface has been programmed to the vehicle, refer to the manual provided with the
radio for assigning the SWC buttons. Contact the radio manufacturer for more information
.
• For all other radios: Connect the 3.5mm jack from the
AXDIS-HK4 harness
to the jack on
the radio designated for an external steering wheel control interface. Please refer to the
aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
