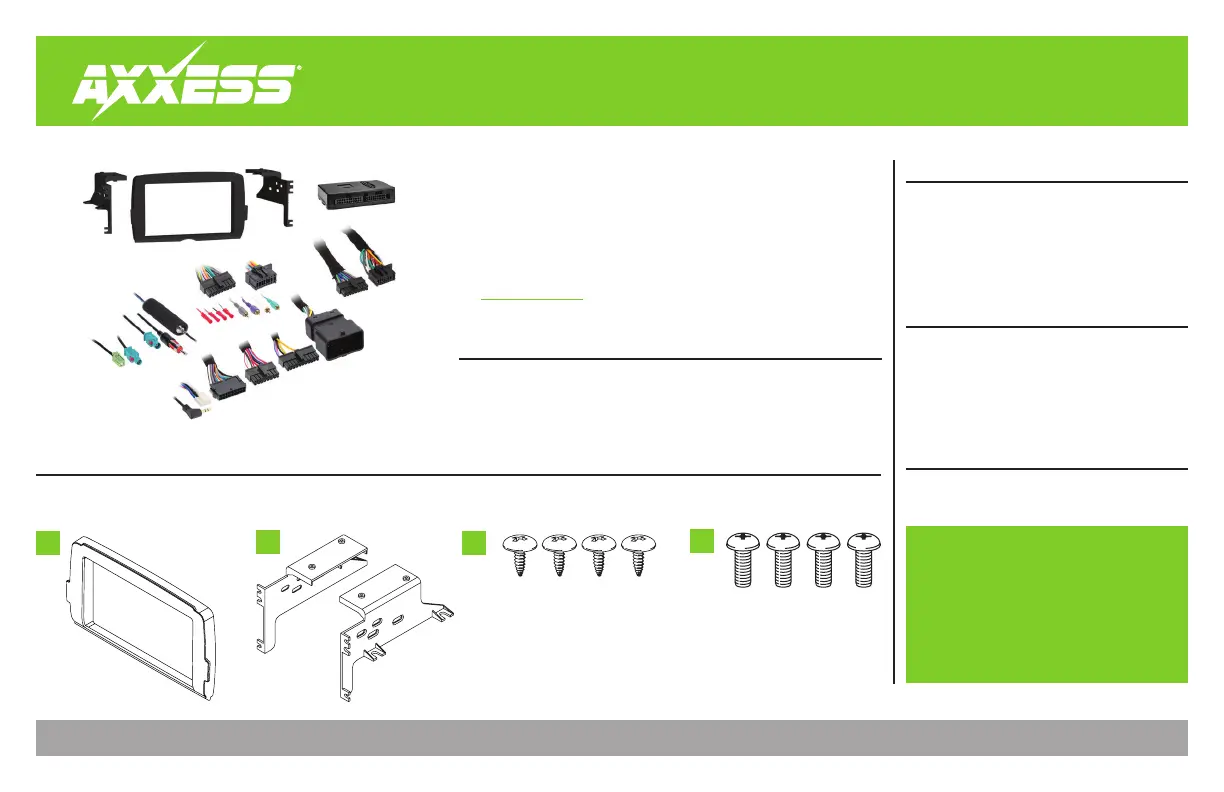

AXPIO-HD2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INSTAXPIO-HD2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TABLE OF CONTENTS
Fairing Disassembly 2-3 ..........................................
Connections 4-6 ........................................................
Kit Assembly 7 ..........................................................
Radio Operations 8-9 ...............................................
KIT FEATURES
• Designed for Pioneer DMH-WC5700NEX receivers
• Complete plug-n-play installation
• Includes dash kit with Axxess interface and vehicle-specific T-harness
(cont. on page 2)
* Non-amplified models only
Visit for more detailed information about the product and up-to-dateAxxessInterfaces.com
vehicle specific applications.
WIRING & ANTENNA CONNECTIONS (sold separately)
•
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx screwdrivers • Allen wrenches
Harley-Davidson Street Glide, Electra Glide,
Ultra, and Limited Models 2014-Up*
Road Glide 2015-Up*
KIT COMPONENTS
• A) Radio housing • B) Radio brackets • C) #8 x 3/8" Phillips screws (4) • D) #10-32 x 1/2" Phillips steel machine screws (4)
Not Shown: Radio Interface, LD-HD-PIO, AD-EU1, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA
ABCD
Visit for up-to-date AxxessInterfaces.com
vehicle specific applications.
2
KIT FEATURES (cont. from cover)
KIT FEATURES
(CONT.)
• Designed for non-amplified motorcycles
• Allows for the adjustment of ETMIS through the Pioneer radio
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Retains audio controls on the handlebars
• Micro “B” USB updatable
• Polished gloss surface to match the factory finish
3
REV. 7/30/24 INSTAXPIO-HD2
FAIRING DISASSEMBLY
Harley Davidson Street Glide, Electra Glide,
Ultra, and Limited models 2014-up
1. Remove (4) T-27 Torx screws from the
inner fairing. (Figure A)
2. With a firm grip on the windshield,
remove (3) T-27 Torx screws. remove
the windshield, the outer fairing wil
lalso be loosened. (Figure B)
3. Remove the outer fairing, unplugging
the headlight. (Figure C)
4. Remove (2) T-27 Torx screws to remove
the fairing
vent, and then remove the
vent. (Figure D)
Continued on next page
(Figure C)(Figure A)
(Figure D)(Figure B)
