I N S TA L L AT I O N I N S T R U C T I O N S
AXSUB-GM2
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/5/24 AXSUB-GM2
• AXSUB-GM2 interface
• AXDSPX-GM2 vehicle T-harness (LD-DSP-GMLAN10)
• Bass knob (LD-BASSKNOB)
NOTE: SELECT VECHILES EQUIPPED WITH RPO: IOB/IOA
INTERFACE FEATURES
GM (Add a SUB) Interface
2016-2019
Visit AxxessInterfaces.com for more detailed informaon
about the product and up-to-date vehicle specic applicaons
INTERFACE COMPONENTS
•
Can be used in non-amplified models only
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Micro-B USB updatable
www.AxxessInterfaces.com
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
If the vehicle is equipped with Active noise
cancelation (ANC) microphones, they will
need to be bypassed. Please refer to www.
Axxessinterfaces.com for ANC bypass
harnesses offered for select
vehicles.
TOOLS REQUIRED
TABLE OF CONTENTS
Connections.................................................................2
Programming..............................................................3
Testing..........................................................................3
Specifications...............................................................3
Troubleshooting..........................................................4
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. nsure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting
the battery or cycling the ignition to test this
product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
2

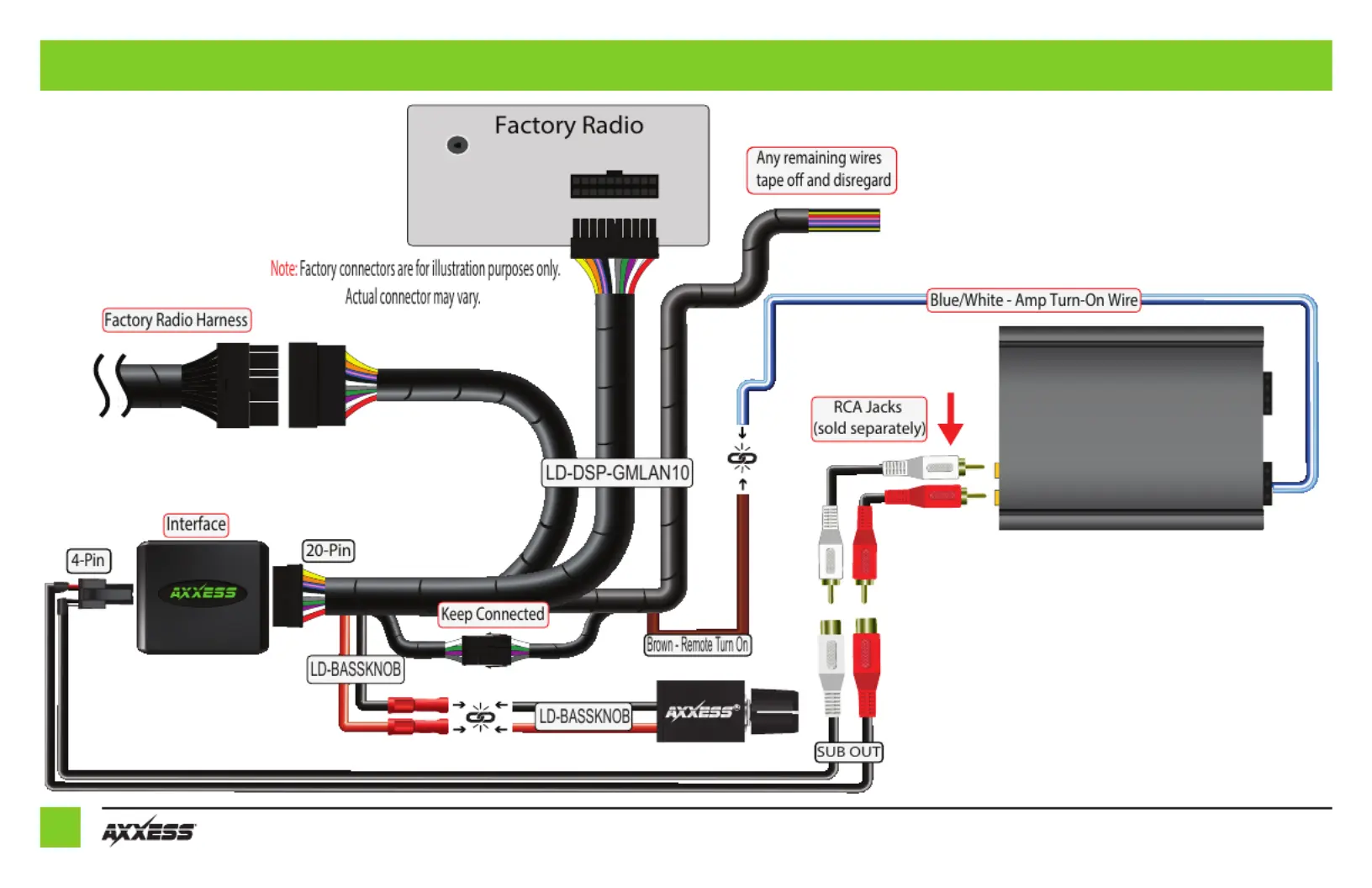

CONNECTIONS
NOTE: SELECT VECHILES EQUIPPED WITH RPO: IOB/IOA
3
PROGRAMMING
REV. 3/5/24 AXSUB-GM2
TESTING
1. With everything plugged in Turn on ignition and make sure audio volume is turned all the
way down. Also ensure that your LD-BASSKNOB is turned all the way to the left.
2. Increase audio volume to desired listening level
3. Wait for aftermarket amp to turn on (up to 15 seconds)
4. You are now programmed
1. Turn on audio and increase volume to desired level
2. Rotate the LD-BASSKNOB to the right to increase SUB level. Turn to the left to decrease
SUB level
NOTE: Lowering the bass or volume knob completely will deactivate the aftermarket
amplifier. Similarly, muting the radio will also result in turning off the aftermarket amplifier.
SPECIFICATIONS
•
2 Channel non-fading 5V RMS output
• Fixed low pass frequency of 234Hz
• 250mA remote turn on output
