AX-PS

AX-PS

INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/06/25 INSTAX-PS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/06/25 INSTAX-PS

AX-PS

A

B

-

+

A

B

AX-PS

A

B

-

+

AX-PS

A

B

-

+

A

B

AX-PS

A

B

-

+

INTERFACE COMPONENTS

• AX-PS Timer with wiring harness

INTERFACE COMPONENTS

• AX-PS Timer with wiring harness

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink

• Tape

• Wire cutter

• Zip-ties

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink

• Tape

• Wire cutter

• Zip-ties

Universal-Amp Turn On/Off Timer

Universal-Amp Turn On/Off Timer

SETUP/SETTINGS

(Timer settings 0-30 seconds*)

*Turn-On Delay

•

Press left button (A) to enter the Turn-On delay setting,

the Red LED flashes.

•

Press left (A) and right (B) button to set up the delay, up to 30 seconds. If there is

no action for 3 seconds, it will return to display mode.

*Turn-Off Delay

• Press right button (B) to enter into Turn-Off Delay setting, the Green LED flashes.

• Press left

(A)

and right (B) button to set up the delay up to 30 seconds. If there is

no action for 3 seconds, it will return to display mode.

Note: Display will turn off after 3 minutes on inactivity. To turn on the display press

either the A or B button

SETUP/SETTINGS

(Timer settings 0-30 seconds*)

*Turn-On Delay

•

Press left button (A) to enter the Turn-On delay setting,

the Red LED flashes.

•

Press left (A) and right (B) button to set up the delay, up to 30 seconds. If there is

no action for 3 seconds, it will return to display mode.

*Turn-Off Delay

• Press right button (B) to enter into Turn-Off Delay setting, the Green LED flashes.

• Press left

(A)

and right (B) button to set up the delay up to 30 seconds. If there is

no action for 3 seconds, it will return to display mode.

Note: Display will turn off after 3 minutes on inactivity. To turn on the display press

either the A or B button

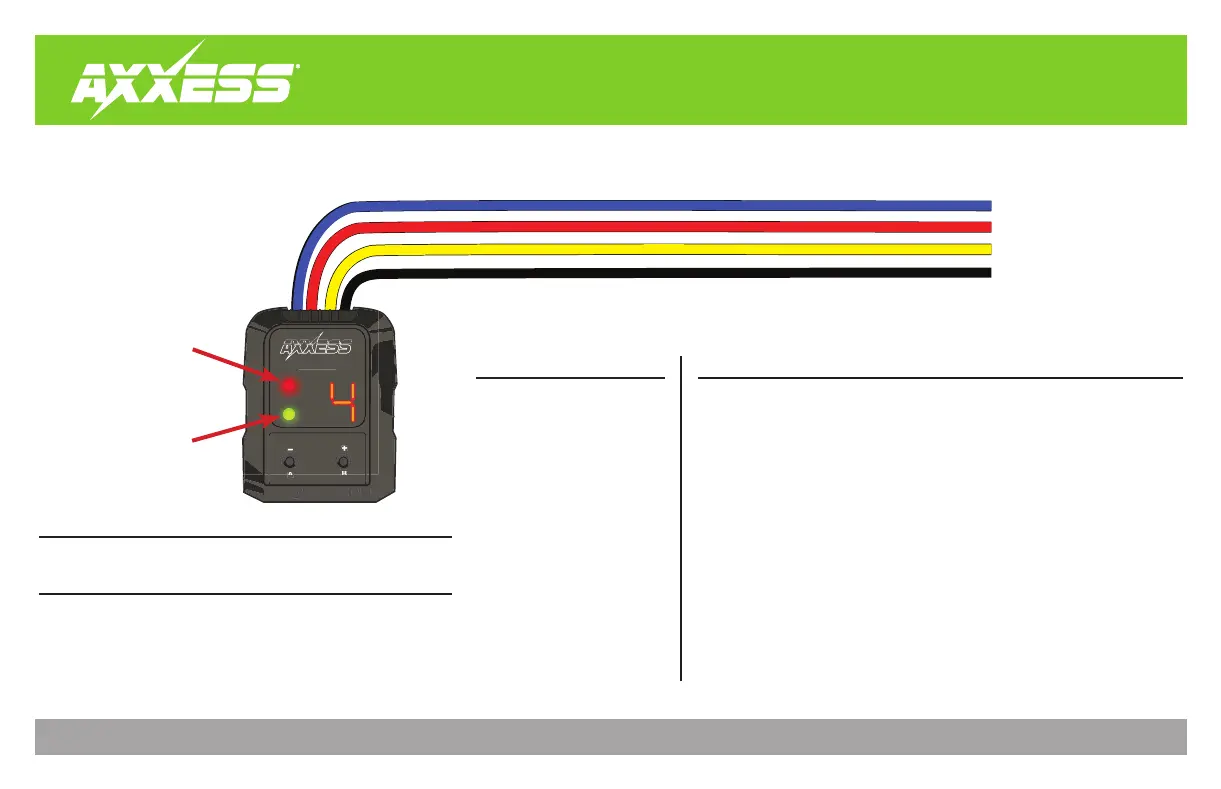

Blue: Remote turn on output

Red: Remote turn on input

Yellow: 12v Constant

Black: Ground

Blue: Remote turn on output

Red: Remote turn on input

Yellow: 12v Constant

Black: Ground

SPECIFICATIONS

• Programmable amplifier turn

on/off pop eliminator

• Programmable turn on/off

delay up to 30 seconds

• Working Voltage from 10 volts

to 16 volts

• Trigger output current: 500mA

• Trigger input current: 1mA

• 4-wire installation

SPECIFICATIONS

• Programmable amplifier turn

on/off pop eliminator

• Programmable turn on/off

delay up to 30 seconds

• Working Voltage from 10 volts

to 16 volts

• Trigger output current: 500mA

• Trigger input current: 1mA

• 4-wire installation

TURN-ON DELAY (RED LED)

TURN-ON DELAY (RED LED)

TURN-OFF DELAY (GREEN LED)

TURN-OFF DELAY (GREEN LED)
