CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

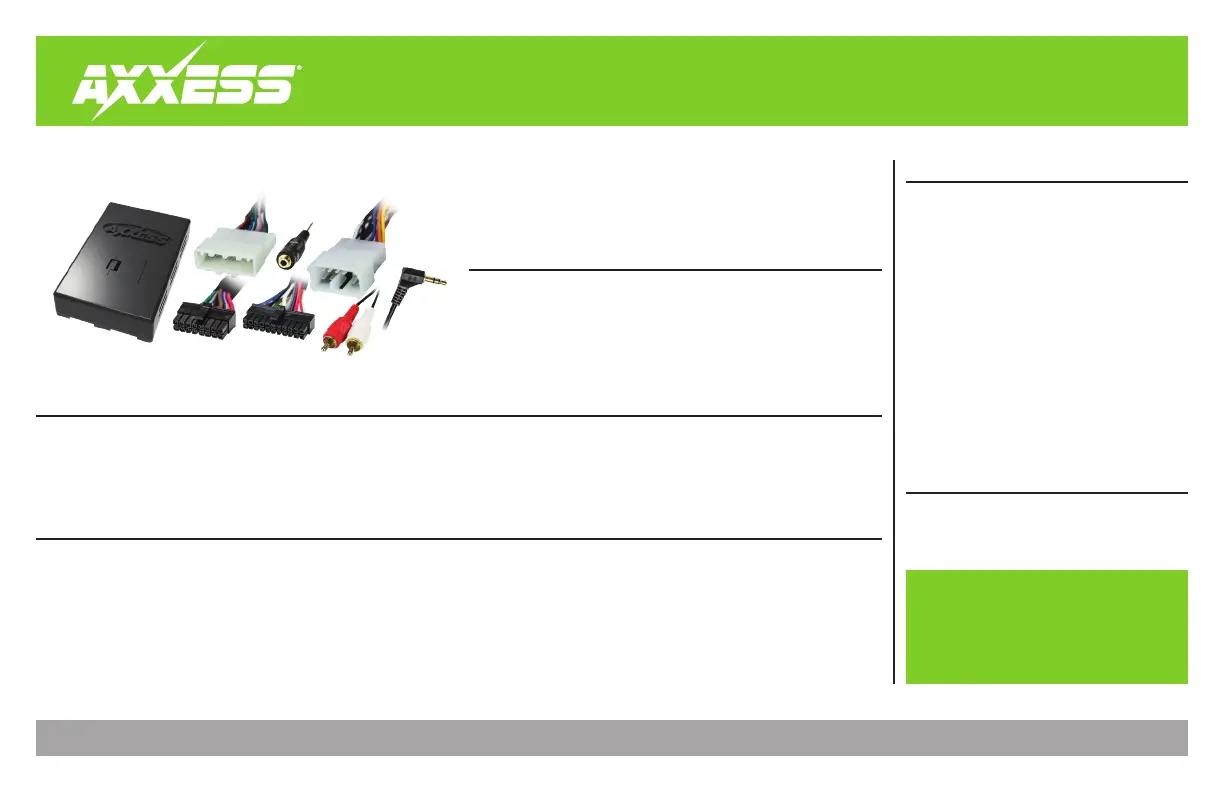

AX-TYAMP2-SWC

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 7/24/18 INSTAX-TYAMP2-SWC

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell

caps, etc.) • Small flat-blade screwdriver

TABLE OF CONTENTS

Connections to be made ....................................2-3

- 3.5mm jack steering wheel control retention

...3

Installing the AX-TYAMP2-SWC .............................3

Programming the AX-TYAMP2-SWC......................4

Adjusting the AX-TYAMP2-SWC .............................4

Steering wheel control settings ........................5-7

- L.E.D. feedback ....................................................5

- Changing radio type ...........................................5

- Remapping the steering wheel control buttons ...6

- Dual assignment instructions (long button press)

...7

Troubleshooting .....................................................8

Toyota Amp Interface with SWC2012-up*

APPLICATIONS

• Retains audio controls on the

steering wheel

• Provides NAV outputs (reverse)

• Retains the factory AUX-IN jack

• Designed for amplified models

• Retains balance

• Micro “B” USB updatable

TOYOTA

Avalon * 2013-up

4-Runner 2014-up

Camry 2014-2017

Camry (w/ nav) 2012-2013

Highlander 2014-up

Prius 3rd Gen (w/ nav) 2012-2015

Plug-In (PHV) (w/ nav) 2012-2015

Prius V 2012-2017

Rav-4 2014.5-up

Sequoia 2014-up

Sequoia (w/ nav) 2013

Sienna 2015-up

Tacoma 2014-up

Tundra * 2014-up

Venza 2015

Venza (w/ HDD based nav) 2013-2014

• AX-TYAMP2-SWC interface

• AX-TYAMP2-SWC harness

• Female 3.5mm connector with stripped lead

*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.

* Only for models with a JBL amplifier
