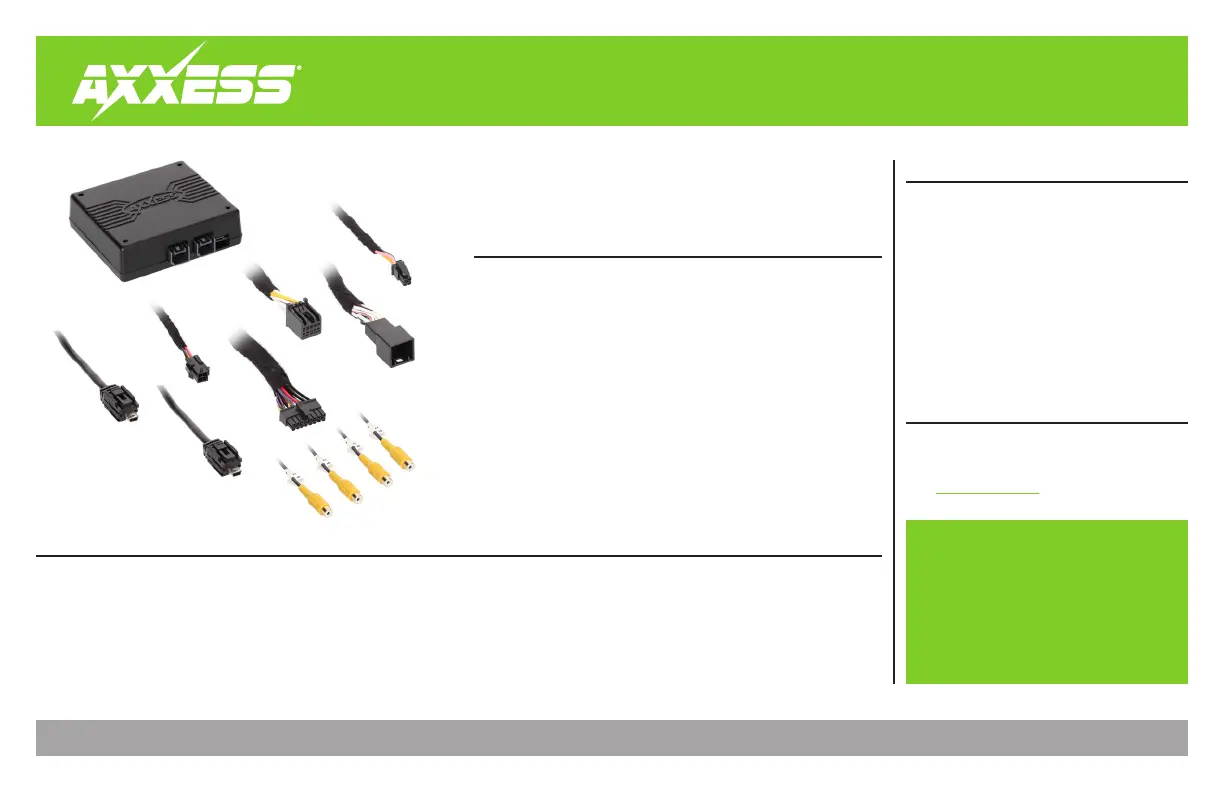

AXAC-GM1

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/9/25 INSTAXAC-GM1

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE FEATURES

REQUIRED ITEMS

TABLE OF CONTENTS

Configuration .........................................................2

Add-Cam Configuration from AXXESS Updater ...3

Connections ............................................................4

LD-GMLVDS-AC .......................................................5

Layout .....................................................................6

• Add multiple CAN-activated cameras with 4 camera inputs

• Includes AXAC camera interface and vehicle-specific harness

• Programmable 12-volt 5-amp switched output (configured through the

Axxess Updater program)

•

Reverse signal trigger generated via CAN Bus communication of the vehicle

• Turn signal trigger generated via CAN Bus communication of the vehicle

• 4 programmable camera control wires (configured through the Axxess

Updater program)

•

Can also be manually controlled and used along with an aftermarket radio

• Rear Video Assistant (RVA) option can be used to keep a camera active

• VSS (Vehicle Speed Sense) input and output

• Micro “B” USB updatable

Update Cable: AXUSB-MCBL (sold separately)

Axxess Updater Program

*Intended for 8" inch screens, the GM LVDS interface will

allow your factory screen to enable a Camera or add

multiple cameras to your factory screen. It can also be used

as a “Baby Monitor” or “Monitor” for your Trailer Hitch”

Camera Data Interface with Pre-Wired Harness

Fits Select Chevrolet/GMC Models*

2015-2020

APPLICATIONS (LD-GMLVDS1-AC - 8 inch (IO5/IO6))

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications.

Chevrolet

w/8” MyLink Touchscreen

Camaro ............................2016-2018

Colorado ...........................2017-2018

Equinox ......................................2018

Silverado (LD-Old Style)

...........2019

Silverado .........................2016-2018

Silverado 2500 / 3500 .............2019

Spark ................................2016-2018

GMC w/8” MyLink Touchscreen

Acadia ...............................2017-2018

Canyon ..............................2017-2018

Sierra ................................2016-2018

Sierra Limited ...........................2019

Sierra 2500/3500 .....................2019

Terrain ........................................2018

Yukon / XL .......................2015-2020
