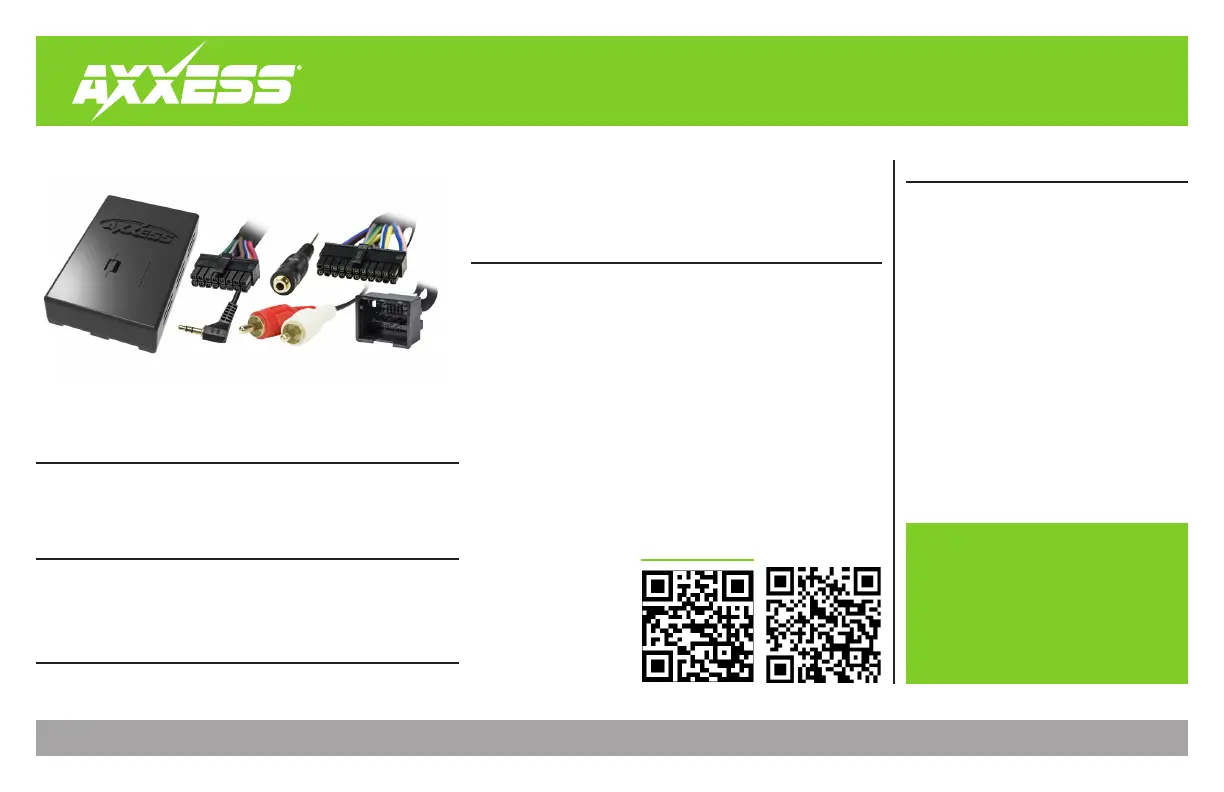

AXDIS-GMLN44

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/1/24 INSTAXDIS-GMLN44

INTERFACE FEATURES

INTERFACE COMPONENTS

TABLE OF CONTENTS

Applications ...........................................................2

Connecting the AXDIS-GMLN44 ........................3-6

For Models without an Amplifier .......................3

For Models with an Analog Amplifier ...............4

For Models with a Digital Amplifier ...................5

3.5mm Jack SWC Retention ................................6

Installing the AXDIS-GMLN44 ................................6

Programming the AXDIS-GMLN44 ........................7

Adjusting the AXDIS-GMLN44 ...............................7

SWC Settings ......................................................8-11

LED Feedback .......................................................8

Changing Radio Type ..........................................9

Remapping the SWC Buttons ................................9

Dual Assignment (Long Button Press) ........10-11

Troubleshooting....................................................11

GM Data Interface with SWC 2012-2016

• Can be used in non-amplified, or analog/digital amplified models

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains chimes

• Retains audio controls on the steering wheel

• Retains OnStar

®

/ OE Bluetooth

• Adjustable OnStar

®

level

• Retains the factory AUX-IN jack

• Retains balance and fade (excluding digital amplified models)

• Micro “B” USB updatable

• AXDIS-GMLN44 interface • AXDIS-GMLN44 harness

• 16-pin harness with stripped leads • 4-pin to 4-pin resistor pad harness

• Female 3.5mm connector with stripped leads

APPLICATIONS

See inside front cover

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape • Connectors (example:

butt-connectors, bell caps, etc.) • Small flat-blade screwdriver

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

www.MetraOnline.com

MetraOnline.com may be used

to assist with dash assembly

instructions. Simply enter

your Year, Make, Model

vehicle into the vehicle fit

guide and look for the Dash

Kit Installation Instructions.

Product Info

Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
