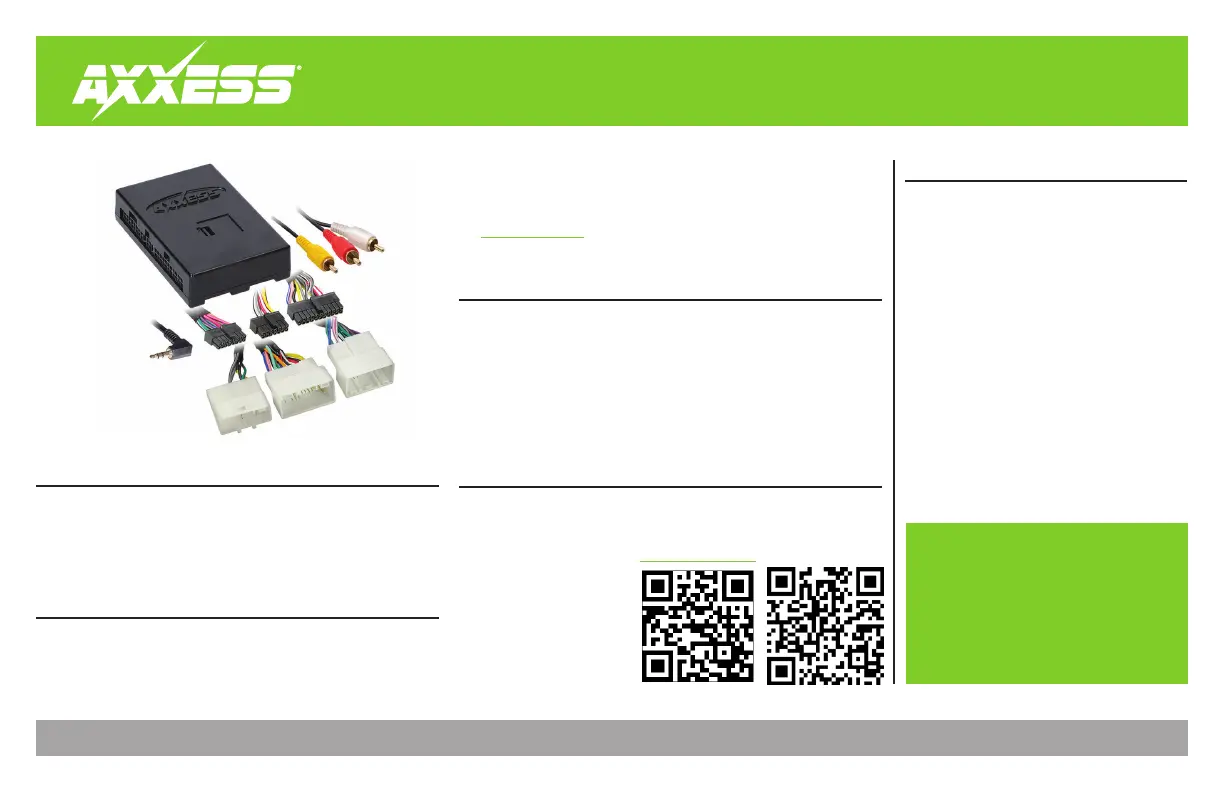

AXDIS-HK2

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/22/24 INSTAXDIS-HK2

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun

• Tape • Connectors (example: butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Connections: Amplified & Non-Amplified .......2-3

Installing the AXDIS-HK2 .......................................4

Programming the AXDIS-HK2...............................4

Steering Wheel Control Settings (SWC)...........5-8

LED Feedback .......................................................5

SWC Connections .................................................5

Changing Radio Type..........................................6

Remapping the SWC buttons

..........................6-7

Dual assignment instructions)

............................

7-8

Troubleshooting.....................................................8

Hyundai Data Interface with SWC2012-2016

APPLICATIONS

• Designed for amplified* and

non-amplified models

• Provides NAV outputs (parking

brake, reverse, speed sense)

• Retains audio controls on the

steering wheel

• Retains BlueLink

•

Retains the factory backup

camera

• Retains balance and fade

• Micro-B USB updatable

HYUNDAI

Veloster (without NAV) ......................................................................2016

Veloster ......................................................................................2012-2015

• AXDIS-HK2 interface

• AXDIS-HK2 harness

• 16-pin harness with stripped leads

• Female 3.5mm connector with stripped leads

* Requires the AXSP-HK (sold separately)

Visit AxxessInterfaces.com for more detailed information about the product and

up-to-date vehicle specific applications.

MetraOnline.com may be used

to assist with dash assembly

instructions. Simply enter

your Year, Make, Model

vehicle into the vehicle fit

guide and look for the Dash

Kit Installation Instructions.

Product Info

www.MetraOnline.com

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.
