Your Avion

®

Home Theater Furniture is engineered for easy assembly.

Carefully follow this procedure to prevent any damage.

Placement and Maintenance

Avion

®

Home Theater Furniture is designed for indoor use on level floors.

Clean glass with glass cleaner, and steel parts and wood veneer with a

moist cloth.

Step 1

Unpack and identify the components at left. Note that some components

are shipped inside the cabinet. The assembly workspace should be a non-

marring surface such as carpet. For missing hardware pieces, please

contact BDI Customer Service at [email protected]. For all

other concerns, please contact your BDI Retailer.

Step 2

Build and Install Base Assembly

First, remove all internal components from the cabinet including shelves,

hardware box and legs. Carefully lay Assembled Cabinet (F)

back-side

down. Using the Hollow Bolt Wrench (C), remove the four (4) pre-installed

Hollow Bolts (D) from Metal Leg (H).Screw the

Metal Rail (G)to the top

of Metal Leg (H) with Hollow Bolts (D)

.

Component List

Designed by BDI Design Studio.

These distinctive product configurations are protected by US and international

patents, trade dress, and/or copyright laws. “Avion” and BDI are trademarks of

Becker Designed, Inc. All Rights reserved. ©2009, BDI

Made in China. 89225REV102909v2

Avion

®

8925

assemblyinstructions

bdiusa.comcustomerservice@bdiusa.com

D - Hollow Bolts x 4

Pre-installed on

Metal Legs (H)

A - Phillips Screwdriver

x 1

C - Hollow Bolt Wrench

x 1

F - Assembled Cabinet

x 1

E - 1/4”-20 x 2”

Machine Screw x 6

G -Metal Rail x 2

I -M4 x 25mm Screws

x 4

J - Handle x 2

K - Adjustable Shelf

x 2

M - Back Panel x 1

H - Metal Leg x 2

B - 4mm Hex Driver

x 2

H

D

G

I

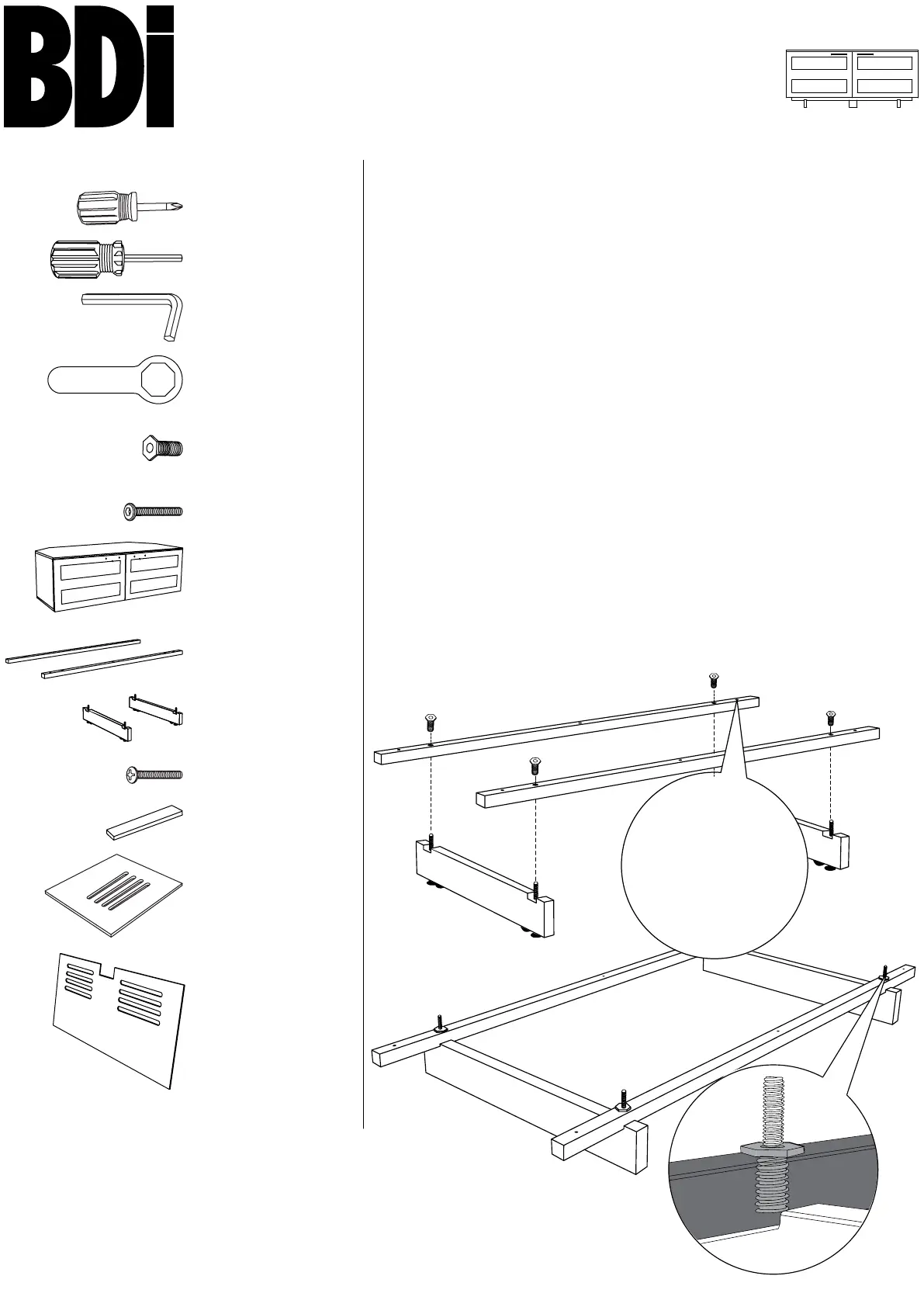

Completed base assembly

Detail view of Hollow Bolts (D)

connecting theMetal Rail (G) to

the top of Metal Leg (H).

D

H

H

G

NOTE:Make sure

that the larger bolt

opening on Metal Rail

(G)faces toward the

floor.
