E - Cam Bolt x 4

D - Dowel Pin x 8

C - Cam Fastener x 4

I - Upper Bracket

9721, 9723 x 3

9724 x 4

J - Lower Bracket

9721, 9723 x 3

9724 x 4

H - M6 x 6mm

Machine Screw

9721, 9723 x 6

9724 x 8

G - M6 x 16mm

Machine Screw

9721, 9723 x 6

9724 x 8

M - Rubber Stem Bumper

x 6

9723

9724

B - 4mm Hex L-Wrench

A - Phillips Screwdriver

(Not Provided)

F - 1/4-20 x 38mm

Machine Screw x 6

K - Shelf Clip

9721 x 8

9723, 9724 x 4

L - #6 x 1/2" Wood Screw

9721 x 8

9723, 9724 x 4

VALERA

Designed by Louis A. Lara

These distinctive product configurations are protected by US and international

patents, trade dress, and/or copyright laws.

BDI are trademarks of Becker Designed, Inc.

All Rights reserved. © 2010 BDI

Made in China. 9721 9723 9724 Revision: 05-09-11

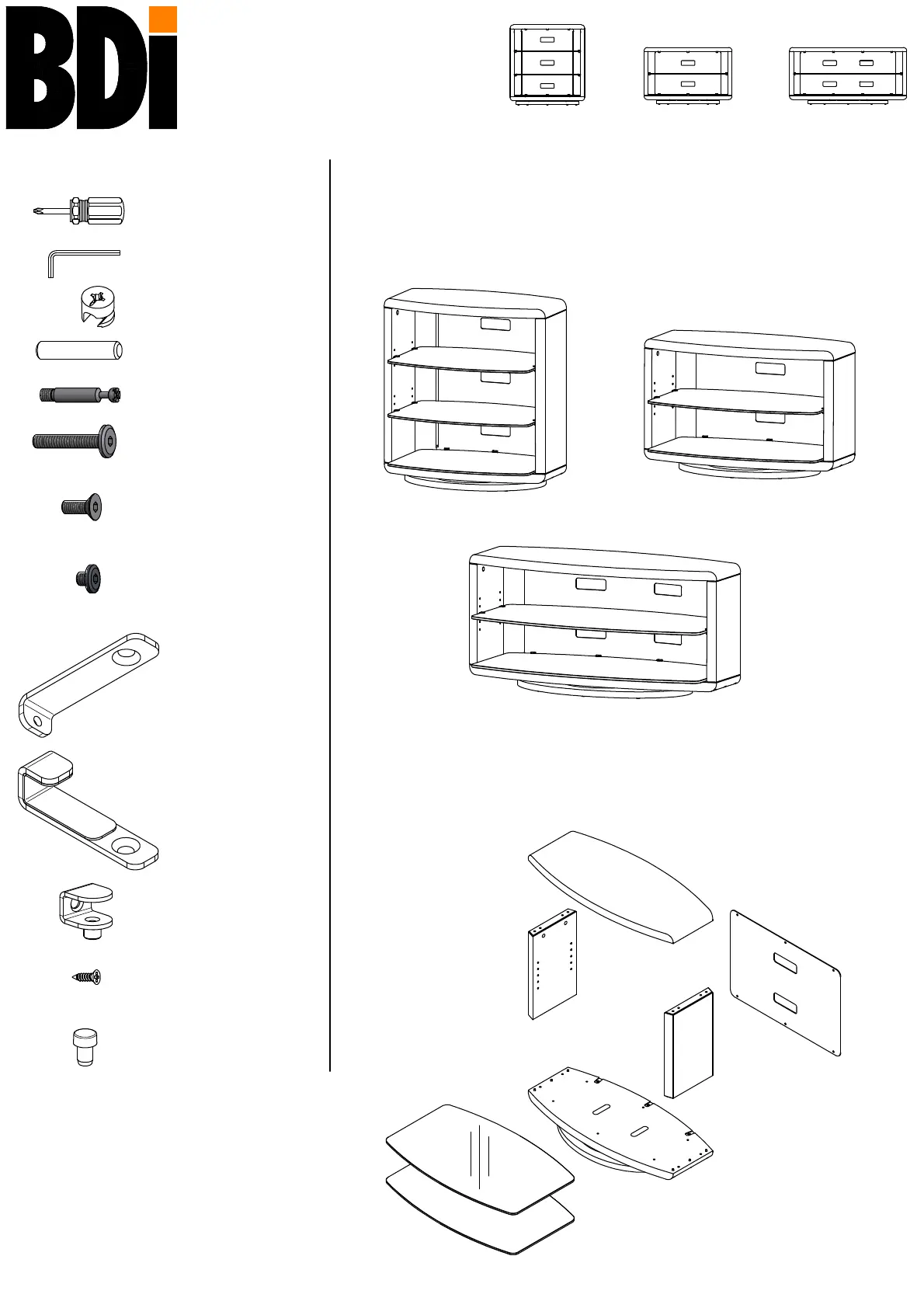

Component List

9721 9723 9724

ASSEMBLY INSTRUCTIONS

1

BDIUSA.COM [email protected]

Valera is engineered for easy assembly. Carefully follow this procedure to

prevent any damage.

Placement and Maintenance

Valera is designed for indoor use on level floors. Clean glass with glass cleaner,

and wood veneer with a moist cloth.

Step 1

Unpack and Identify

Unpack and identify the components at left. The assembly workspace should be

a non-marring surface such as carpet. For missing hardware pieces, please

contact BDI Customer Service at cust[email protected]. For all other

concerns, please contact your BDI Retailer.

N - Top Panel x 1

O - Side Panels x 2

P - Base Assembly x 1

Q - Back Panel x 1

N

O

O

P

Q

R

9721

R - Glass Shelves

9721 x 3

9723, 9724 x 2
