Seite 1/2
PART# BBE-2000R
Blend
ffluunt
®
ESCORT
TRO IC
Innovative
Mounting
Solutions
1111111
11111111111
111111111111

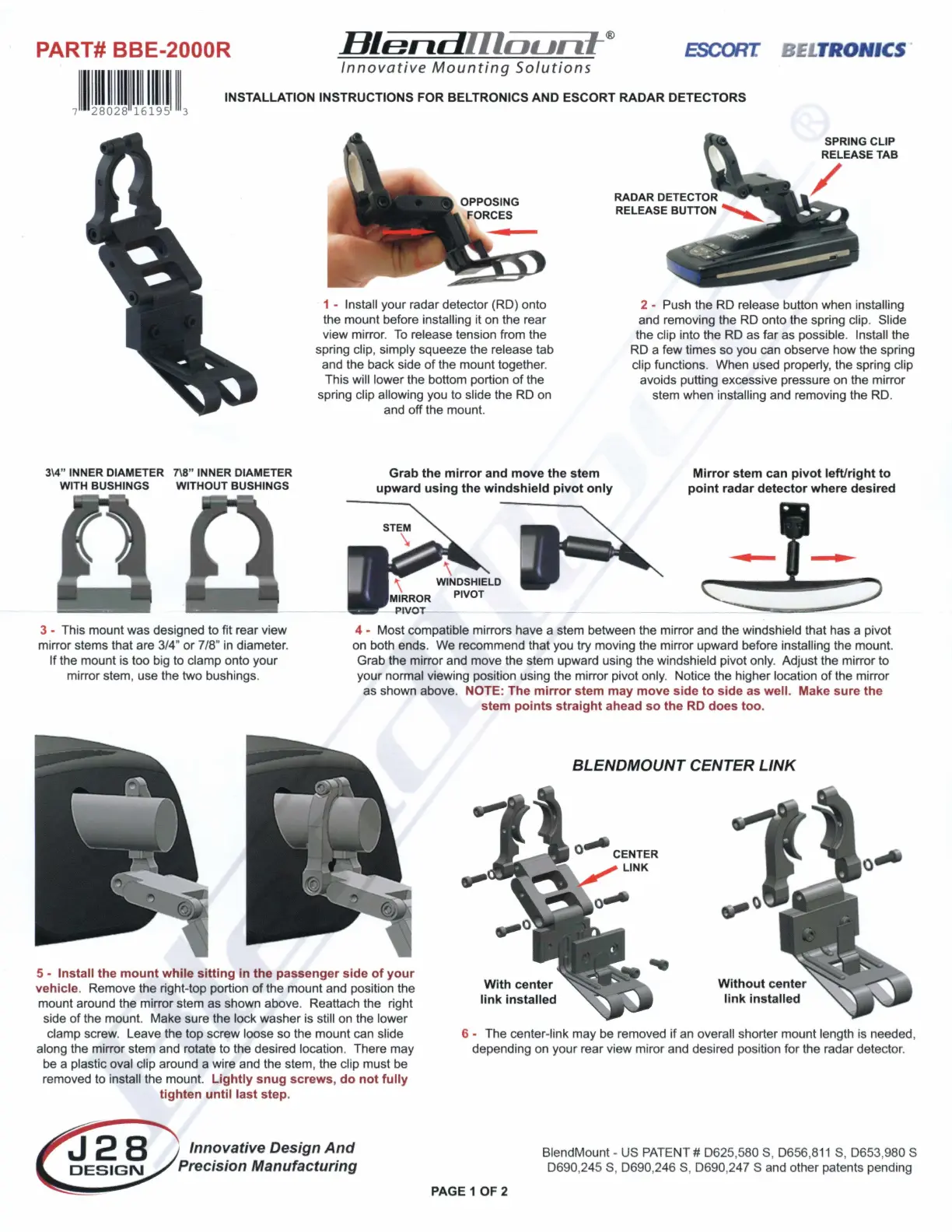

INSTALLATION INSTRUCTIONS FOR BELTRONJCS
AND
ESCORT
RADAR DETECTORS
7
28028
16195
3
3\4" INNER DIAMETER 7\8" INNER DIAMETER
WITH BUSHINGS WITHOUT BUSHINGS
1 - Install
your
radar detector (RD) onto
the
mount
before installing it on the rear
view mirror.
To
release tension from the
spring clip, simply squeeze the release tab
and the back side
of
the mount together.
This will lower the bottom portion
of
the
spring clip allowing you to slide the RD on
and
off
the mount.
Grab the mirror and move the stem
upward using the windshield pivot only
STEM
SPRING CLIP
RELEASE
TAB
/
2 - Push the RD release button when installing
and removing the RD onto the spring clip. Slide
the clip into the RD as
far
as possible. Install the
RD a few times
so
you can observe how the spring
clip functions. When used properly, the spring clip
avoids putting excessive pressure on the mirror
stem when installing and removing the RD.
Mirror stem can pivot left/right to
point radar detector where desired
3 - This mount
was
designed
to
fit rear view
mirror stems that are 3/4"
or
7/8" in diameter.
4 - Most compatible mirrors have a stem between the mirror and the windshield that has a pivot
on both ends. We recommend that you try moving the mirror upward before installing the mount.
If the mount is too big to clamp onto
your
mirror stem, use the
two
bushings.
Grab the mirror and move the stem upward using the windshield pivot only. Adjust the mirror to
your
normal viewing position using the mirror pivot only. Notice the higher location
of
the mirror
as shown above. NOTE:
The
mirror stem
may
move side
to
side as well. Make sure the
stem points straight ahead so the RD does too.
5 - Install the mount while sitting in the passenger side
of
your
vehicle. Remove the right-top portion
of
the mount and position the
mount around the mirror stem as shown above. Reattach the right
side
of
the mount. Make sure the lock washer is still on the lower
clamp screw. Leave the top screw loose so the mount can slide
along the mirror stem and rotate to the desired location. There may
be a plastic oval clip around a wire and the stem, the clip must be
removed to install the mount. Lightly snug screws,
do
not fully
tighten until last step.
Innovative Design
And
Precision Manufacturing
With center
link installed
BLENDMOUNTCENTERLINK
Without center
link installed
6 -
The
center-link may be removed
if
an overall shorter mount length is needed,
depending on
your
rear view miror and desired position
for
the radar detector.
PAGE 1 OF 2
BlendMount - US
PATENT#
D625,580 S, D656,
811
S, D653,980 S
D690,245 S, D690,246 S, D690,247 S and other patents pending
