Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer’s Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
Owner’s Manual
F735 Oly Plate Holder Option
for the BodyCraft F430 / F730 PRO (Power Rack) or F438 / F738 (RFT PRO)
Open your Camera
App and point it at
the QR Code

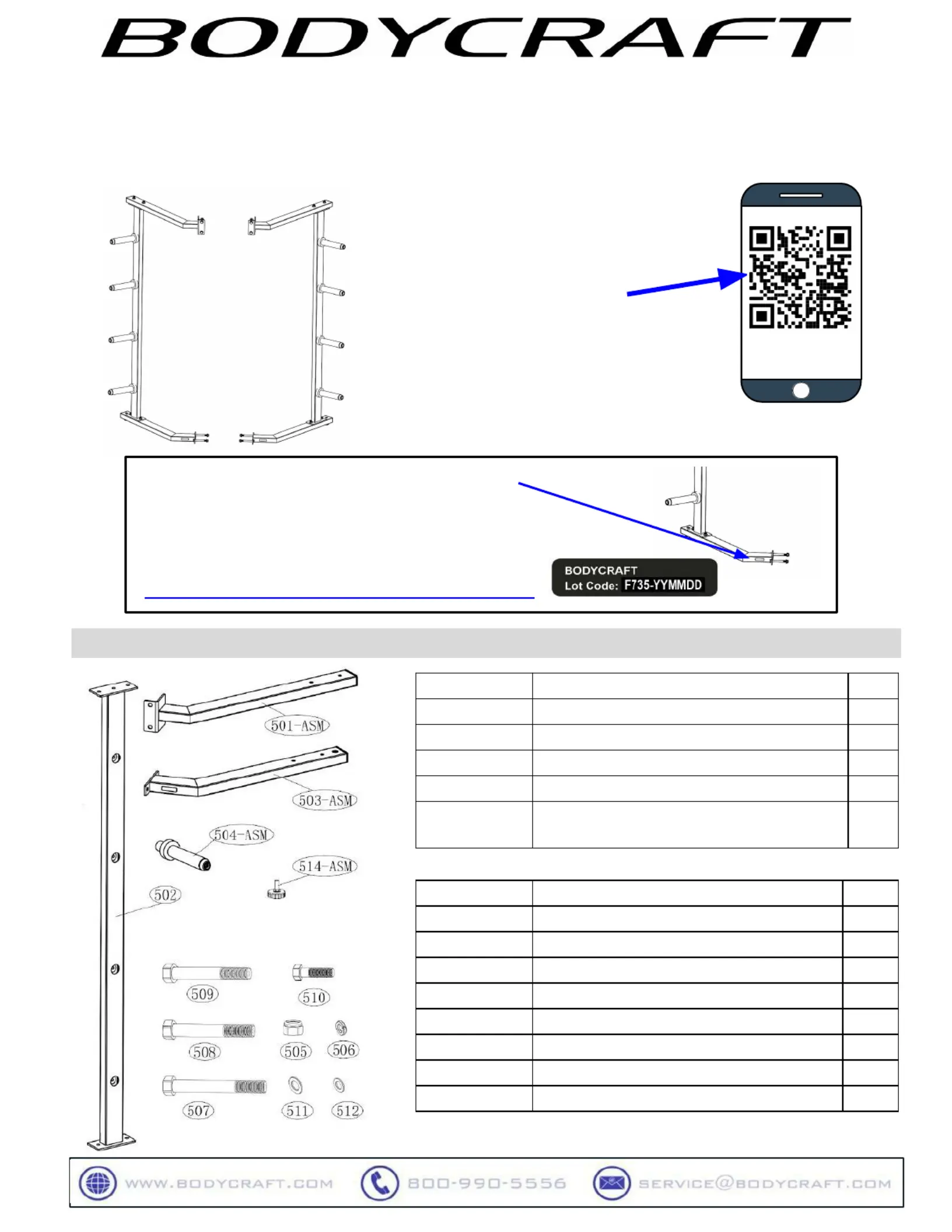

Assembled Parts List
F735 v1.3
To see in
FULL COLOR
& additional information,
scan this QR code.
Part # Assembly Parts List QTY
F735-501-ASM Frame, Top, Rt & Lt - Assembly 2
F735-502 Frame, Upright, for Oly Plate Storage 2
F735-503-ASM Frame, Bottom, Rt & Lt - Assembly 2
F735-504-ASM Oly Plate Horn - Assembly 8
F735-514-ASM
Adjustable Foot, for Lower Base Frame -
Assembly 2
Part # Assembly Hardware QTY
F735-505 Nut, Nylon Lock 1/2" - BLACK 8
F735-506 Washer, Spring 3/8" - BLACK 8
F735-507 Bolt, Hex Head 1/2" x 4-1/2" - BLACK 4
F735-508 Bolt, Hex Head 1/2" x 3-1/4" - BLACK 4
F735-509 Bolt, Hex Head 1/2" x 2-1/2" - BLACK 8
F735-510 Bolt, Hex Head 3/8" x 1-1/4" - BLACK 8
F735-511 Washer, Flat 1/2" - BLACK 16
F735-512 Washer, Flat 3/8" - BLACK 8
TORQUE WRENCH 3/8
DRIVE
F735 - Product Assembly
SOCKET SET 3/8 DRIVE & 6” EXT
(Only 9/16 & 3/4 Sockets needed)
OPEN & CLOSED WRENCHES
(Only 9/16 & 3/4 is needed)
THE FOLLOWING TOOLS ARE FOR ASSEMBLY:RECOMMENDED
2

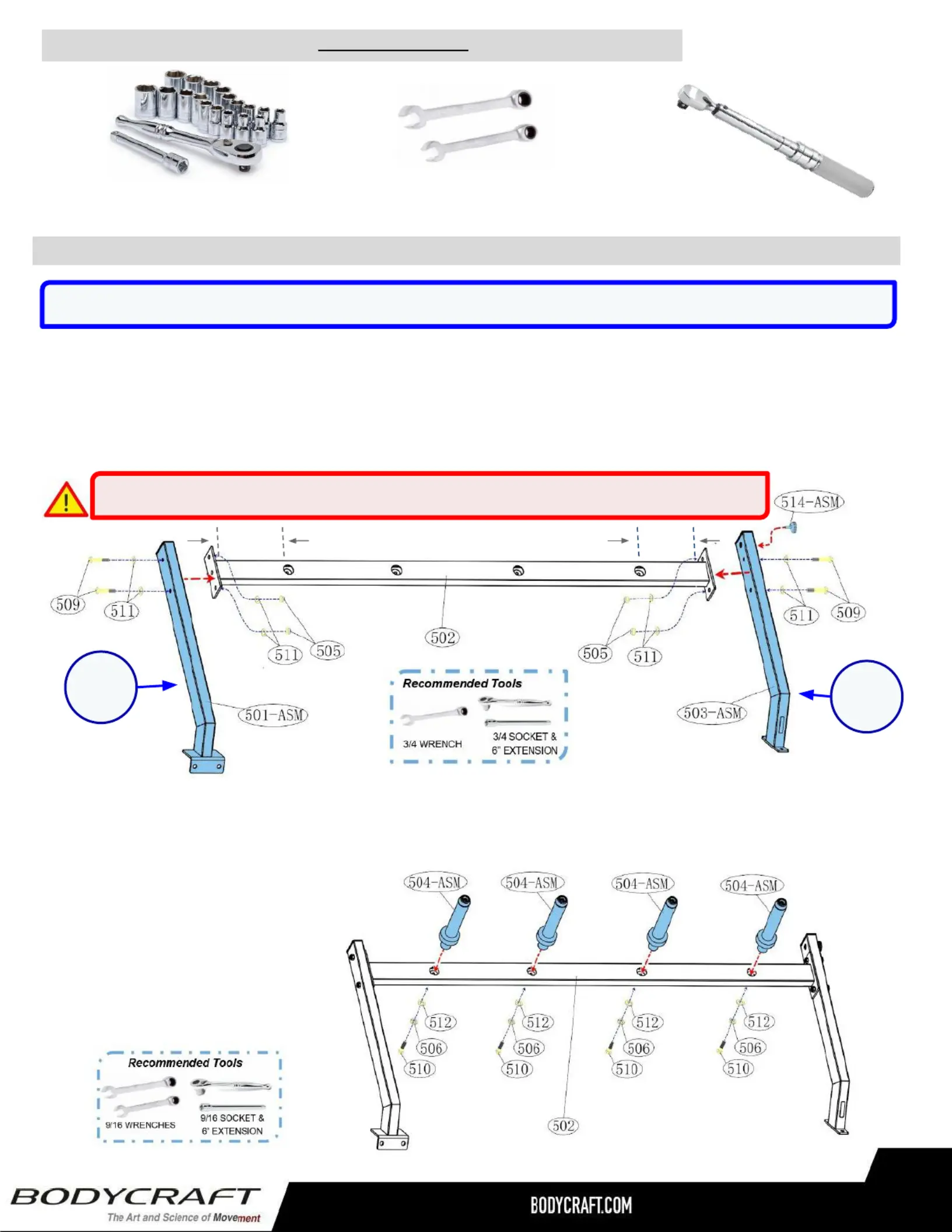

STEP 1: Installation of the Main Frame Assemblies
Loosely attach the Frame, Top, Rt & Lt Sides - Assembly
(501-ASM) Frame, Bottom, Rt & Lt Sides -& the
Assembly (503-ASM) to the Frame, Uprights (502) using:
● Eight BOLTS, Hex 1/2" x 2-1/2”
(509)
● Sixteen WASHERS, Flat 1/2" (511)
● Eight NUTS, Hex Lock 1/2" (505)
STEP 2: Installation of the Oly Plate Horns
Attach all the to the Frame, Uprights (502-ASM) using:Oly Plate Horns (504-ASM)
● Eight BOLTS, Hex 3/8" x
1-1/4” (510)
● Eight WASHERS, Spring
3/8" (506)
● Eight WASHERS, Flat
3/8" (512)
TIP: Very stable and safe to start the Assembly STEPS when on its side, horizontally NOT upright.
Bottom
Frame
Top
Frame
It is extremely IMPORTANT that #502 is oriented correctly. See measurements below.
9.4”
10.25”
Top
F735 - Product Assembly
3

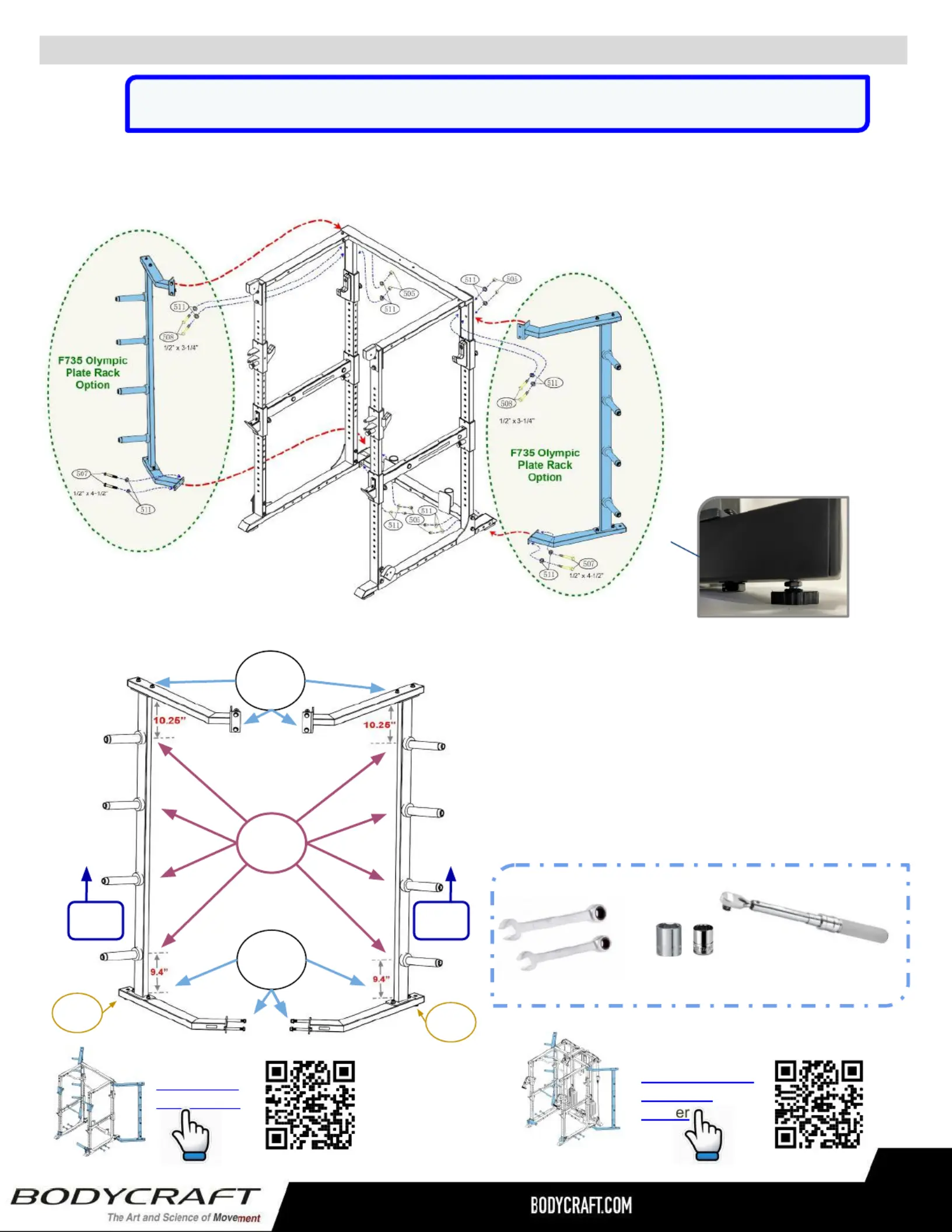

STEP 3: Installation of the F735 Oly Plate Holder to an F730 / F430 (Power Rack) or F738 (RFT)
Attach the to the Upright, Rear, Right & Left Sides (5) using:Olympic Plate Rack Option (F735)
● Four BOLTS, Hex 1/2"
x 3-1/4” (508)
● Four BOLTS, Hex
1/2" x 4-1/2” (507)
● Sixteen WASHERS,
Flat 1/2" (511)
● Eight NUTS, Nylon
1/2" (505)
TIP: Keep bolts loose when installing on an F730 / F430 (Power Rack) or F738 (RFT).
Then level Bottom Frames with the Adjustable Foot (514-ASM) on both sides.
● Tighten to the recommended torque specs of
20 ft-lbs (+/- 2 lbs) on all 1/2” Bolts & Nuts.
● All 8 Bolts (#510) on the Oly Plate Horns to
the torque specs of 17 ft-lbs (+/- 2 lbs).
● Tighten Jam Nuts on Adjustable Feet @ 7 ft-lbs.
STEP 4: “Torque Time” on all Frames & Oly Plate Horns
20 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
17 ft-lbs
(+/- 2 lbs)
TORQUE WRENCH
w/ 9/16 & 3/4 SOCKETS & WRENCHES
Recommended Tools
Horns 5%
angled up
Horns 5%
angled up
7 ft-lbs
(+/- 1 lbs)
7 ft-lbs
(+/- 1 lbs)
F730 PRO -
Power Rack
RFT PRO- Rack
Functional
Train
