SEQUENTIAL VOLTAGE SOURCE - MODEL 245t

Eurorack 200 series

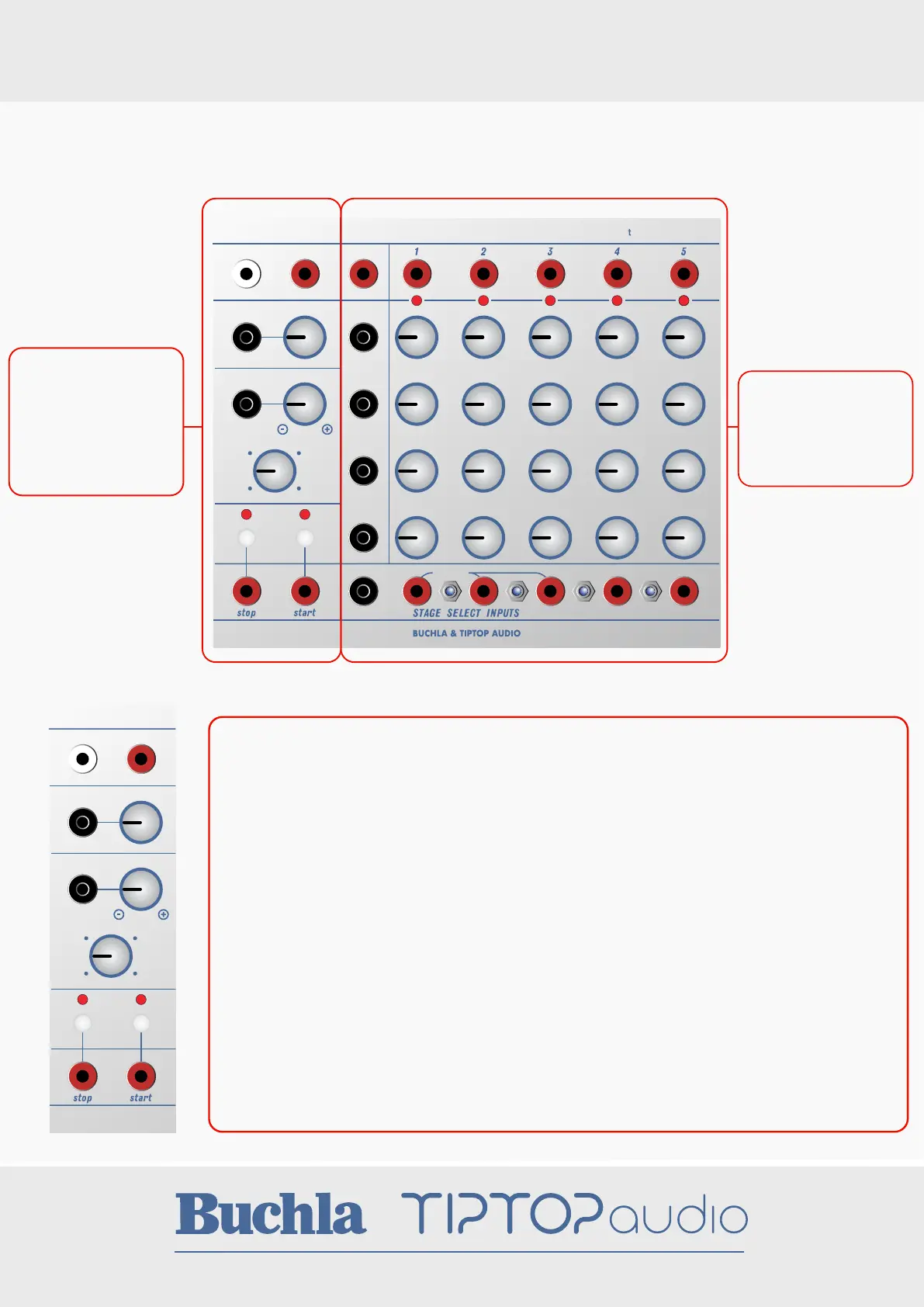

Buchla 245t has two sections: Pulser and Stored Voltage Stages.

SEQUENTIAL VOLTAGE SOURCE MODEL 245

advance

IN

OUT

A

C

D

B

pulseanalog

PULSER

OUT

ref pulse

PULSE LENGTH

%

ofperiod

0 100

INTERNAL TIME

.002

.005.5

10

IN

The Pulser generates

a control pulse which

can be used to

advance the stages

in the Voltage Stage

section.

The Voltage Stage

section has 5 stages

that store 4 voltages

per stage.

Pulser Section:

Pulse - output generates a pulse with a 10V initial stage that lasts for 100uSec (0.1ms) followed by a

5V gate stage length determined by the Pulse Length control.

Ref - outputs a ramp wave that descends from 10V to 0V at the rate of the pulser.

Pulse Length - sets the length of the 5V stage of the pulse from 0 to 100% of the duty cycle.

External CV control is added to the knob setting.

Internal Time - controls the period of the pulser output from 10 seconds (full CW) to a few

milliseconds (full CCW). External CV has an attenuverted control to either add (CW) or subtract

(CCW) external voltage from the knob setting. External CV can increase the maximum and

minimum period of the pulser to approximately 50 seconds to 1ms (1kHz) (*).

Start - Pressing this button starts generating a pulse and reference ramp at those outputs. A pulse

on the Start input also begins pulser generation.

Stop - Pressing the button or sending a pulse to the input jack stops the pulser if already running.

Additional presses or pulses to the Stop input will manually trigger a single pulse output from the

pulser.
