BG-HDVS42U

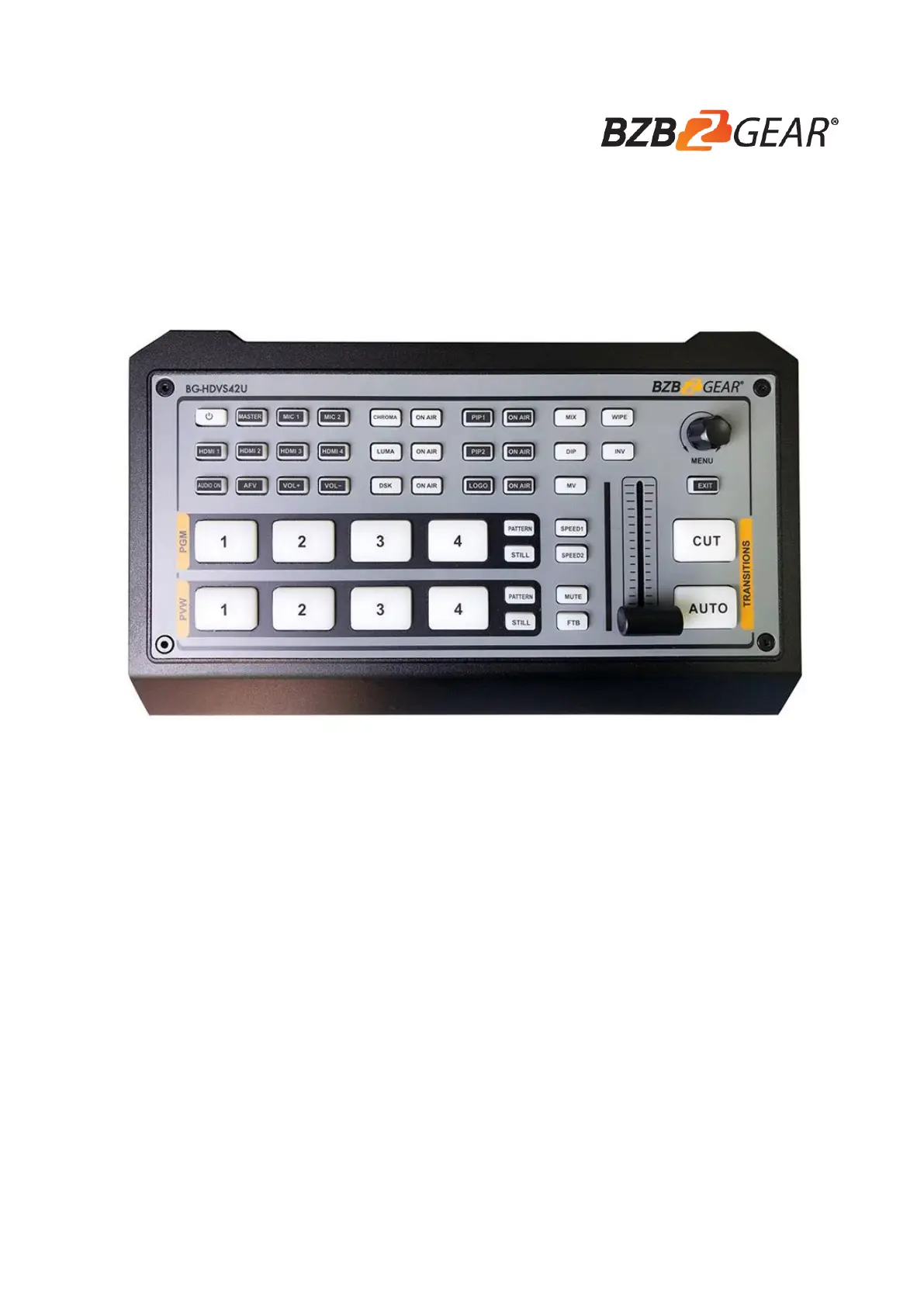

MICRO 4 CHANNEL HDMI LIVE STREAM
MULTI-FORMAT VIDEO SWITCHER
USING THE UNIT SAFELY
Before using this unit, please carefully review the following information concerning the proper operation
of the unit. To ensure that you are getting the most out of your product review the manual in its entirety.
This manual should be saved and kept on hand for future reference.
Warning and Precautions
※ To avoid damage from drops, make sure this unit is placed on a stable and solid surface.
※ Only connect unit with the included power supply.
※ Disconnect power cord by connector only - Do not pull on the cable.
※ Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can cause fire or
electrical shock hazards. Regularly check power cord for excessive wear or damage to avoid possible
re / electrical hazards.
※ Ensure the unit is properly always grounded to prevent electrical shock hazard.
※ Do not use this unit near water.
※ Do not allow liquids, metal pieces, or other foreign materials to enter the unit.
※ Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you need to
transport the unit, use the original packing materials or alternate adequate packing.
※ Do not remove covers, panels, casing, or access circuitry! Internal servicing / adjustment of unit
should only be performed by qualied personnel.
※ Turn o the unit if a malfunction occurs. Disconnect everything before moving the unit.
Note: Due to the constant eort to improv our products and product features, specications may change e
without notice.
CONTENTS
1. BRIEF INTRODUCTION ...........................................................................................1
1.1. Overview 1 ...........................................................................................................................
1.2. Main Features................................................................................................................... 1
2. INTERFACES ............................................................................................................ 2
2.1. Interface Overview ........................................................................................................... 2
2.2. Tally PIN Denition .......................................................................................................... 2
3. SPECIFICATION ....................................................................................................... 3
4. FRONT CONTROL PANEL ...................................................................................... 4
5. POWER ON/ OFF ...................................................................................................... 5
6. MULTIVIEW ............................................................................................................... 6
6.1. Status Page ...................................................................................................................... 6
6.2. Layouts .............................................................................................................................. 7
6.3. Audio Meter....................................................................................................................... 8
6.4. Input Information .............................................................................................................. 8
6.5. UMD Settings 9 ...................................................................................................................
7. PGM PVW SWITCHING .................................................................................................. 10
7.1. PGM PVW Channel Selection ..................................................................................... 10
7.2. STILL ...............................................................................................................................10
7.3. Transition: CUT/ AUTO/ T-BAR................................................................................... 11
8. TRANSITION EFFECT ............................................................................................ 11
8.1. WIPE ................................................................................................................................ 11
8.2. DIP ...................................................................................................................................11
8.3. MIX ................................................................................................................................... 12
8.4. Transition Speed Setting .............................................................................................. 12
9. UPSTREAM KEY ....................................................................................................12
9.1. Luma Key ........................................................................................................................ 12
9.2. Chroma key..................................................................................................................... 13
9.3. PIP & POP ......................................................................................................................15
10. DOWNSTREAM KEY ............................................................................................ 16
10.1. DSK ................................................................................................................................ 16
10.2. LOGO ............................................................................................................................ 17
11. OUTPUT SETTING ............................................................................................... 18
