Seite 1/12

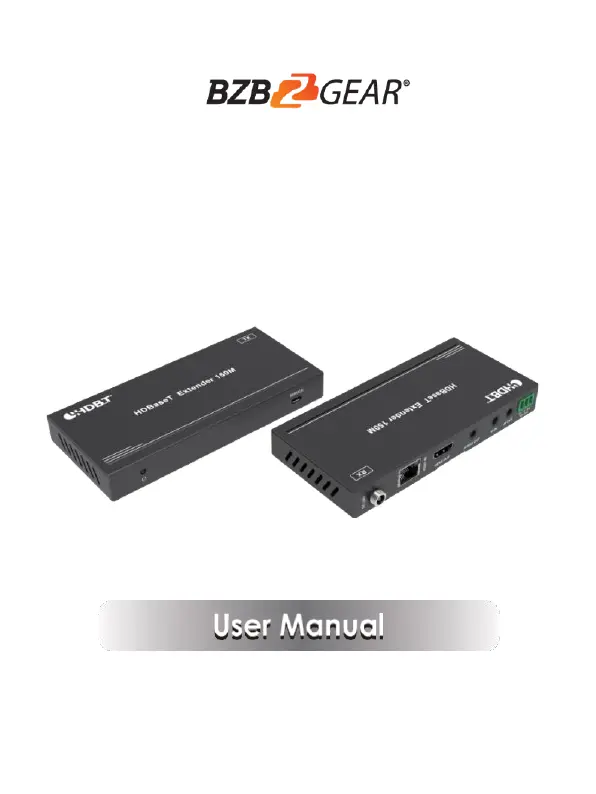

BG-EXH-150C
18Gbps HDMI over HDBaseT Extender
with -directional IR (150M) Bi
Thank you for purchasing this product
For optimum performance safety, please read these instructions carefully and
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect extend the and
life of your equipment.
Table of Contents
1. Introduction ...........................................................................................1
2. Features .................................................................................................
1
3. Package Contents ...............................................................................
2
4. Specifications .......................................................................................
2
5. Operation Controls and Functions ......................................................
4
5.1 Transmitter Panel ............................................................................
4
5.2 Receiver Panel ................................................................................5
5.3 IR Pin Definition ...............................................................................
6
6. Application Example ...........................................................................
8
7. Warranty Information ........................................................................... 9
8. Mission Statement .............................................................................. 10
1 / 10
1. Introduction
The 150CBG EXH- - 18Gbps HDMI Extender can extend high denition video
/ audio signal, RS-232, -directional IR, and the distance is up to 492ft bi / 150
meters between transmitter and receiver via a single CAT cable. It supports
resolution up to 4K2K@60Hz 4:4:4, 18Gbps, and HDCP 2.2. One HDMI
loop port is available for output. It also supports -embedded audio for L/R de
audio output and PoC function. In addition, the extender is equipped with two-
way IR pass-through which allows for source and display control.
This HDMI extender includes two units: transmitter unit and receiver unit. The
transmitter unit is responsible for capturing HDMI input signal and carrying
the signal via one cost eective Cat5e/6 cable, and transmitting / emitting IR
control signals. The receiver unit is responsible for receiving the HDMI signal
and transmitting / emitting IR control signal.
The extender oers the most convenient solution for HDMI extension via a
single Cat5e/6 with long distance capability, and is the perfect solution for
any application.
2. Features
☆ HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ The maximum extended transmission distance via a single cable:Cat5e/6
394ft / 120 meters for 4K2K signal;
492ft / 150 meters for 1080P signal
☆ Support one HDMI loop output on the transmitter
☆ De-embedded audio to analog stereo output on receiver
☆ With bi-directional IR, RS-232 and CEC pass-through
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Support PoC Power over Cable( ) function
☆ Compact design for easy and exible installation
