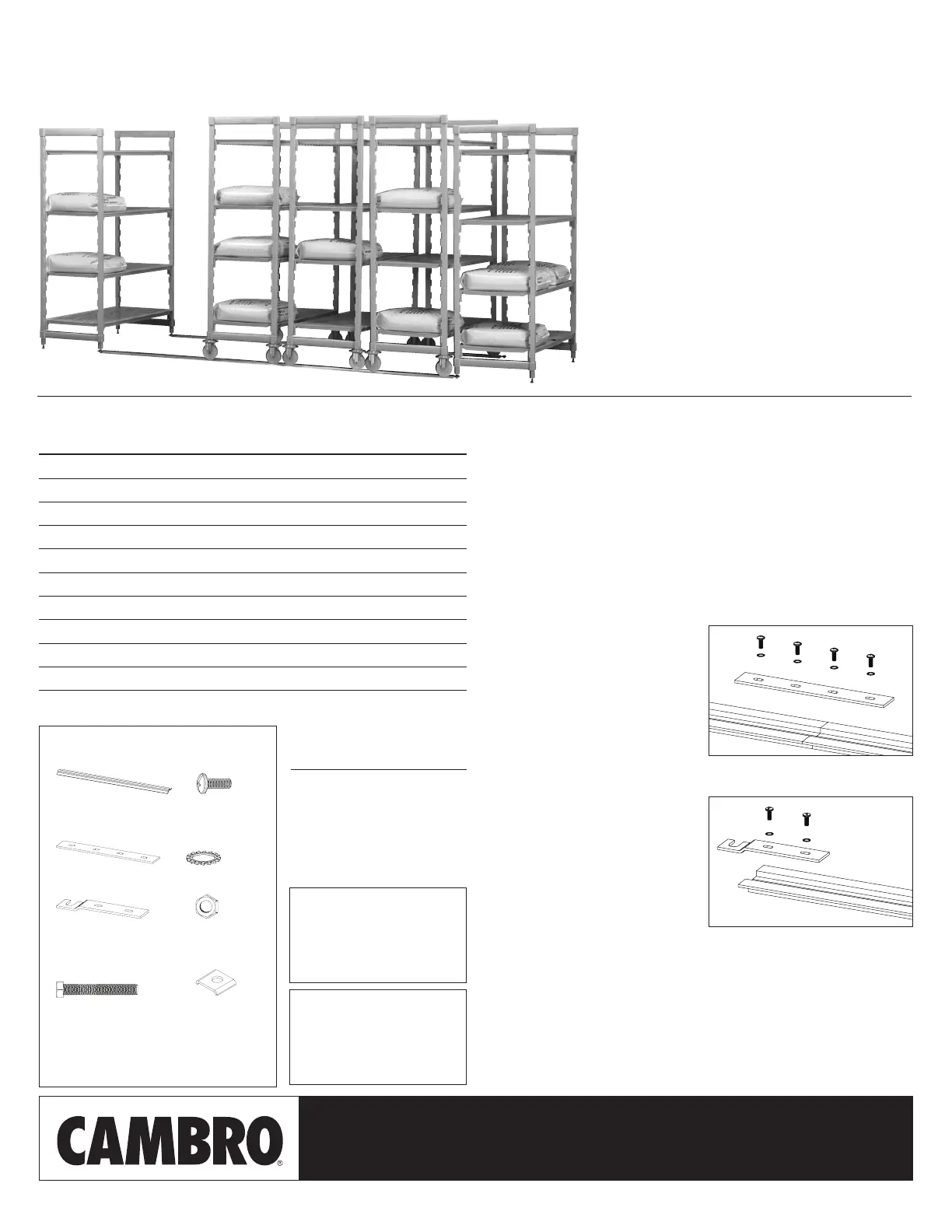

Seite 1/8

1
CAMSHELVING
®
HIGH DENSITY STORAGE SYSTEM
Assembly Instructions, Product Line & General Usage Guide
NOTICE: Follow instructions included with
Camshelving Starter Units to build Stationary
and High Density Mobile Starter Units. Use a
Rubber Mallet ONLY to secure Traverses and
Casters onto Camshelving Units. Do NOT use
hard plastic or metal mallets, as they may
cause product damage.
NOTE: ALL Camshelving Units MUST BE 24"
(61 cm) wide only to provide stability. Unit
length may be 36" (91 cm), 42" (107 cm)
or 48" (122 cm) maximum. Select 64" (163
cm) or 72" (183 cm) high Stationary Starter
Units and 67" (170 cm) or 75" (191 cm) high
Mobile Starter Units.
PARTS CHECKLIST
CSHDTK10
10' (3,05 m)
Track Kit
CSHDTK12
12' (3,66 m)
Track Kit
CSHDTK145
14.5' (4,42 m)
Track Kit
4.5' (1,38 m) Track Rail – – 2
5' (1,53 m) Track Rail 4 – 4
6' (1,83 m) Track Rail – 4 –
Track Rail Joiner 2 2 4
Track Rail Stationary End Plate 4 4 4
Pan Head Screw 16 16 24
Star Washer 16 16 24
Stainless Steel Leveling Foot 8 8 8
Track Rail Stationary Plate Cap 4 4 4
½" (1,3 cm) Hex Nut 4 4 4
Total Pieces 58 58 78
All specs are subject to change without prior notice.
High Density Camshelving
Storage System
Track Kits
CSHDTK10 10' (3,05 m) Track Kit for
3 Mobile Units
CSHDTK12 12' (3,66 m) Track Kit for
4 Mobile Units
CSHDTK145 14.5' (4,42 m) Track Kit for
5 Mobile Units
The High Density Camshelving Storage System utilizes all available
space by eliminating aisles. Increases storage capacity by 30% - 40%.
High Density Camshelving is easy to order and assemble. Camshelving
Stationary Units act as the system anchor. High Density Mobile Units
with exclusive High Density Casters and Track Kits complete the system.
2009 Cambro Manufacturing Company 5801 Skylab Road, Huntington Beach, CA 92647-2056, U.S.A.
Telephone 714 848 1555 Toll Free 800 854 7631 Customer Service Hot Line 800 833 3003 Printed in USA
1. Before you begin to assemble, please refer to the parts checklist to identify and count all of
the parts. If anything is missing, please contact your Cambro Sales Representative, or Cambro
Customer Service at 1-800-833-3003 or 1-714-848-1555 to request missing parts.
2. Lay out sections of track rail end to end with the groove side up, to form two tracks of equal
length.
High Density Camshelving
®
Storage System Assembly Instructions
3. Secure Track Rails together using Track
Rail Joiners. Place a Track Rail Joiner down
into the groove and line it up with the screw
holes in the Track Rails. Secure 4 each Pan
Head Screws and Star Washers using a
Phillips Head Screwdriver. Repeat for 2
nd
set.
(See Fig. 1)
Fig. 1
4. Attach one Track Rail Stationary End Plate,
at each end of run of track. Place each
Track Rail Stationary End Plate down into
the groove, and line it up with the screw
holes in the Track Rails. Secure 2 each
Pan Head Screws and Star Washers using
a Phillips Head Screwdriver. Repeat for 2
nd
set. (See Fig. 2)
Fig. 2
6. Assemble two each Camshelving Stationary Starter Units per instructions included with each
unit. Carefully lay each unit on its side and unscrew and remove the plastic leveling feet.
5. Flip Track Rails over so raised Caster Rail Guide is facing upwards. Place the tracks parallel,
the proper distance apart, and in the intended location.
Track Rail
Stationary End Plate
1
⁄2" (1,3 cm
Hex Nut
Pan Head ScrewTrack Rail 4.5' (1,38 m),
5' (1,53 m), 6' (1,83 m)
Track Rail
Stationary Plate Cap
Stainless Steel
Leveling Foot
Track Rail Joiner Star Washer
PARTS DESCRIPTION
Tools Required: Phillips Head Screwdriver,
Crescent Wrench, Rubber Mallet
This Side Up

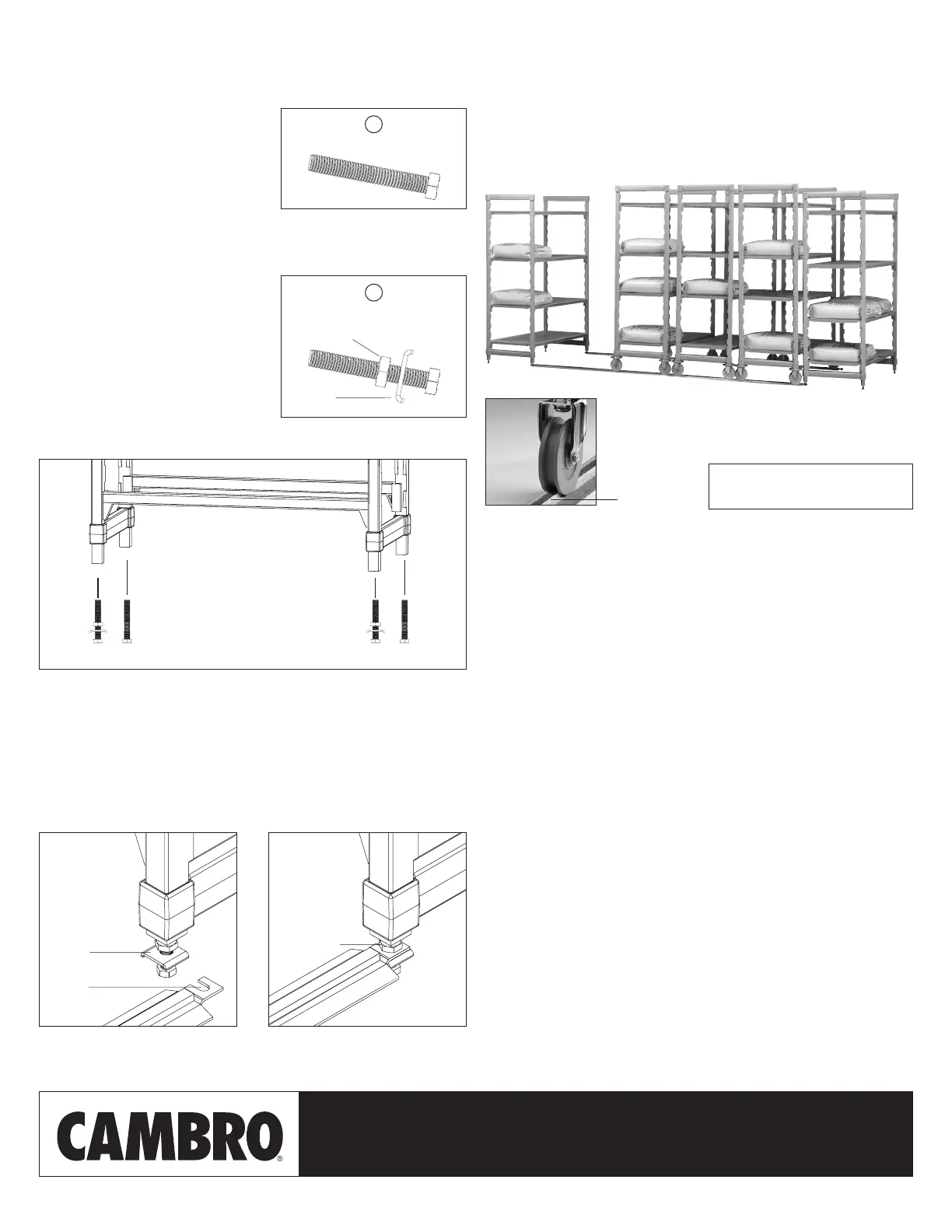

2
10. Assemble High Density Camshelving Mobile Units per instructions included in each kit.
Carefully lift and place each High Density Mobile Camshelving Unit (requires 2 people) onto
the tracks, ensuring the casters roll smoothly on each raised Track Guide.
11. Finish by adding Shelf Plates to Stationary and Mobile Units.
9. Place a Stationary Unit at each end of the track with the front facing the tracks. Adjust all of
the leveling feet so the unit sits flat on the floor surface. Slide the Track Rail Stationary End
Plate underneath the Track Rail Stationary Plate Cap (See Fig. 6). Secure in place and tighten
the
1
⁄2" (1,3 cm) Hex Nuts with a Crescent Wrench. This secures the Stationary Unit to the
tracks. (See Fig. 7).
Stationary Unit, Front
Track Rail Stationary
Plate Cap
Track Rail Stationary
End Plate
Fig. 6
1
⁄2" Hex Nut
Fig. 7
High Density Camshelving
®
Storage System Assembly Instructions
7. Screw in two Stainless Steel Leveling Feet (See
Fig. 3) to the back of each unit. (As shown in
Fig. 5)
A
Back Leveling Foot
Fig. 3
8. Place one Track Rail Stationary Plate Cap, with
the curved ends facing down to the base of the
foot, onto a Stainless Steel Leveling Foot. Add a
1
⁄2" (1,3 cm) Hex Nut. (See Fig. 4) Repeat for the
2nd Stainless Steel Leveling Foot. Screw each
one into the posts on the front of the unit. (See
Fig. 5) IMPORTANT: Do not adjust or tighten at
this time.
Fig. 4
½" Hex Nut
Track Rail Stationary
Plate Cap
Front Leveling Foot
B
A AB B
Fig. 5
MAXIMUM WEIGHT BEARING CAPACITY
Camshelving Stationary Units
24" (61 cm) Wide x 36" (91 cm), 42" (107 cm),
48" (122 cm) Long x 64" (163 cm) or 72" (183cm) High
800 lbs. per shelf
3200 lbs. per unit
High Density Camshelving Mobile Units with High Density Casters
750 lbs. (340 kg) per unit.
WARNING: DO NOT EXCEED maximum weight bearing capacity.
General Manufacturer’s Warranty
Cambro warrants to the original buyer a three-year pro-rated guarantee. If product proves
defective during this time, Cambro grants a pro-rated credit of the original price toward
replacement product. The warranty applies on all Cambro products only when used under
normal food service industry conditions.
Cleaning and Maintenance
Wipe clean with damp cloth.
UMHDTK
DURABILITY THAT MAKES A DIFFERENCE
®
© 2009 Cambro Manufacturing Company 5801 Skylab Road, Huntington Beach, CA 92647-2056, U.S.A.
Telephone 714 848 1555 Toll Free 800 854 7631 Customer Service Hot Line 800 833 3003 Printed in USA
MC_D11086 HD shelving Manual_1208 (US)
All specs are subject to change without prior notice.
CAUTION: Two people are required to lift
Mobile Unit onto Track Guide.
Track Guide
