ViewＡ

29

61

3.8

12

54.5

44.5

3.7

(Unit : mm)

62

90°

90°

168.1

φ40

139.4

66.6

76.5

B

C

A

ViewC

ViewB

160

φ40

φ28.25-φ28.45

(ENG/PD)

ISSwitch

Rose Joint

Display

Display Switch

Control Keys

Torque Adjusting Knob

Extender Selector Swich

Talk Back Switch

(Lights green when IS is on）

Grip

Thumb Ring

RET1Switch

AUX1Switch

Tracking Switch

(MEMO/OFF/ON)

MEMO Switch

AUX2 Switch

(A/S/B)

Rose Joint

Maximum Zoom Speed Adjusting Knob

Zoom Output Curve Selector Switch

Connector To Lens

RET2Switch

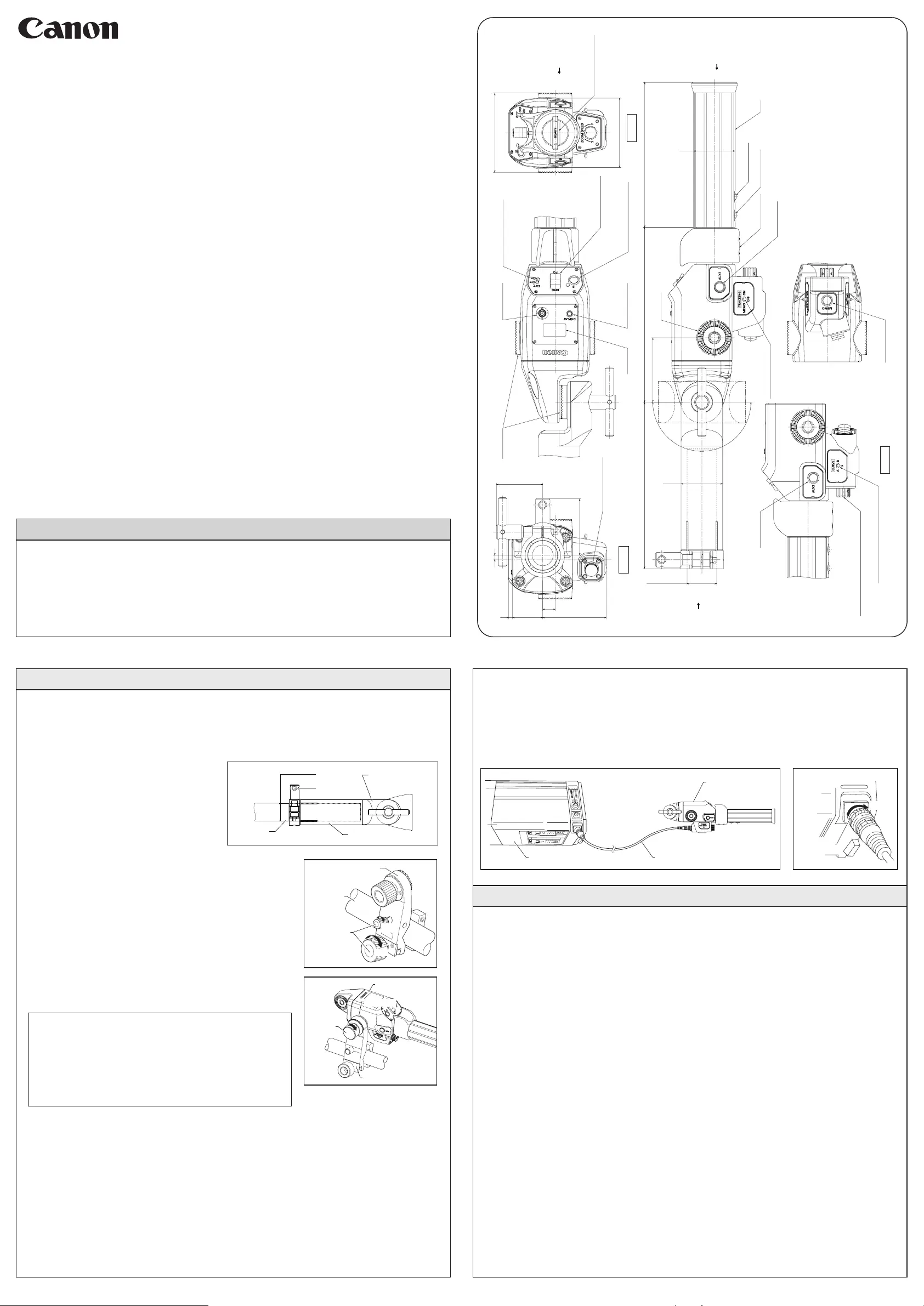

1/6© 2022.10 CANON INC. BT1-D019-A-ENG

2 MOUNTING AND CONNECTING

［

External view

］

2-1. Mounting the Zoom Demand

Mount the zoom demand onto the pan handle of the tripod by one of the two procedures

below.

A. For a demand that is put onto the pan handle

Put the sleeve onto the pan handle of

the tripod until it stops, then turn the

lock lever to secure the sleeve.

The applicable pan handle is

φ

28.25-

28.45 mm in diameter.

B. For a clamper(CR-30)-mounted demand

1. Loosen the large and small fastening knobs of the

clamper, then mount the clamper to the pan handle

of the tripod.

2. After mounting the clamper to the pan handle of the

tripod, tighten the large and small fastening knobs of

the clamper to secure the clamper.

3. Mate the rose joint of the zoom demand with the

rose joint of the clamper.

4. Tighten the mounting knob of the clamper rmly to x

the clamper to the zoom demand.

NOTE

1. The mounting angle of the zoom demand can be

adjusted according to how the rose joints are mated.

2. This zoom demand has three rose joints. Mount the

zoom demand using the rose joint at the desirable

position for easy operation.

Sleeve

Lock Lever

φ

28.25-28.45

Pan Handle

Clamper(cylinder type)

Lock

Lock

Fastening Knob

Clamper

(CR-30)

Pan Handle

Zoom Demand

Mounting

Knob

Clamper(CR-30)

Rose Joint

Lens

Demand Cable

Zoom Demand

TO SERVO CONTROL .

Lock

Fixing Ring

3-1. Zoom Operation

The lens is zoomed toward the telephoto end by turning the thumb ring of the zoom demand

clockwise, as viewed from the grip of the demand.

The lens is zoomed toward the wide-angle end by turning the thumb ring counterclockwise.

The zoom speed varies according to the rotation angle of the thumb ring.

During zooming, the approximate focal length can be checked with the indicator on the left

side of the lens, as viewed from the camera.

*



Specifying the zoom direction can be changed on the display. For details, refer to

［

Specifying the

zoom direction

］

in "5-7-4. Ctrl Screen".

3-2. Maximum Zoom Speed Adjustment

The maximum zoom speed obtained by completely turning the thumb ring of the zoom

demand can be changed with the maximum zoom speed adjusting knob.

Turn it clockwise to increase the zoom speed. And, turn it counterclockwise to decrease the

speed.

3-3. Torque Adjustment

Turning the torque adjusting knob on the zoom demand clockwise to increase the torque for

the thumb ring rotation.

To decrease the torque, turn the knob counterclockwise.

2-2. Connecting the Demand Cable

Follow the procedures below to connect the demand cable to the lens.

1. Plug the male connector of the demand cable into the receptacle labeled “TO SERVO

CONTROL” at the rear bottom of the lens, then turn the fixing ring of the connector

clockwise to tighten the demand cable securely.

2. Plug the other end of the cable into the connector on the zoom demand.

3 BASIC OPERATION AND FUNCTION

Make sure all of the following items are included in the packing box. If you nd any item

missing, please contact your dealer.

・

Zoom Demand

・

Clamper

（

cylinder type

）

・

Demand Cable

・

Operation Manual "Before Using The Product"

・

Operation Manual "Regulations"

1 PRODUCT LIST

Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"

and be sure to use the product correctly.

Thank you for purchasing a zoom demand ZDJ-G01. This zoom demand ZDJ-G01 is an

accessory used to perform zoom servo operations of a box type lens. The zoom can be

operated remotely by using this demand.

This product comes with the following documents:

• Operation Manual "Before Using The Product"

（

Included with the product

）

• Operation Manual "Regulations"

（

Included with the product

）

• Operation Manual

（

Web

）

Lens Accessory

Zoom Demand

ZDJ-G01

OPERATION MANUAL
