2 MOUNTING AND CONNECTING

2-1. Mounting the Zoom Demand

Mount the zoom demand onto the pan handle of the tripod by one of the two procedures below.

A. For a demand that is put onto the pan handle

Put the sleeve onto the pan handle of the

tripod until it stops, then turn the lock lever to

secure the sleeve.

The applicable pan handle is

φ

28.25-28.45

mm in diameter.

B. For a clamper(CR-30)-mounted demand

1. Loosen the large and small fastening

knobs of the clamper, then mount the clamper to the pan

handle of the tripod.

2. After mounting the clamper to the pan handle of the

tripod, tighten the large and small fastening knobs of the

clamper to secure the clamper.

3. Mate the rose joint of the zoom demand with the rose

joint of the clamper.

4. Tighten the mounting knob of the clamper rmly to x the

clamper to the zoom demand.

NOTE

1. The mounting angle of the zoom demand can be

adjusted according to how the rose joints are mated.

2. This zoom demand has three rose joints. Mount the

zoom demand using the rose joint at the desirable

position for easy operation.

2-2. Connecting the Demand Cable

Follow the procedures below to connect the demand cable to the lens.

1. Plug the male connector of the demand cable into the receptacle labeled “TO SERVO

CONTROL” at the rear bottom of the lens, then turn the fixing ring of the connector

clockwise to tighten the demand cable securely.

2. Plug the other end of the cable into the connector on the zoom demand.

Sleeve

Lock Lever

φ

28.25-28.45

Pan Handle

Clamper(cylinder type)

Lock

Lock

Fastening Knob

Clamper(CR-30)

Pan Handle

Zoom Demand

Clamper(CR-30)

Mounting

Knob

Rose Joint

1/2© 2022.10 CANON INC. BT1-D018-A-ENG

[

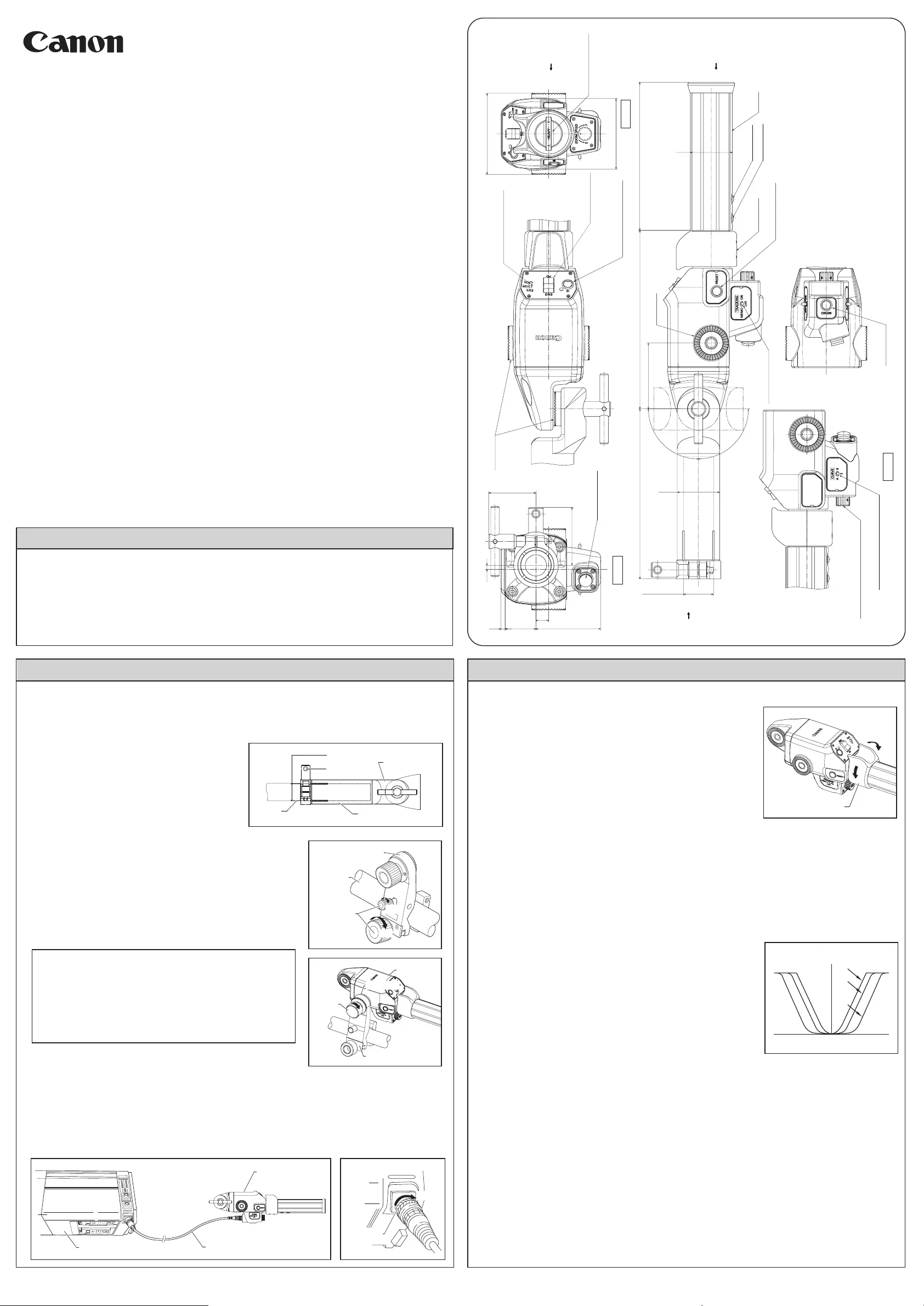

External view

]

66.6

76.5

View B

(ENG/PD)

29

61

3.8

3.7

44.5

ViewＡ

12

54.5

A

62

90°

160

φ40

168.1

Tracking Switch

(MEMO/OFF/ON)

139.4

B

φ40

(Unit : mm)

MEMO Switch

φ28.25-28.45

View C

C

Rose Joint

Extender Selector Switch

Torque Adjusting Knob

Talk-Back Switch

IS Switch

(Lights green when IS is on）

Connector to Lens

Grip

Frame Preset Switch

Thumb Ring

Rose Joint

(A/S/B)

Zoom Output Curve Selector Switch

Maximum Zoom Speed Adjusting Knob

90°

RET1 Switch

RET2 Switch

Make sure all of the following items are included in the packing box. If you find any item

missing, please contact your dealer.

・

Zoom Demand

・

Clamper

（

cylinder type

）

・

Demand Cable

・

Operation Manual "Before Using The Product"

・

Operation Manual "Regulations"

1 PRODUCT LIST

3 OPERATION AND FUNCTION

3-1

.

Zoom Operation

The lens is zoomed toward the telephoto end by turning the thumb

ring of the zoom demand clockwise, as viewed from the grip of the

demand.

The lens is zoomed toward the wide-angle end by turning the

thumb ring counterclockwise.

The zoom speed varies according to the rotation angle of the

thumb ring.

During zooming, the approximate focal length can be checked

with the indicator on the left side of the lens, as viewed from the

camera.

3-2. Maximum Zoom Speed Adjustment

The maximum zoom speed obtained by completely turning the thumb ring of the zoom demand can

be changed with the maximum zoom speed adjusting knob.

Turn it clockwise to increase the zoom speed. And, turn it counterclockwise to decrease the speed.

3-3. Torque Adjustment

Turning the torque adjusting knob on the zoom demand clockwise to increase the torque for the

thumb ring rotation.

To decrease the torque, turn the knob counterclockwise.

3-4.Selecting the Zoom Output Curve

Zoom speed characteristic curve (zoom output curve) with respect

to the rotation angle of thumb ring is selectable among three kinds.

Use the zoom output curve selector switch “Curve” for selecting a

zoom output curve.

3-5.Talk Back (Microphone)

Operation

When the camera has a talk back function, the talk back switch on

the top of the zoom demand can be used.

When it is pushed to “ENG” side, it is locked and a cameraman

can talk with an engineering sta󰀨. So long as it is pushed to “PD”

side, a cameraman can talk with a producer.

3-6.Return Operation

There are two RET switches (RET1, RET2) on the grip of the zoom demand.

While the RET switch is held down, on air picture/being recorded picture can be seen in the

viewnder through camera control system when multi cameras are connected to its system.

3-7.Extender Selector Switch

Operate the extender by switching the extender selector switch on the zoom demand.

“ON” side : Extender function is enabled

“OFF” side : Extender function is cancelled(1x)

Lens

Demand Cable

Zoom Demand

TO SERVO CONTROL .

Lock

Fixing Ring

Thumb Ring

0

←　Rotation angle of thumb ring　→

A

S

B

Output Curve

← 0　Zoom Speed　→ MAX

Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"

and be sure to use the product correctly.

Thank you for purchasing a zoom demand ZDJ-S01. This zoom demand ZDJ-S01 is an

accessory used to perform zoom servo operations of a box type lens. The zoom can be

operated remotely by using this demand.

This product comes with the following documents:

• Operation Manual "Before Using The Product"

（

Included with the product

）

• Operation Manual "Regulations"

（

Included with the product

）

• Operation Manual

（

Web

）

Lens Accessory

Zoom Demand

ZDJ-S01

OPERATION MANUAL
