Seite 1/2
Caroma International Pty Ltd. ABN 90 35 053 413 157
Rough in:
It is possible to fix the toilet into 10” (255mm) or 12” (305mm)
rough in positioins by rotating the offset adaptor.
IMPORTANT:
Reducing wax ring MUST NOT be used when installing this
toilet bowl as detailed in Fig.2.
Working Water Pressure:
USA & Canada: Recommended working water pressure is
20-80psi (140-550Kpa).
Installation Procedure:
Date of Issue: 7/29/2014
Standard Wax Bowl
Ring
Reducing Wax Bowl
Ring
Fig.2
Caravelle Smart One Piece
1.28/0.8 gpf (4.8/3 lpf) Easy
Height Elongated Toilet
#989900
Vitreous China Dual Flush
High Efficiency (HET),
O n e Piece Ultra Low Flush
(ULF) Washdown Toilet.

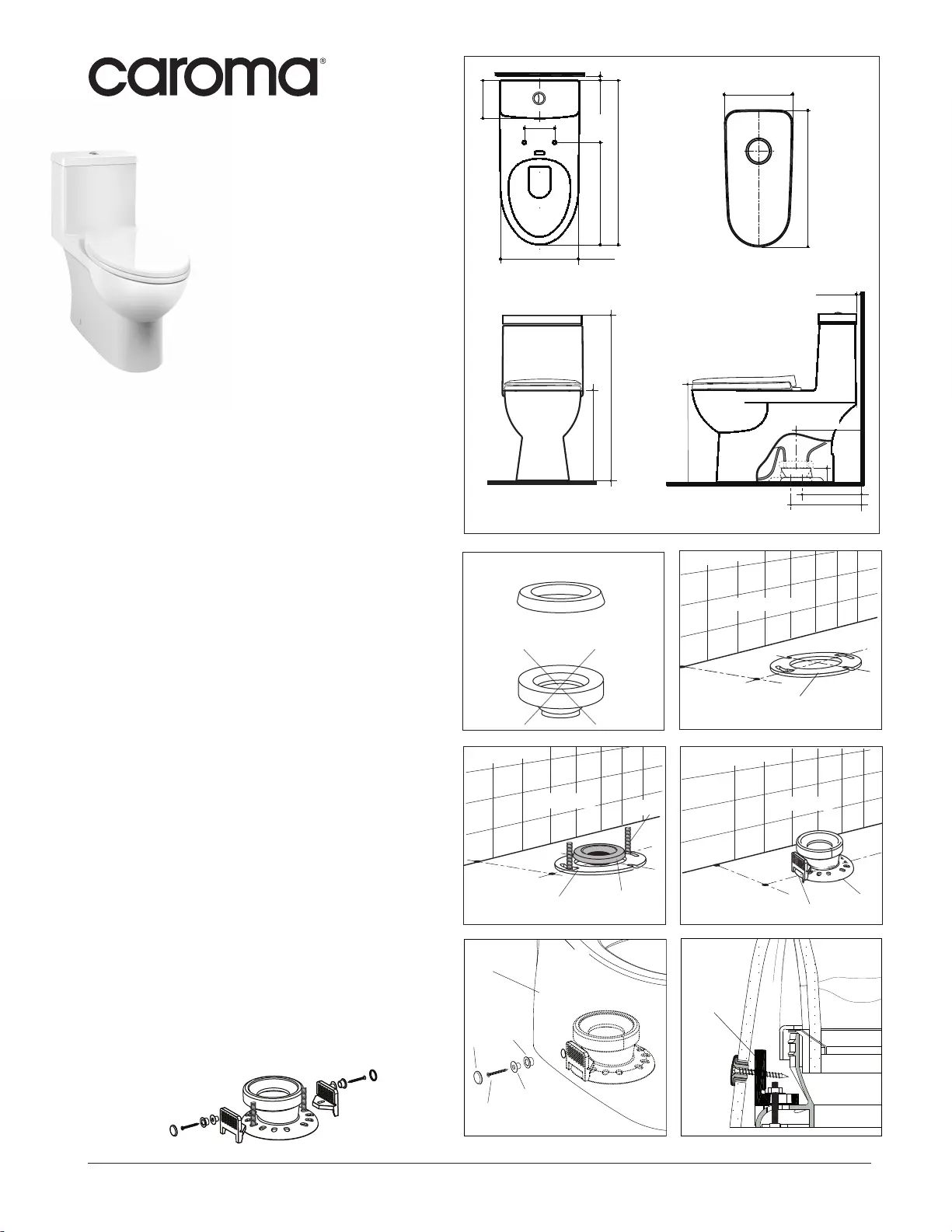

PLUMBERS INSTALLATION INSTRUCTIONS. PLEASE
READ CAREFULLY BEFORE INSTALLATION.
1. It is important for the installation of Caravelle Smart 1 PC
Washdown toilet that the closet flange be accurately set out
from the finished wall as detailed in Fig.3.
2. Position wax seal and offset adaptor onto “T” bolts as
detailed in Fig. 4 and 5, ensuring that the offset adaptor is
positioned for 10” (255mm) or 12” (305mm) rough in as
detailed in Fig.1.
4. Ensure that the area around the closet bowl is clean and
free from building materials.
6. It is recommended that a bead of silicone caulking is
applied fully around base of the closet bowl.
2"
(50mm)
11"
(280mm)
12”(305mm)
10”(255mm)
6-7/8”
(175mm)
13/16”
(20mm)
29-15/16”
(760mm)
18-1/2”
(470mm)
5-1/2”
(140mm)
14-1/8”
(360mm)
30-3/8”(770mm) approx.
16-1/2”(420mm)
18”(455mm) to top of seat
3/4”
(20mm)
21-1/4”
(540mm)
10-3/4”
(272mm)
Closet Flange
Finished Wall
12" or 10"
(305mm or 255mm)
Closet Flange
Wax Seal
Finished Wall
12" or 10"
(305mm or 255mm)
'T' Bolt
Adaptor
Finished Wall
12" or 10"
(305mm or 255mm)
Fixing
Bracket
Fixing
Bracket
Caravelle Bowl
Cap
SS Screw
Brass Bush
Plastic
Bush
3. Place fixing bracket onto “T” bolt and secure it by hand
tightening nuts and washers onto the “T” bolts. Apply an
additional turn for final installation as detailed in Fig.5.
5. Accurately align the closet bowl over the offset adaptor
and lower into position.
7. Remove any excess silicone caulking.
8. Insert the plastic bushing and brass bushing into the Bowl
fixing hole as shown in Fig.6. Secure the bushings through
the holes in fixing bracket with SS screws as shown in Fig. 7.
Cover the holes with caps.
Fig.1
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fixing Bracket Assembly

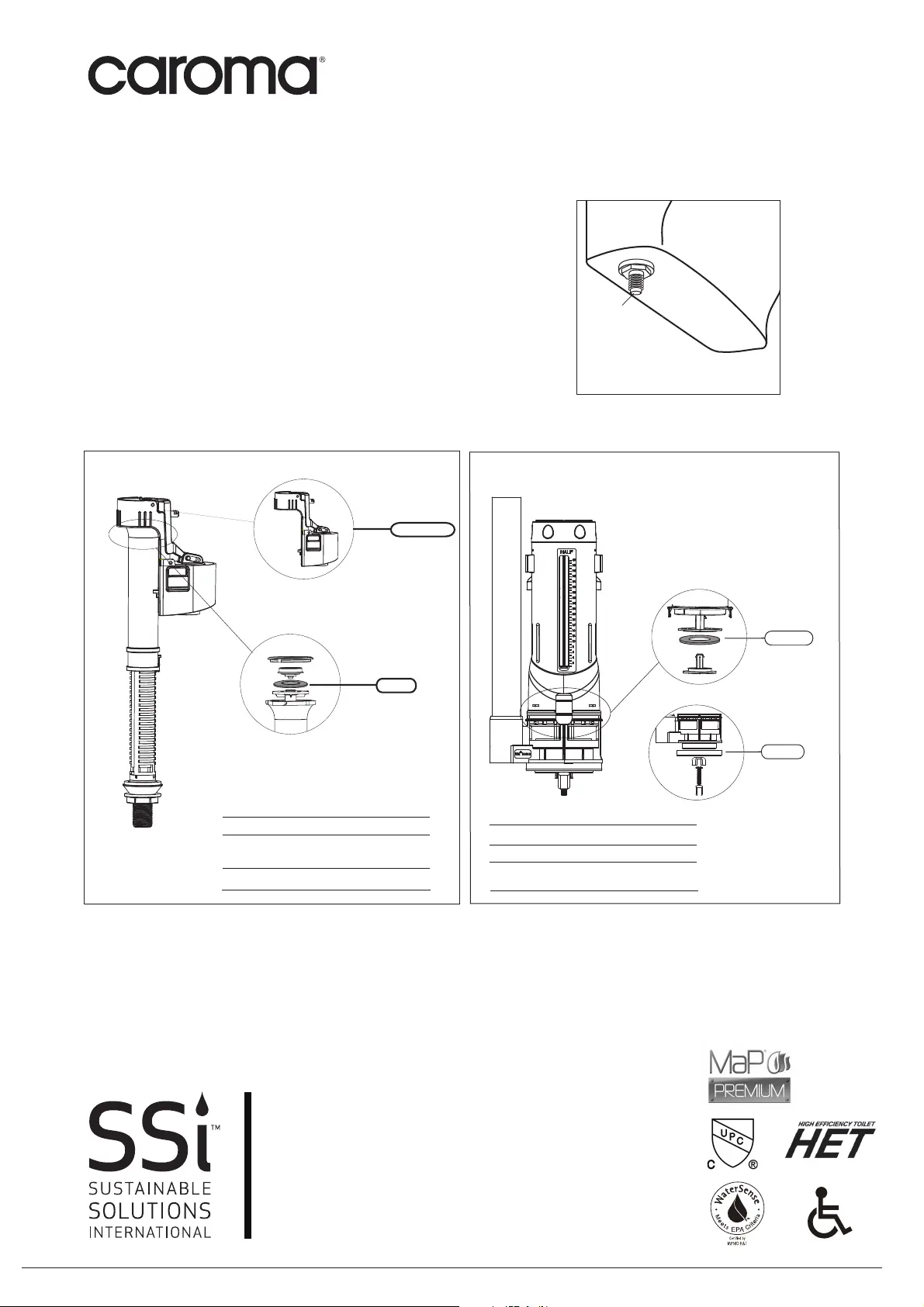

Inlet Valve Replacement Parts
Code Part Description
30835-1 Rubber Gasket
B3300-MA Inlet Valve Floater
TOP
B3300-MA Inlet Valve
Tank Spare Parts
For spare parts contact:
Caravelle Smart One Piece 1.28/0.8 gpf (4.8/3 lpf) Easy Height Elongated Toilet
Vitreous China Dual Flush High Efficiency (HET), One Piece Ultra Low Flush (ULF)
Washdown Toilet #989900
CLEANING INSTRUCTIONS FOR VITREOUS CHINA:
To preserve the glazed surface, this toilet should be cleaned only with a mild household
detergent or warm soapy water. Do not use any abrasive cleaners in the tank or bowl as
this can damage the glazing.
30835-1
Outlet Valve Replacement Parts
Caroma International Pty Ltd. ABN 90 35 053 413 157
Date of Issue: 7/29/2014
30795 Outlet Valve Diaphram Seal
B4910T-U Outlet Valve 1.28/0.8 Gal
(4.8/3 L)
30795
B3300-MA TOP
Code Part Description
30296-2
30296-2 Rubber Seal
Under license from Caroma Industries Limited, Australia
Manufactured by SSI Sustainable Solutions International
Telephone: (604) 430.2020
Fax: (604) 430.5050
Toll Free: (800) 460.7019
help@sustainablesolutions.com
www.caromausa.com www.sustainablesolutions.com
Los Angeles, CA + Vancouver, BC
9. Connect water supply to inlet valve connection end as detailed in Fig.8
and check operation.
Note: Tapered rubber seal and wing nut assembled at inlet valve connection
end is for 3/8” hard tube/pipe connection. Remove them if 7/8“ ballcock braided
hose is used.
Inlet Valve
Connection
End
Water Connection
Detail
Fig. 8
All measurements are subject to accepted manufacturing tolerances. To ensure complete
accuracy,
please check actual product dimensions before drilling for installation.
The manufacturer reserves the right to change specifications at any time without giving prior
notification.
This product should be installed by a qualified plumber. Local authority, Water Board, and
Building Regulations may apply to the installation of this product, and you should consult
the appropriate bodies on these requirements. Failure to comply may invalidate the product
warranty.
