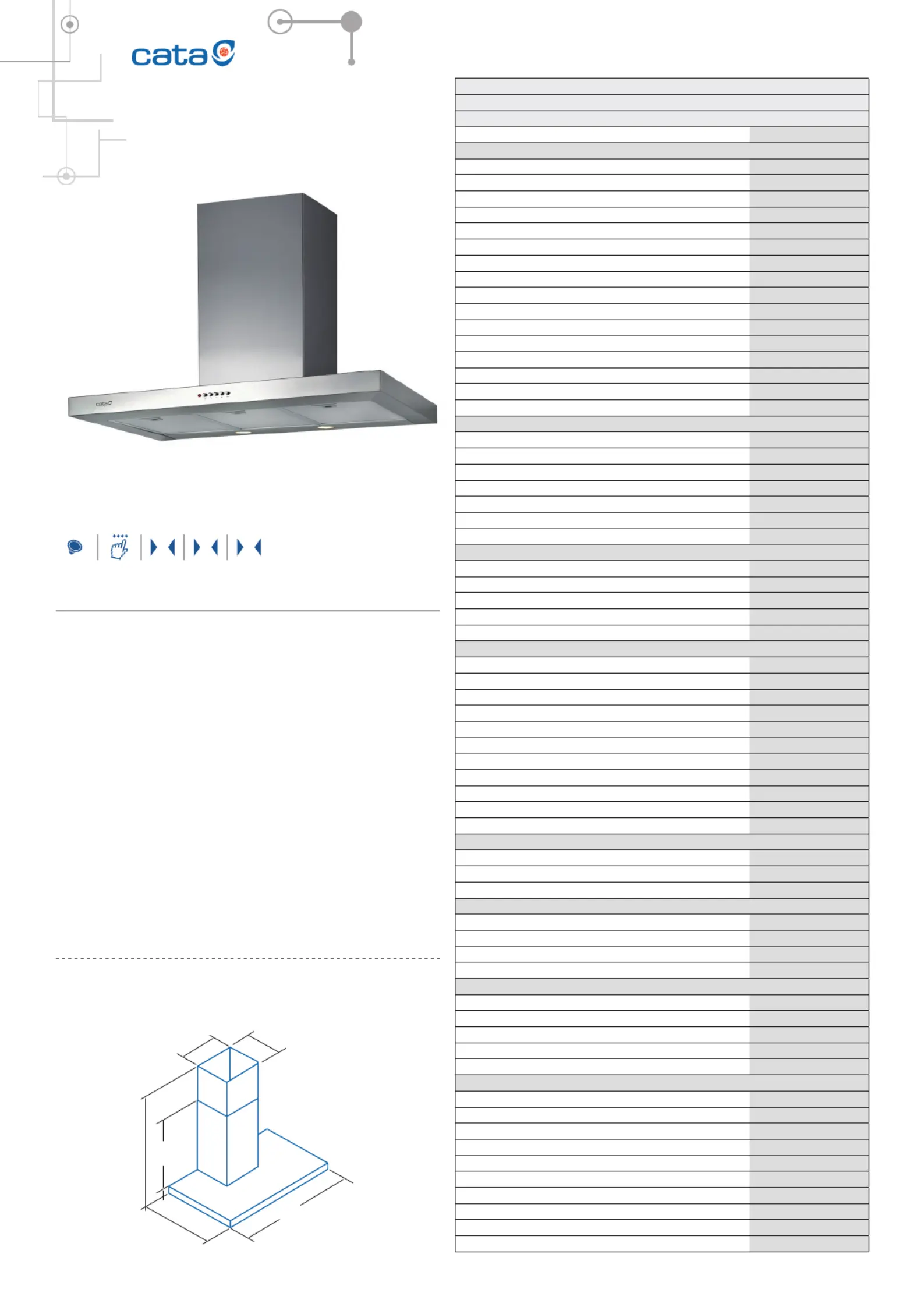

Seite 1/1

m70

LED

290

540

500

600 / 700 / 900

Mín. 730 / Máx. 1045

320

Cod. 02060600 EAN 8422248087094

S PLUS 600 X

S PLUS

DECORATIVES

Code 02060600

EAN 8422248087094

Model S PLUS 600 X

Type Box

Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564

AEC (Anual Energy consumption) (kWh/annum) 102,5

EEI class (Energy Eiciency Class) C

FDE (Fluid Dynamic Eiciency) 16,3

FDE class (Fluid Dynamic Eiciency Class) D

LE (Lighting Eiciency) (lux/W) 36

LE class (Lighting Eiciency Class) A

GFE (Grease Filtering Eiciency) 88,5

GFE Class (Grease Filtering Eiciency class) B

Air flow at minimum speed (m 3/h) 385

Air flow at maximum speed (m 3/h) 645

Air flow at intensive speed (TURBO) (m 3/h) -

Sound Power Level at minimum speed (dB) 56

Sound Power Level at maximum speed (dB) 74

Sound Power Level at intensive speed (TURBO) (dB) -

Po (Power Consumption in o mode) (W) 0

Ps (Power Consumption in standby) (W) 0

Integration directive EU 66/2014

ƒ (Time Increase Factor) 1,4

EEI (Energy Eiciency Index) 83,4

QBEP (Flow Rate at Best Eiciency Point) (m3/h)

375,3

PBEP (Static Pressure Dierence at Best Eiciency Point) (Pa) 295

WBEP (Electric Power Input at Best Eiciency Point) (W) 188

WL (Nominal Power Consumption of Lighting system) (W) 7

EMIDDLE (Average Illumination of Lighting system on Cooking surface) (lux) 188,8

External Dimensions

Width (mm) 600

Depth (mm) 500

Total max height (mm) 1045

Total min height (mm) 730

Outlet Diameter (mm) 150/125

Characteristics

Motor M3R

Extraction Levels 3

Motor Maximum Power Consumption 270

Maximum Pressure 430

Intensive Speed (TURBO) Pressure -

Control Type Mechanic

Automatic shut-down timer -

Electronic Filter Saturation Indicator -

Filter Type Metallic

Anti-grease Filter Number 2

Inner Shield -

Lighting

Light Type EcoLed

Adjustable Intensity Lighting -

Nº of Lamps 2

Installation

Minimum height distance to a electric worktop hob (mm) 650

Minimum height distance to a gas worktop hob (mm) 650

Instalation with Outlet tube to the exterior / Recirculating BOTH

Easy Instalation System √

Electric Connection

Total Rush Power (W) 277

Rated Voltage (V) 220-240

Network Frequency (Hz) 50

Electrical Insulation Class CLASS II

Plug EU - 2 pins

Accessories

Upper Decorative tube Extension 02861301

White Decorative Tube -

Black Decorative Tube -

Island Tube Enhancer -

Check Valve 02832001

MAX PRO Metal Filter 02800917

Metal Filter 02800905*

DUAL Filter (metal + active charcoal) 02800918

Active Charcoal Filter 02859391

Noiseless Flexible Duct 02893002

❒

Mechanical Control Panel

❒

3 extraction levels

❒

Extraction power (according to UNE/EN 61591): 645m

/h - 385m

❒

Maximum air flow (free outlet): 1150m

❒

Sound power (Reg.(EU) nº65/2014): 57dB(A), maximum: 71dB(A)

❒

Motor M3R. Extra silent. Maximum energy consumption 270W

❒

High eiciency LED lighting

❒

Easy-to-install system

❒

Dishwasher-washable filters

❒

Finished in Stainless steel

❒

Max. Pressure 430 Pa

❒

150/125 mm Outlet diameter

❒

Energy Class: C

▶ Accessories

(not included)

Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cod. 02859391 / EAN 8422248001595 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Check valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cod. 02832001 / EAN 8422248044677 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Top tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cod. 02861301 / EAN 8422248031073 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
