Seite 1/12

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

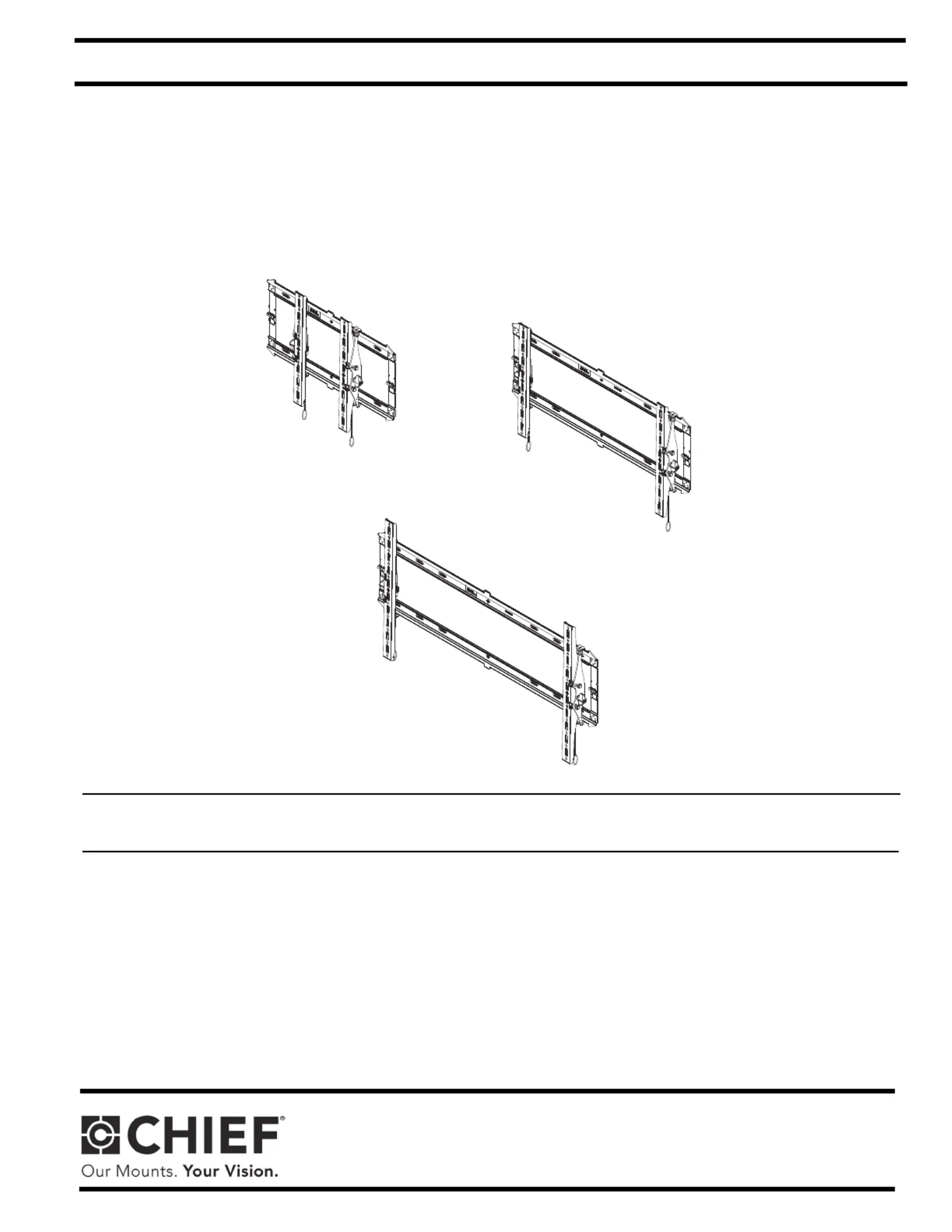

RMT2

RLT2

RXT2

Universal Tilt Mounts

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

RMT2/RLT2/RXT2

RMT2/RLT2/RXT2 Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT SAFETY INSTRUCTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component. The wall to which the mount is being attached

may have a maximum drywall thickness of 5/8" (1.6cm). Do

not install drywall anchors into the seam between drywall

pieces.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached does not exceed 125 lbs (56.7 kg)

for the RMT2 and RLT2 or 175 lbs (79.4 kg) for the RXT2.

Use with products heavier than the maximum weight

indicated may result in collapse of the mount and its

accessories causing possible injury.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The RMT2/RLT2/RXT2 mounts are

designed

to be mounted to an 8" concrete, 8"x8"x16" concrete block, or

2" x 4" wood studs.

--SAVE THESE INSTRUCTIONS--

Installation Instructions RMT2/RLT2/RXT2

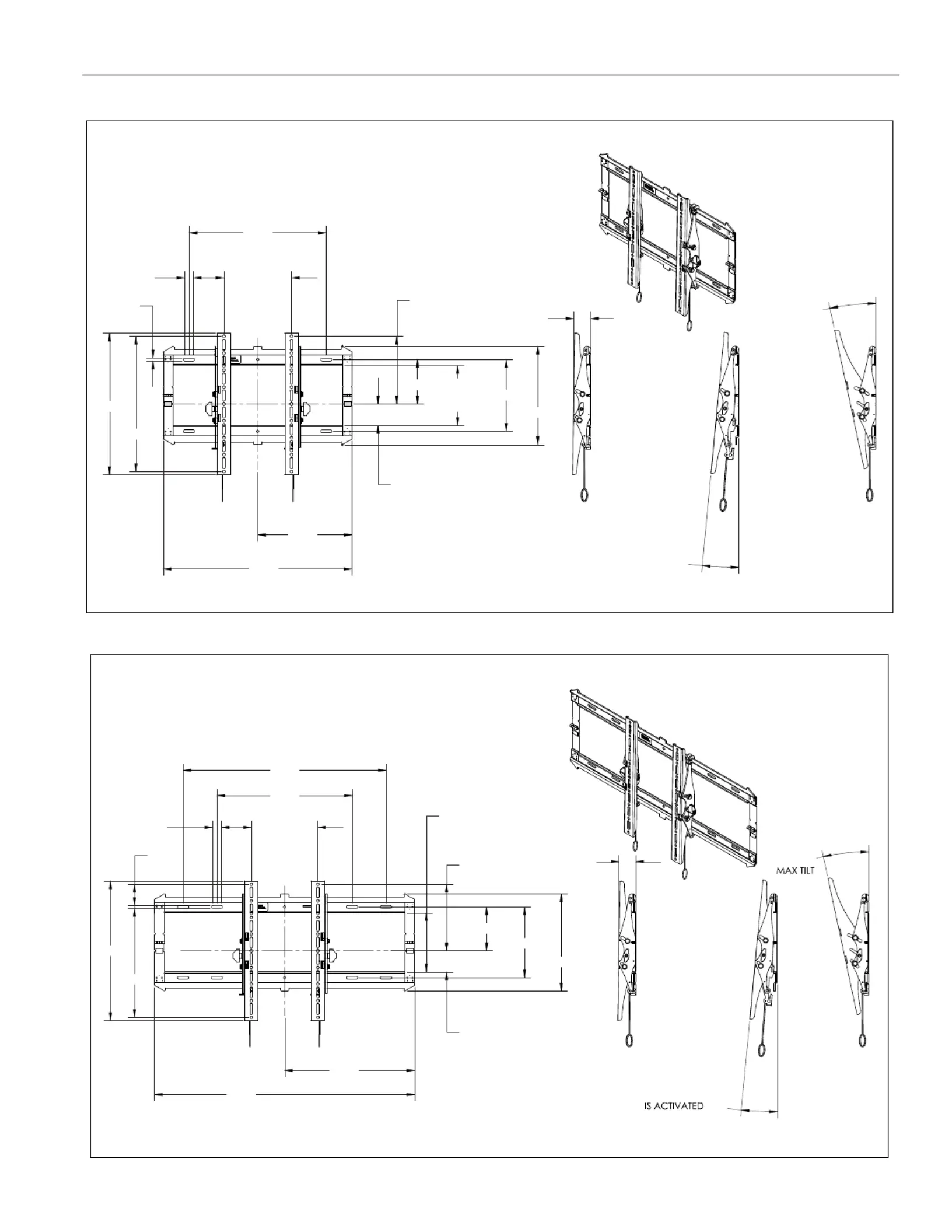

DIMENSIONS-RMT2

DIMENSIONS-RLT2

16.50

15.75

MAX

19.94

7.87

TOP MOUNTING

HOLE TO CENTERLINE

NOTCH ON WALL PLATE

7.00

WALL

OPENING

2.50

CENTERLINE

TO BOTTOM OF

WALL PLATE

OPENING

22.00

.34

1.00

8.38

11.00

16.00

5.19

11.49

1.96

- TILTS BACK 5.4°

-CABLE ACCESS

WHEN KICKSTAND

IS ACTIVATED

12°

MAX TILT

16.50

15.75

MAX

28.69

7.87

TOP MOUNTING

HOLE TO CENTERLINE

NOTCH ON WALL PLATE

7.00

WALL

OPENING

30.75

.34

1.00

8.38

15.38

16.00

5.19

24.00

2.50

CENTERLINE

TO BOTTOM OF

WALL PLATE

OPENING

11.49

1.96

- TILTS BACK 5°

-CABLE ACCESS

WHEN KICKSTAND

12°

Produktspezifikationen

Marke:	Chief
Kategorie:	Flachbildschirmunterstützung
Modell:	RLT2
Breite:	781 mm
Tiefe:	49.78 mm
Produktfarbe:	Schwarz
Höhe:	419 mm
Befestigungstyp:	Wand
Höchstgewichtskapazität:	56.7 kg
Warentarifnummer (HS):	85299097
Gehäusematerial:	Metall
