Seite 1/12

I N S T A L L A T I O N I N S T R U C T I O N S

Flat Panel Floor Support System

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

AVSFSS

AVSFSS Installation Instructions

DISCLAIMER

Legrand AV and its affiliated corporations and subsidiaries |

(collectively “Legrand AV”), intend to make this manual |

accurate and complete. However, Legrand AV makes no claim |

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand AV |

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand AV |

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

and/or another mounting system is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached or resting on can support five times the combined

weight of all equipment. Reinforce the structure as required

before installing the mounting system. Do not install drywall

anchors into the seam between drywall pieces.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components and mounting systems attached to the top

uprights of the AVSFSS does not exceed 217 lbs (98.4 kg).

The combined weight of all components attached to the

mounting system being attached to the AVSFSS cannot

exceed the specific weight limit for that mounting system. The

combined weight of all components attached to the

component storage panel cannot exceed 20 lbs (9.07 kg).

See Figure below.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this mounting system outdoors.

IMPORTANT ! : The AVSFSS mounting system is

compatible with the following Chief® mounting systems:

LTM1U, LSM1U, RXF2, RLF2, RMF2, MTM1U, MSM1U.

Do NOT use with any other mounting system!

IMPORTANT ! :

The AVSFSS

mounting system

is designed

to be mounted to one of the following surfaces:

• a sheetrock drywall with a thickness of 1/2" to

5/8" supported by 16" or 24" wood or steel studs;

• a bare concrete wall with a minimum thickness of

8" (203mm); or

• a bare 8" x 8" x 16" (203mm x 203mm x 406mm)

concrete block wall;

IMPORTANT ! : The AVSFSS mounting system needs to

be attached to a sheetrock drywall which is supported by

16" or 24" wood or steel studs, however it does NOT

need to be attached to these studs directly.

--SAVE THESE INSTRUCTIONS--

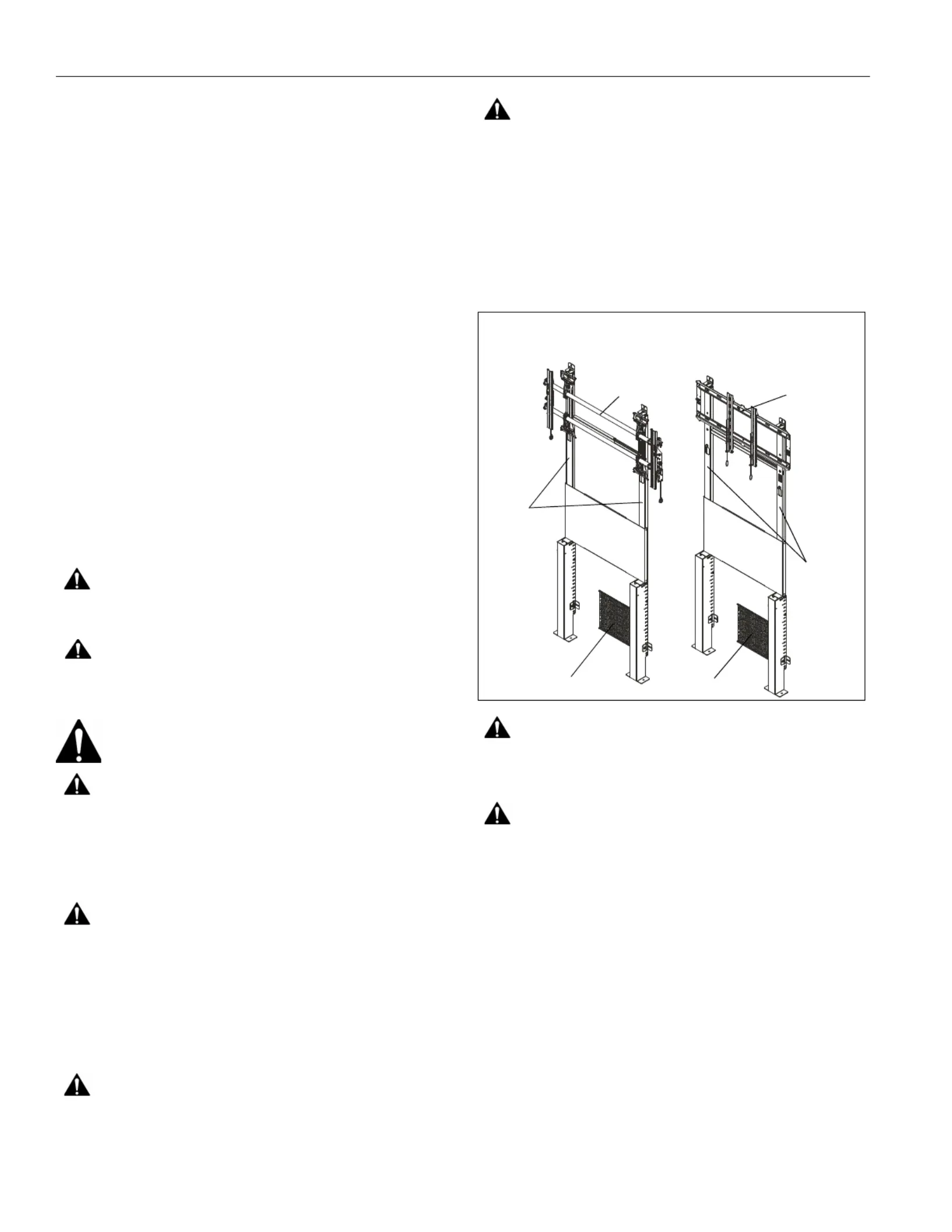

200 lbs (90.7 kg)

20 lbs (9.07 kg)

125 lbs (56.7 kg)

LTM1U

RLF2

(example)

*217 lbs (98.4 kg) combined for all components and

mounting systems attached to top uprights of AVSFSS

217 lbs*

(98.4 kg)

217 lbs*

(98.4 kg)

top uprights

Installation Instructions AVSFSS

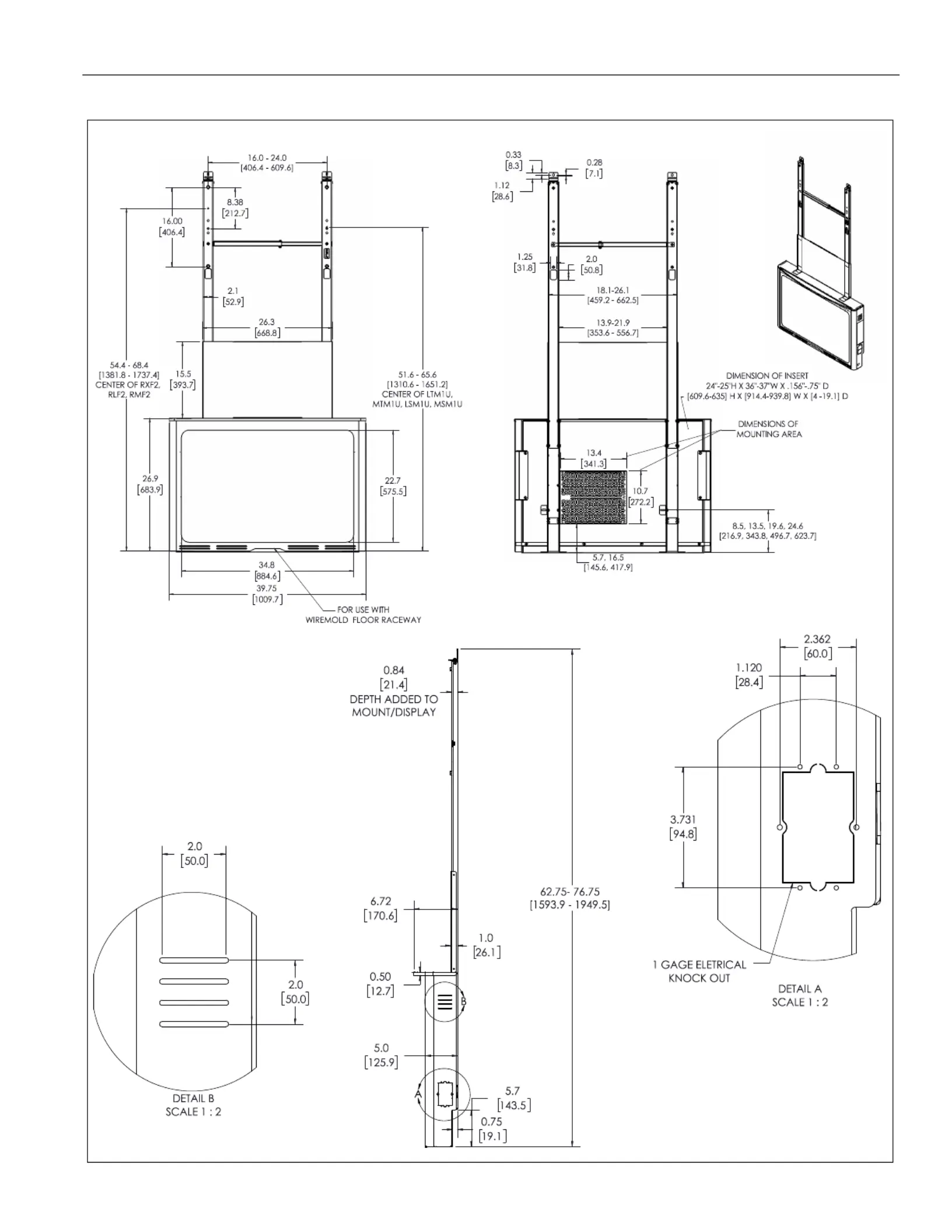

DIMENSIONS

Produktspezifikationen

Marke:	Chief
Kategorie:	Flachbildschirmunterstützung
Modell:	AVSFSS
Breite:	1009 mm
Tiefe:	126 mm
Produkttyp:	Bodenstütze
Produktfarbe:	Schwarz
Höhe:	1949 mm
Höhenverstellung:	Ja
Höchstgewichtskapazität:	90.7 kg
Menge pro Packung:	1 Stück(e)
Kompatibilität:	Chief LTM1U, MTM1U, LSM1U, MSM1U, RXF2, RLF2, RMF2.
Höhenanpassungsrate:	1594 - 1949 mm
Maximale Bildschirmgröße:	100 "
Minimum Bildschirmgröße:	46 "
