Seite 1/15

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Extra Large Height Adjustable Video Cart

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

XPA1U

XPA1U Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively “Milestone”), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems/

accessories are properly assembled and installed using the

instructions provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this product outdoors.

WARNING: RISK OF INJURY TO PERSONS! Do not

place video equipment such as televisions or computer

monitors on cart legs.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all accessories and components attached to the XPA1U head

assembly up to (and including) the display does not exceed

300 lbs (136 kg). Use with heavier televisions may result in

instability causing tip over resulting in death or serious injury.

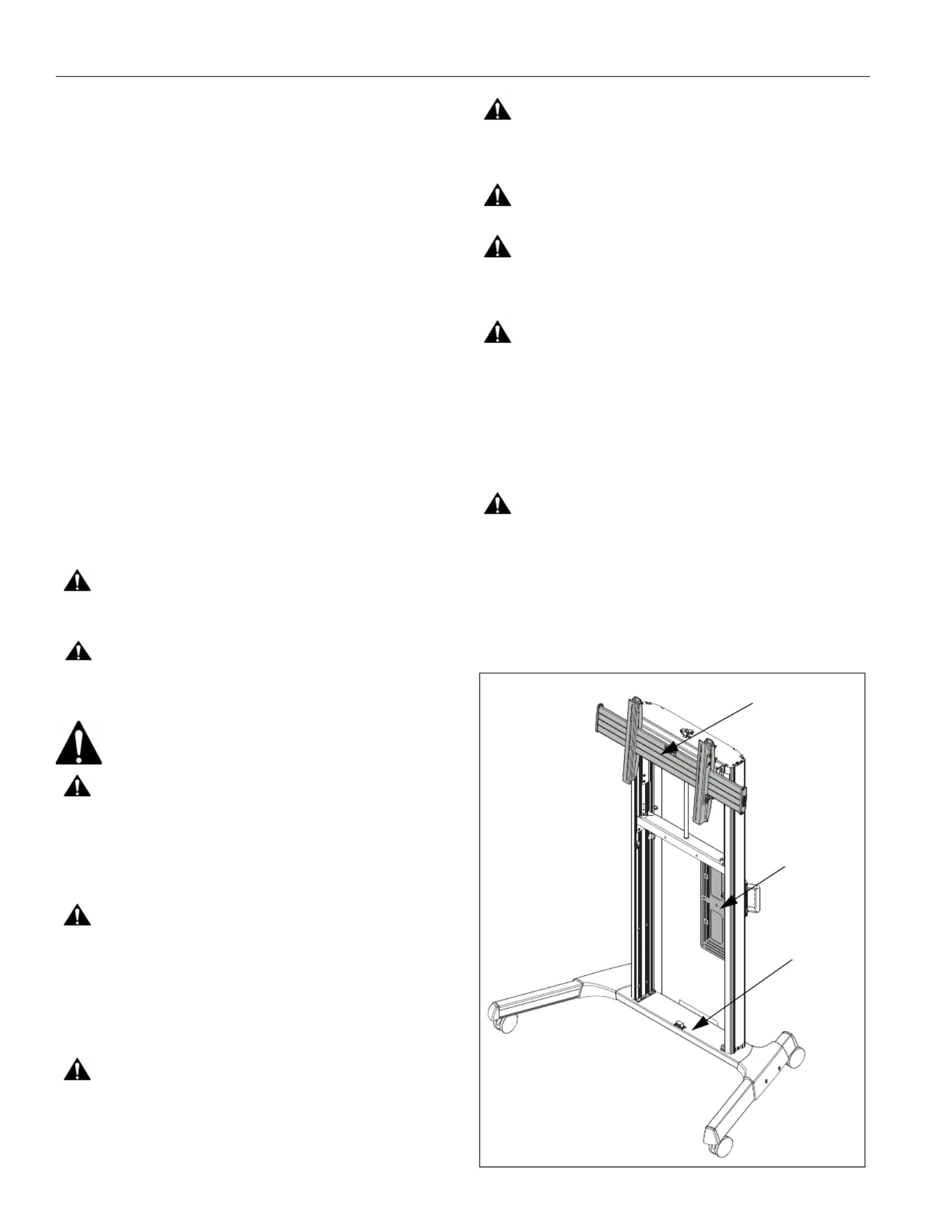

See Figure below for reference.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all accessories and components installed to the component

bracket (C) does not exceed 10 lbs (4.54 kg). The combined

weight of all accessories and components installed to the

lower bracket (CPU’s, etc.) cannot exceed 20 lbs (9.07 kg).

Exceeding the weight capacity may result in damage to the

equipment or components! See Figure below for reference.

300 lbs (136 kg)

10 lbs (4.54 kg)

20 lbs (9.07 kg)

Installation Instructions XPA1U

WARNING: RISK OF SERIOUS INJURY OR DEATH!

Placing a remote control or toy on the cart may encourage a

child to climb onto the cart causing the cart to tip over onto

the child. DO NOT place remote controls or toys on the cart!

WARNING: RISK OF SERIOUS INJURY OR DEATH!

Relocating audio and/or video equipment to the cart may

result in the cart collapsing or overturning onto a child. DO

NOT relocate audio and/or video equipment to the cart!

NOTE: The XPA1U cart has no user serviceable parts.

NOTE: The XPA1U cart can support screen sizes up to a

maximum of 100" wide.

NOTE: The XPA1U cart may be used with the UL Listed

FCA624 Dual Monitor Extension Accessory.

--SAVE THESE INSTRUCTIONS--

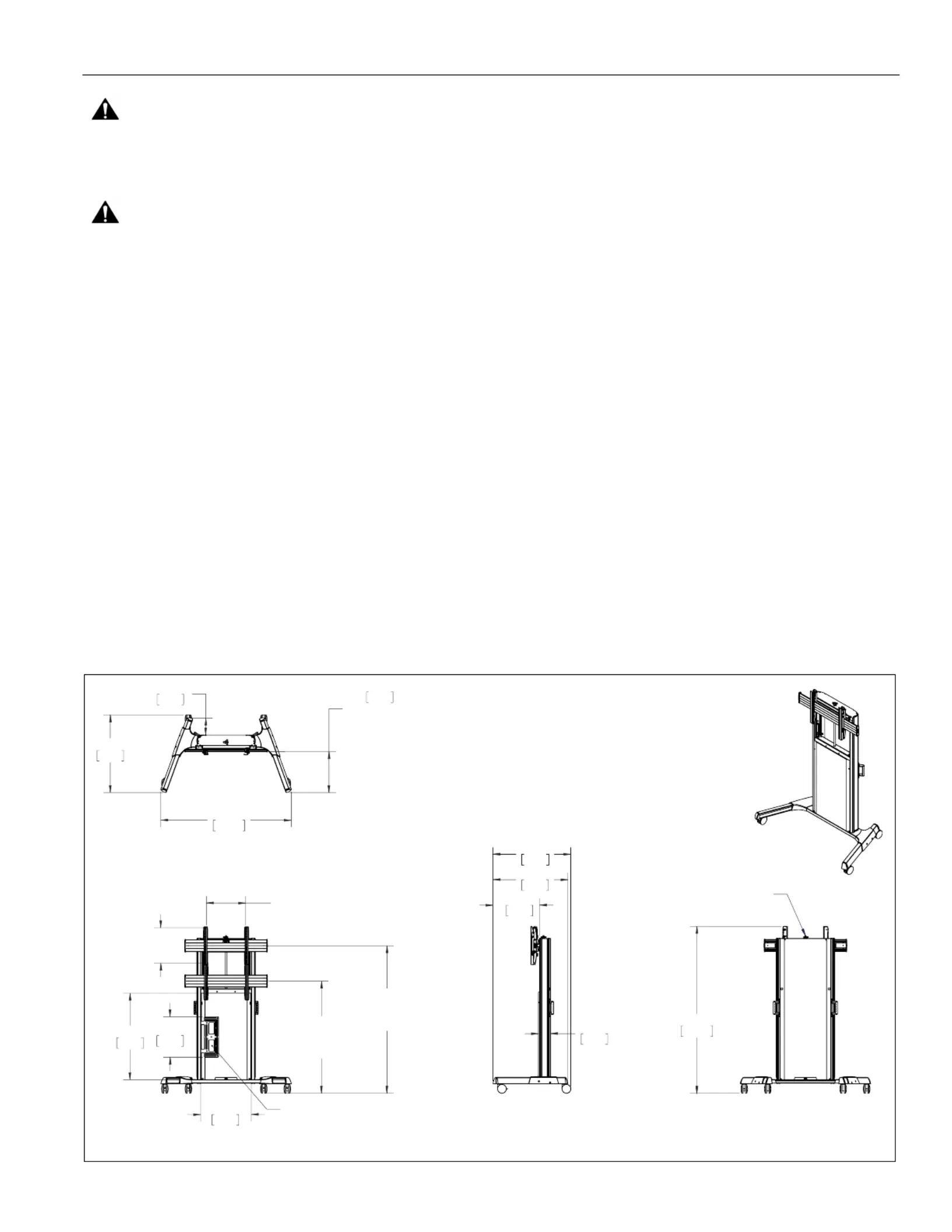

DIMENSIONS

65.43

[1661.8]

MAX HEIGHT TO

CENTER OF DISPLAY

47.77

[1213.3]

MIN HEIGHT TO

CENTER OF DISPLAY

7.87 [200] MIN

31.50[800] MAX

15.75

[400]

22.50

571.5

38.50

977.9

18.00

457.2

SHOWN WITH FRONT COVER REMOVED

MAXIMUM ACCESSORY

DEPTH IS 4.25"

33.23

844.0

20.67

525.0

5.37

136.4

34.57

878.0

34.57

878.0

57.97

1472.4

7.50

190.5

18.21

462.7

FROM INTERFACE

TO FRONT OF

CART

74.22

1885.2

HEIGHT

ADJUST KNOB AND 1/2"

DRILL DRIVE

Produktspezifikationen

Marke:	Chief
Kategorie:	Flachbildschirmunterstützung
Modell:	XPA1UB
Breite:	- mm
Tiefe:	- mm
Gewicht:	- g
Produktfarbe:	Schwarz
Höhe:	- mm
Höhenverstellung:	Ja
Befestigungstyp:	Flur
Höchstgewichtskapazität:	136.1 kg
AC Eingangsfrequenz:	- Hz
Betriebstemperatur:	- °C
Relative Luftfeuchtigkeit in Betrieb:	- %
Zertifizierung:	UL
Warentarifnummer (HS):	85299097
Typ:	Tragbarer Bodenständer
Stromverbrauch (Standby):	- W
Luftfeuchtigkeit bei Lagerung:	- %
Panel-Montage-Schnittstelle:	200 x 200,800 x 400 mm
Ein-/Ausschalter:	Nein
Fernbedienung:	Nein
Anzahl der Räder:	4 Rad/Räder
Abschließbare Räder:	Ja
Höhenanpassungsrate:	- mm
Maximale Bildschirmgröße:	100 "
Anpassbar:	Ja
Anzahl der Display unterstützt:	1
Minimum Bildschirmgröße:	55 "
Minimale VESA-Halterung:	200 x 200 mm
Maximale VESA-Halterung:	800 x 400 mm
Verbessertes Kabelmanagement:	Ja
Motorisiert:	Nein
Höhenanpassungsart:	Manuell
Sockel:	H-förmig
