PAGING HORNS

SX15-T, SX15-TM, SX30-T, SX30-TM

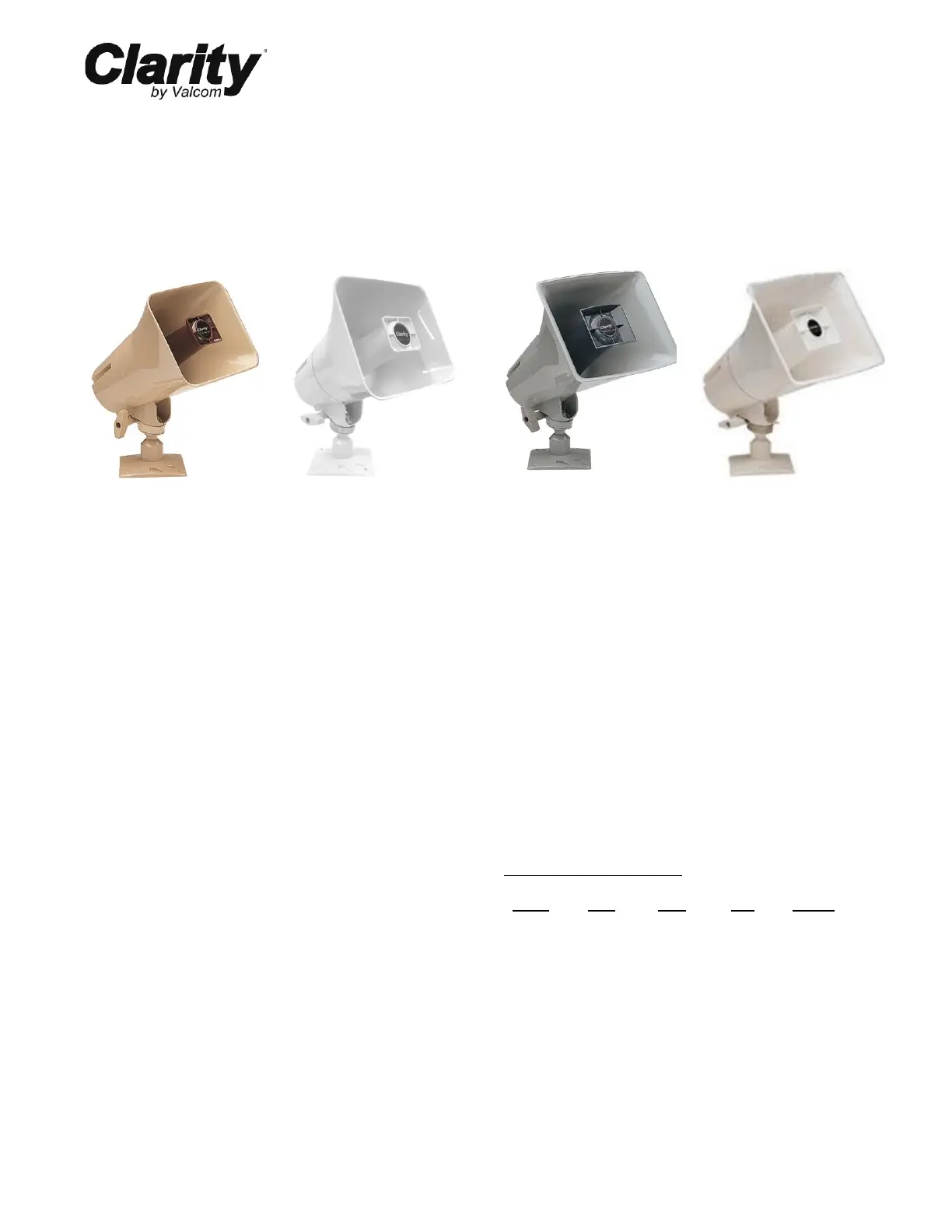

SX15-T SX15-TM SX30-T SX30-TM

INTRODUCTION

The SX15-T, SX15-TM, SX30-T, SX30-TM are

Paging Horns for use with any Clarity

Mixer-Amplifier.

The SX15-T is a 15 Watt horn. The SX-30-T is

a 30 Watt horn. The SX15-TM and SX30-TM

are 15 Watt and 30 Watt horns designed for

nautical use. Each includes an integral

25V70V/100V line matching transformer. These

horns can be used for interior or exterior paging

applications.

These instructions contain the specifications and

information necessary to install, operate and

maintain the horns.

SPECIFICATIONS

Product Description

SX15-T 25/70/100V 15 Watt Paging Horn

SX15-TM 25/70/100V 15 Watt Paging Horn

(Marine Version - Sealed)

SX30-T 25/70/100V 30 Watt Paging Horn

SX30-TM25/70/100V 30 Watt Paging Horn

(Marine Version – Sealed)

Applications

Clarity Paging Systems

Existing 25, 70 or 100 Volt Paging Systems

Environment

Temperature: 0 to +50° C

Humidity: 0 to 85%

Features

Combination 25/70/100V transformer

(SX15-T, SX30-T, SX15-TM, SX30-TM)

Weather resistant construction

High impact plastic housing in beige,

gray (-GY) or white (M) housing

Marine version - no fade, white sealed

housing

Fully adjustable 360 degrees horizontal and

90 degrees vertical

Rotary switch for tap selection

Stainless steel hardware

Beam mount clamp or electrical backbox

mounting

Horn Taps for the SX15-T, SX15-TM

15 Watts, 25/70/100 Volts

Switch Setting

100V

70V

25V

Set

Ohms

1.9

-

-

1

5333

3.8

1.9

-

2

2667

7.5

3.8

-

3

1333

15

7.5

-

4

667

-

15

1.9

5

333

-

-

3.8

6

167

-

-

7.5

7

83

-

-

15

8

42
