4.Insert one end of each

black pole into pins in

front corners of tent.

(Fig. 2)

5.Go to opposite end of

each pole and gradually

apply pressure to the pole

forming an arch. Insert

the pin into the pole end

at the corners of tent.

(Fig. 3)

6.Attach frame clips along

edgesof tent to black

main poles. (Fig. 3A)

7.Stretch corners and sides

of tent until floor is taut

then hammer stakes

through loops to secure.

(Fig. 3B)

STITCH LINE

LONG FLY SUNDOME 7’ X 7’

MODEL 2000001106

Before you begin

Read all instructions before set up.

• Select a level campsite clear of rocks, branches, and other hard

or sharp objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees.

• For best results in windy conditions, position end of tent into

the wind.

• Enlist the help of at least one other person to assist you when

it is time to assemble the tent.

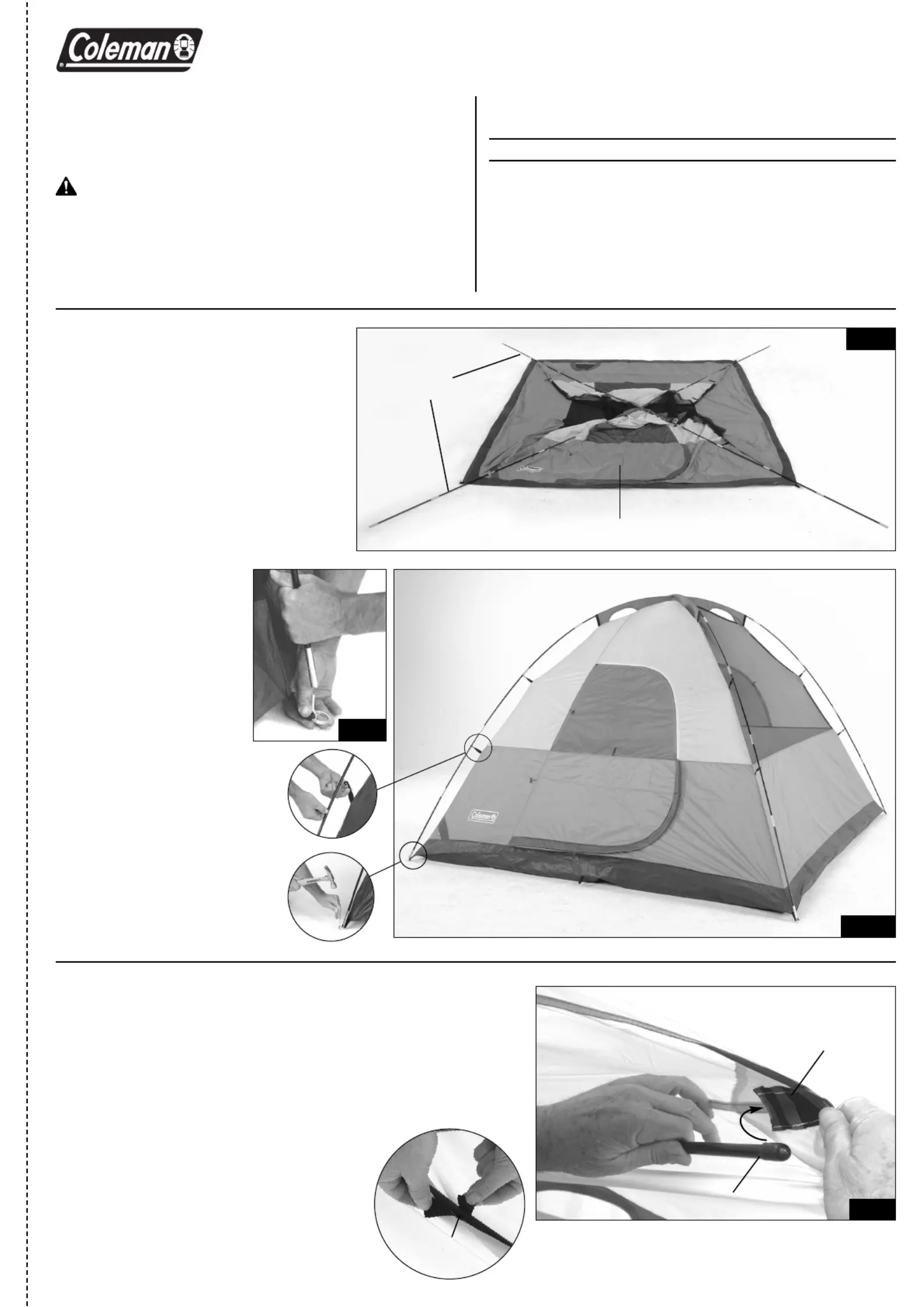

Fig. 2

To Set Up Tent

1.Unfold tent and spread out on a clean,

level surface with the door facing the

desired direction. (Fig. 1)

2.Assemble two main tent poles by inter-

locking the longer, black shock-corded,

poles.

3.Insert both, long, black poles through

sleeves in top of tent as shown. (Fig. 1)

Fig. 3

Parts and Components

DescriptionPart Number

Main Poles, Long, Black (2)5010000373

Ridge Pole w/rubber tips, Black (1)5010000374

Rainfly5010000375

1.Assemble the black interlocking shock-corded ridge pole with

rubber tips.

2.Unfold rainfly. Locate the web pockets on front and back of rainfly,

and the hook & loop fasteners on the underside of rainfly.

3.Insert rubber-tipped ends of ridge pole into web pockets located

on both sides of underside of the rainfly. (Fig. 4)

4.Locate hook & loop fasteners on the rainfly

and wrap around black ridge pole to secure.

(Fig. 4A)

To Attach Rainfly

(continued on other side)

Fig. 1

Door

Long, Black,

Shock-corded

Main Poles

3A

3B

Web

Pocket

Black Ridge Pole

Fig. 4

4A

Black Ridge

Pole
