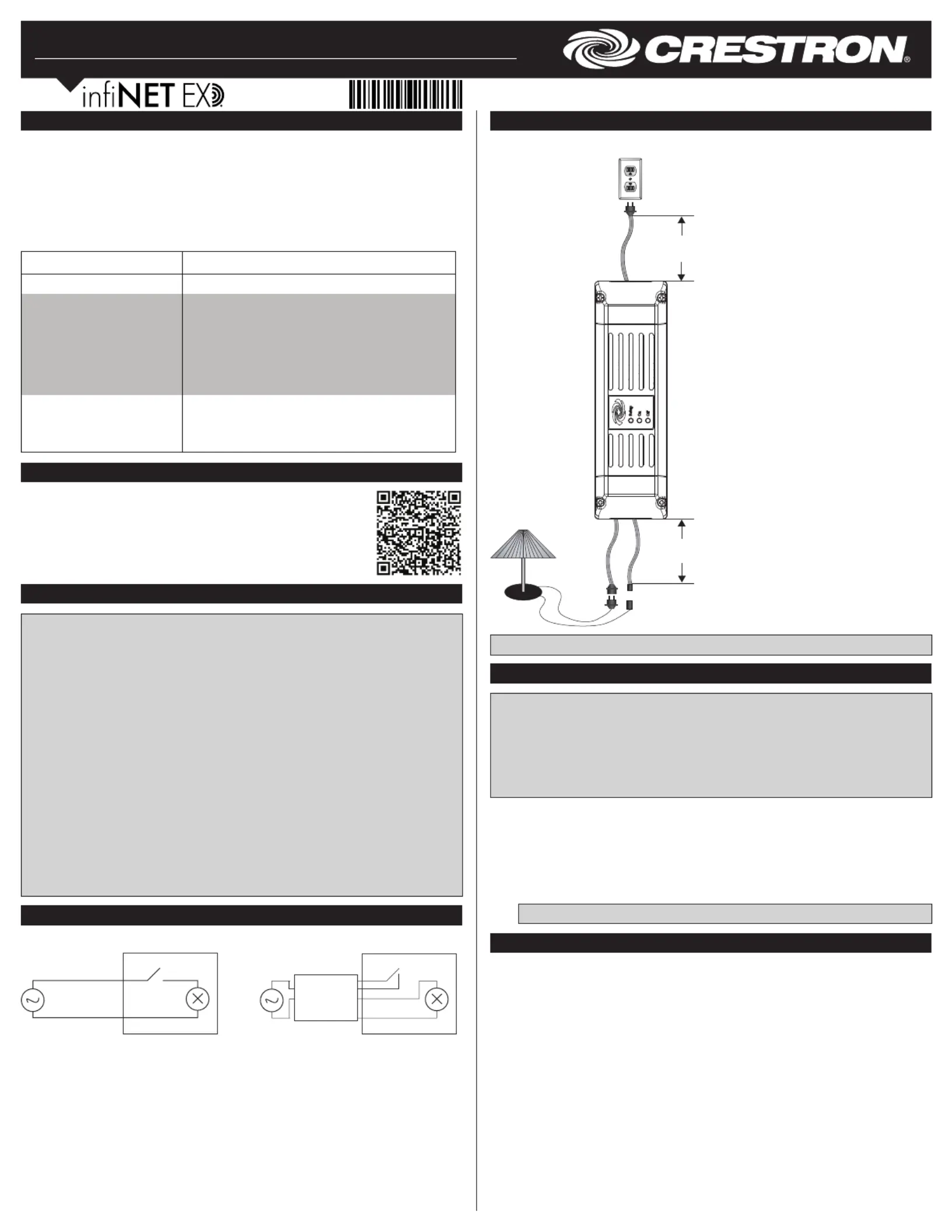

CLF-LDIMUEX
Wireless Lamp Dimmer
Installation and Operation Guide
Important Notes
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse and test that the power is off before wiring!
CAUTION: TO REDUCE THE RISK OF OVERHEATING AND POSSIBLE DAMAGE TO
OTHER EQUIPMENT, DO NOT INSTALL TO CONTROL A RECEPTACLE OR A
TRANSFORMER-SUPPLIED APPLIANCE.
ATTENTION: GRADATEURS COMMANDANT UN BALLAST-AFIN DE REDUIRE LE
RISQUE DE SURCHAUFFE ET LA POSSIBILITE D’ENDOMMAGEMENT A D’AUTRES
MATERIELS, NE PAS INSTALLER POUR COMMANDER UNE PRISE OU UN APPAREIL
ALIMENTE PAR UN TRANSFORMATEUR.
NOTES: Observe the following points:
• Install and use the CLF-LDIMUEX in accordance with appropriate electrical codes
and regulations.
• Use the dimmer where temperatures are between 32°F and 104°F (0°C and 40°C).
NOTE: Record the serial number of the device before installation. Refer to inNET EX
Important Notice (Doc. 7179) included in the box.
The device must remain in an accessible location when placed into Acquire mode and
joined to a gateway.
Description
The Crestron
®
CLF-LDIMUEX is a universal lamp dimmer capable of dimming most
120 Vac lighting loads, such as those commonly found with table and oor lamps.
Powered by inNET EX
®
technology, this device communicates wirelessly with the control
system, making it perfect for both new and retrot applications. CLF-LDIMUEX lets you
control any lamp from a touch screen, keypad, on-screen display, or other Crestron
remote control device. For complete in-sync control, the CLF-LDIMUEX also connects
directly to the switch located on the lamp.
CLF-LDIMUEX Specications
Wiring
Typical Wiring Diagram
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
NOTE: The contact closure does not need to be connected for proper operation.
Remote Switch Wiring Options
Standard Lamp Wiring
Installation
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse and test that the power is off before wiring!
NOTE: A licensed electrician must install the dimmer.
NOTE: Before using the CLF-LDIMUEX, ensure the device is using the latest rmware.
Check for the latest rmware for the CLF-LDIMUEX at www.crestron.com/rmware.
Firmware is loaded onto the device using Crestron Toolbox™.
Complete the following procedure to install a CLF-LDIMUEX dimmer:
1. Connect the lamp to the female 2-pin polarized NEMA1-15R connector of the
CLF-LDIMUEX.
2. Connect the contact closure from the lamp to the female C7 connector of the
dimmer (optional).
3. Plug the male 2-pin polarized NEMA1-15P cord of the dimmer to a standard
120 V power outlet.
CAUTION: The CLF-LDIMUEX should be placed in a well-ventilated and dry area.
CLF-LDIMUEX Wiring with Contact Closure
CLF-LDIMUEX
1 ft
(~.30 m)
5 ft
(~1.5 m)
Local and Remote Operation
The operation described in this guide assumes the CLF-LDIMUEX is in Local mode, where
the external slave-switch (sold separately) directly controls the light levels on the dimmer.
The device can also operate in Remote mode, where the external slave-switch sends
commands to the control system and the commands are then routed to control the load.
Local mode options (available in SIMPL Windows):
• Maintained Switch (Default): The unit toggles on and off when the slave-switch is
toggled.
• Momentary Switch:
> Single Tap - Toggles the load on and off.
> Double Tap - Initiates a fast-full-on.
> Hold - Initiates cycle dimming.
SPECIFICATION DETAILS
Input Voltage 120 Vac, 60 Hz, line power
Load Ratings
Number of Channels 1
Maximum Load per
Channel
250 W/250 VA
Load Types Incandescent, tungsten-halogen, magnetic low-
voltage, electronic low-voltage, LED, dimmable CFL
Environmental
Temperature 32°F to 104°F (0°C to40 °C )
Humidity 10% to 90% RH (noncondensing)
