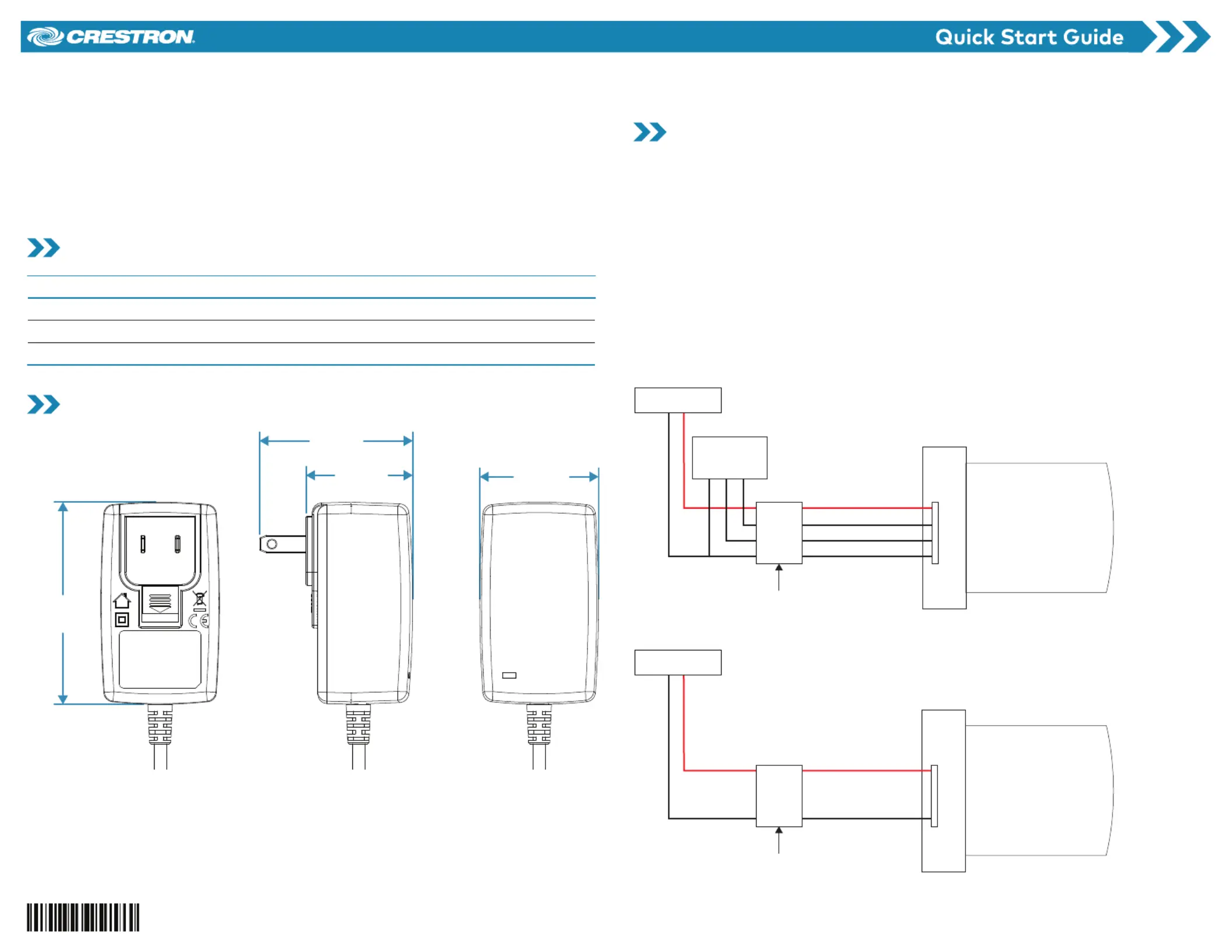

The CSA-PWS40 and CSAI-PWS40 are outlet-mountable, 40 W, 24 VDC regulated power

packs that provide power for Crestron® CSM-QMTDC series roller shade or drapery track

motors. The CSA-PWS40 has a NEMA 1-15P blade insert installed and the

CSAI-PWS40 ships with a blade insert kit that consists of eight blade inserts.

The CSA-PWS40 and CSAI-PWS40 are ideally suited to provide local power for

CSM-QMTDC motors that communicate using the infiNET EX® network.

Check the Box

ItemQty

CSA-PWS40 or CSAI-PWS401

CSAI-PWS40 Only

Blade Insert Kit, 8 Blades, International1

Dimensions

2.91 in.

(74 mm)

2.21 in.

(56 mm)

1.71 in.

(43 mm)

1.54 in.

(39 mm)

Install the Power Pack

NOTES:

• Install and use this product in accordance with appropriate electrical codes and

regulations.

• An AC outlet must be located near the CSM-QMTDC series roller shade or drapery

track motor that is powered by the power pack. The power pack has an 8 ft (2.43 m)

long power cable.

Install the power pack:

1. Connect the flying leads from the power pack to the flying leads on the CSM-QMTDC

series roller shade or drapery track motor. Ensure that connections are properly made.

NOTE: To change the plug type on the CSAI-PWS40, refer to the “Change the Blade

Insert” section on the next page.

2. Plug the power pack into a 120 VAC power outlet.

Wiring Diagram Using a Cresnet Motor

Power Pack

24

Y

Z

G

To Cresnet

Motor

pigtail

24G

ZY

G

Cresnet motor

Wiring Diagram Using an infiNET EX Motor

24

G

Motor

pigtail

24G

infiNET EX motor

Power Pack

CSA-PWS40/CSAI-PWS40

Power Pack for Crestron® CSM-QMTDC Series Roller Shade and Drapery Track Motors
