The Zūm™ Wireless ZUMMESH-JBOX-DALI is a single-

channel DALI controller capable of controlling up to 64

DALI compatible drivers. The ZUMMESH-JBOX-DALI

communicates with other Zūm devices such as keypads,

occupancy sensors, vacancy sensors, and daylight sensors.

NOTE: The ZUMMESH-NETBRIDGE (sold separately)

is required to create and control DALI groups. The

ZUMMESH-NETBRIDGE must be connected to the

ZUMMESH-JBOX-DALI for DALI group control.

Check the Box

ItemQty

ZUMMESH-JBOX-DALI1

Nut, Wire Twist, Yellow, 22-10 AWG

(P/N 2049245)

4

Nut, Lock, 1/2 in. - 14, Conduit, Steel

(P/N 2047626)

1

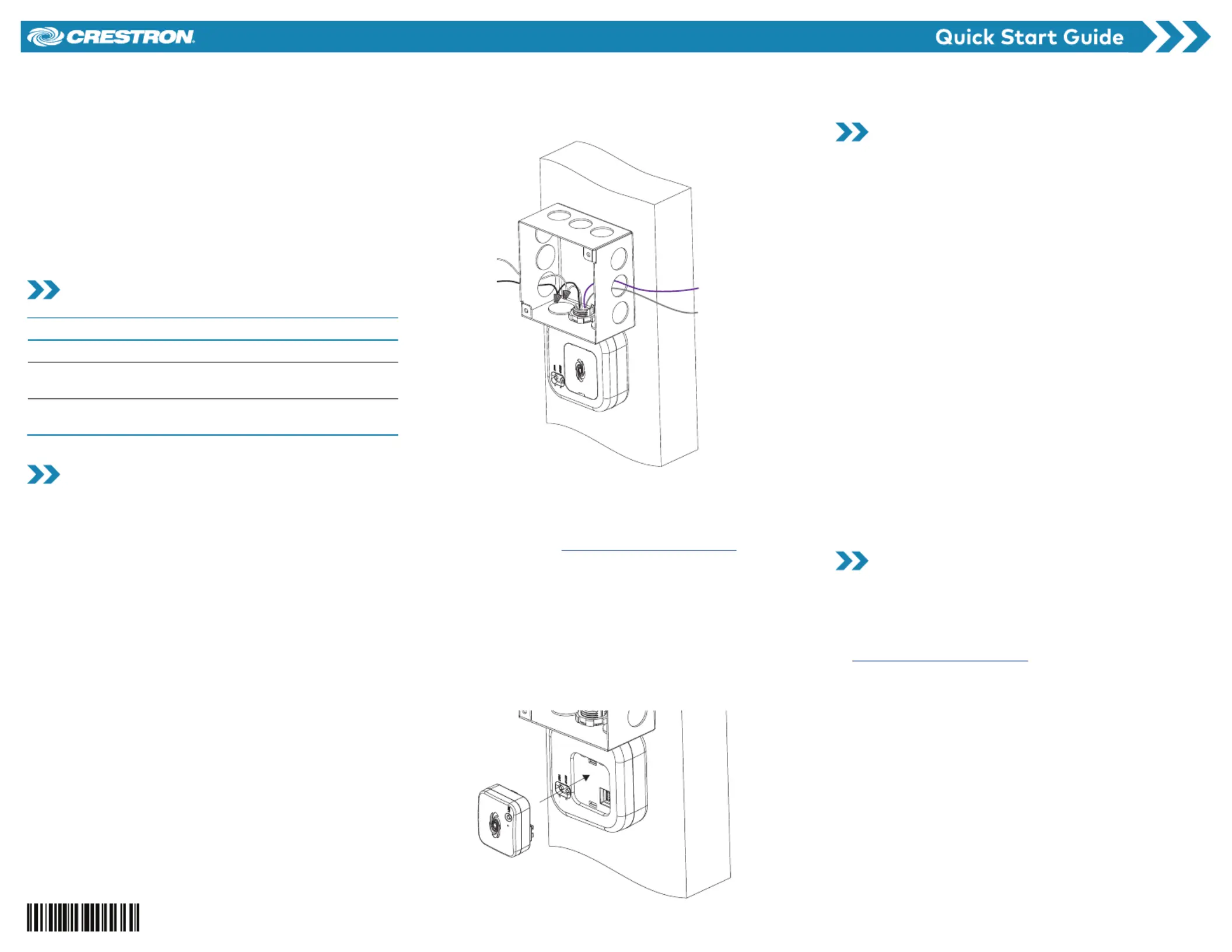

Installation

WARNING: To avoid fire, shock, or death, turn off the power

at the circuit breaker or fuse and test that the power is off

before wiring!

NOTE: Observe the following points:

• Install and use this product in accordance with

appropriate electrical codes and regulations.

• A licensed electrician should install this product.

• The product projects 3-11/16 in. (93 mm) from the

junction box when installed.

To install a ZUMMESH-JBOX-DALI:

1. Turn the power off at the circuit breaker.

2. Mount the ZUMMESH-JBOX-DALI to the J-box using

a locknut.

3. Wire the ZUMMESH-JBOX-DALI as shown.

To DALI

controlled loads

DALI Input/Output

(purple)

DALI Input/Output

(gray)

Neutral

(white)

Hot

(black)

100-277 VAC

power from

breaker

To install a ZUMMESH-NETBRIDGE:

NOTE: For product specifications and additional installation

details, refer to the ZUMMESH-NETBRIDGE Installation

Guide (Doc. 7955) at for www.crestron.com/manuals

details.

1. Use a flat-head screwdriver to remove the cover on

the ZUMMESH-JBOX-DALI. Insert the flat-head

screwdriver into the slot next to the cover and pry up

to remove the cover.

2. Align the ports on the ZUMMESH-NETBRIDGE

and the ZUMMESH-JBOX-DALI, and then

insert the ZUMMESH-NETBRIDGE into the

ZUMMESH-JBOX-DALI. The J-box module snaps into

place.

Operation

Prior to room commissioning, the ZUMMESH-JBOX-DALI

uses DALI broadcast to control all connected

lights simultaneously. After commissioning the

ZUMMESH-JBOX-DALI, addressing devices and creating

groups, the ZUMMESH-JBOX-DALI will control drivers

assigned to the groups.

NOTES: Connect the ZUMMESH-NETBRIDGE (sold

separately) directly to the ZUMMESH-JBOX-DALI to create

and control DALI groups. The ZUMMESH-JBOX-DALI

functions in broadcast mode if the ZUMMESH-NETBRIDGE

is not connected.

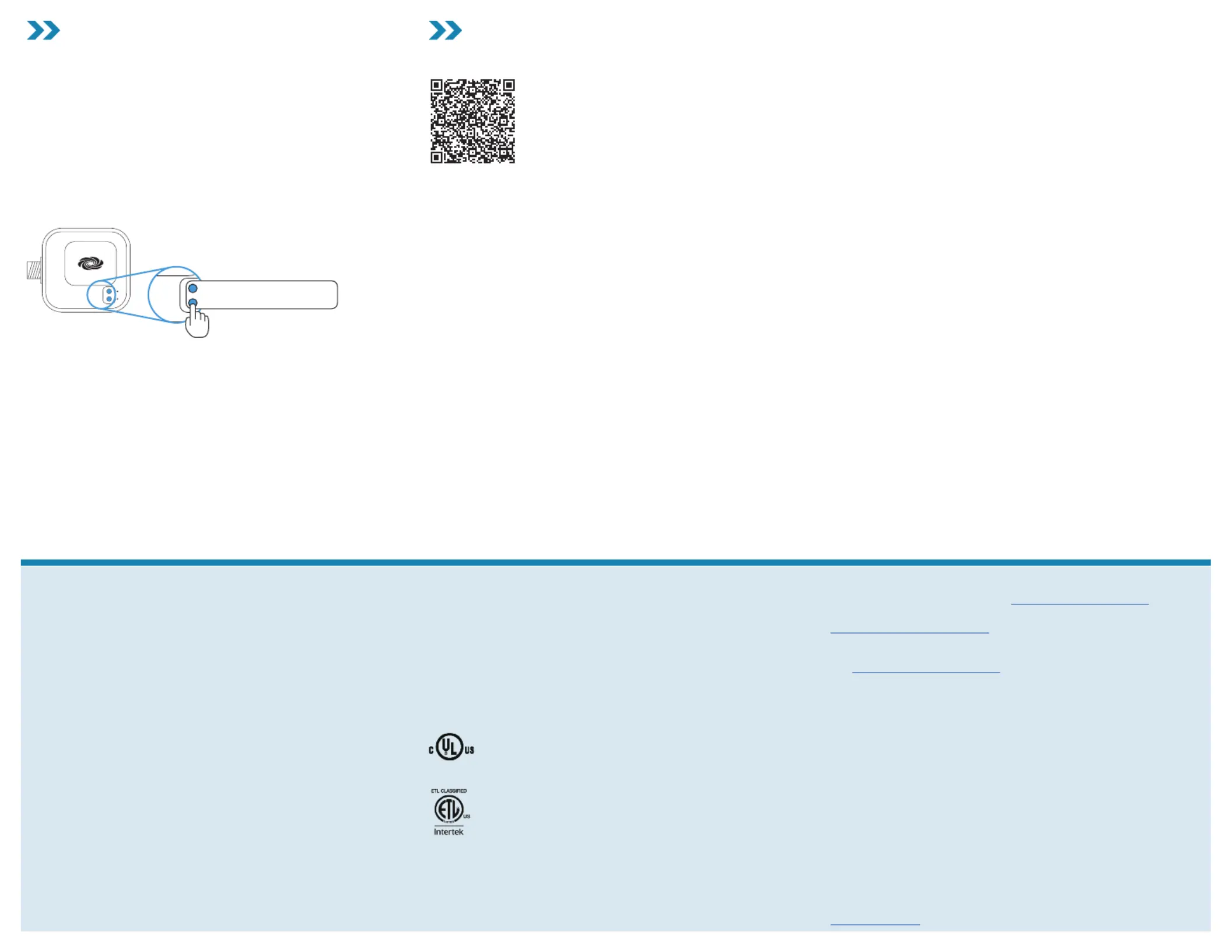

Test the Ballasts

To verify that all drivers have been properly wired, press

the TEST button to toggle the drivers that are assigned to

groups.

To test the dimming function of the drivers, press and hold

the TEST button.

NOTE: if the ZUMMESH-JBOX-DALI is not commissioned,

the device operates in DALI broadcast mode and

controls all of the connected drivers simultaneously.

After the ZUMMESH-JBOX-DALI is commissioned, the

ZUMMESH-JBOX-DALI only toggles or dims drivers that

are assigned to groups.

Commissioning

Use the Crestron Zūm app to commission the

ZUMMESH-JBOX-DALI.

For details on commissioning, refer to the Zūm Light

Control System Product manual (Doc. 7957)

at .www.crestron.com/manuals

ZUMMESH-JBOX-DALI

Zūm™ Wireless DALI® Controller
