INCLUDED ITEMS

Before installation, ensure all components listed below are

included and undamaged. Retain the original packaging

for potential returns.

Note: The cartridge alignment and anti-skate

control components have been pre-adjusted to

optimal settings at the factory. No further

adjustment is required.

Turntable

Power Adapter

Dust Cover

Slipmat

Platter

Sub-Platter

Drive Belt

Counterweight

Metal Phillips

Screwdriver（for

adjusting

counterweigh

tightness)

User Manual

Cartridge

Alignment Card

45RPM Adapter

Ceramic Flathead

Screwdriver (for

speed adjustment)

1

2

3

4

5

6

7

8

9

11

10

12

13

Motor Pulley

Drive Belt

Turntable Spindle

Sub-Platter

Platter

Anti-skate

Component

Counterweight

Tonearm

Conterweight

Shaft

Tonearm Lift Lever

Tonearm Lock

Function Switch

Speed Selector

Indicator Light

Power-Volume

Knob

Tonearm

Cartridge

Dust Cover

Ground

Connector

Phono/Line

Switch

RCA Audio

Output Jack

Speed Fine

Adjustment

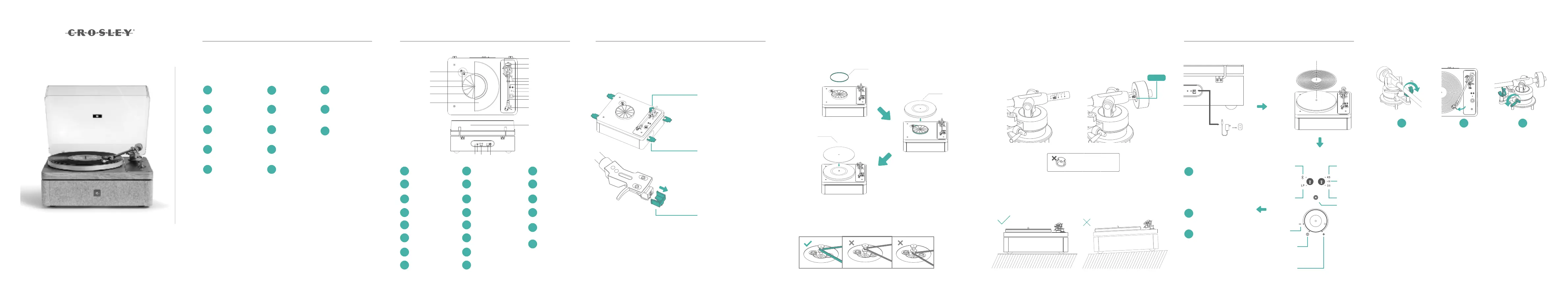

COMPONENT DIAGRAM

Components Names

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

Power Jack

22

1

2

3

4

5

18

19

20

21

22

6

7

8

9

10

11

12

13

14

15

16

17

2. Installing the Platter

Follow the diagram to install the drive belt, platter, and slipmat in sequence.

Note: Make sure the belt is not twisted during installation.

After attaching the belt, rotate the platter a few rounds to

ensure the belt is seated securely.

Drive Belt

Slipmat

Platter

4. Playing a Record

- Release the tonearm lock;

- Use the tonearm lift to raise tonearm o its rest;

- Use stylus lift to move tonearm to desired starting

point on your record;

- Lower tonearm using tonearm lift;

- When nished playing, use tonearm lift to raise

tonearm;

- Move tonearm back to its rest;

- Secure and lock tonearm in place.

1

2

3

Cabinet Dampening Pads

Anti-skate Protection Pad

Stylus Protector

INSTALLATION

1.Before Installation

Remove the four cabinet dampening pads and anti-skate protection

pad, stylus cover, and other protective components.

Tip: Keep all removeded components for future shipment and use.

Important:When removing the stylus protector, ensure the

stylus is not accidentally detached. If the stylus is removed,

refer to the "Maintenance – Stylus Replacement" section for

reinstallation instructions.

4. Placement

Place the turntable on a stable surface. Keep it away from

speakers or devices that create vibration.

VINYL PLAYBACK

3. Installing the Counterweight

Attach the counterweight to the tonearm counterweight shaft, and align the

triangle mark to the required force marking (2.5g-3.0g).

Caution: Do not confuse the counterweight with the 45RPM adapter.

2.5g

Caution: Do not confuse

the counterweight with

the large-hole adapter.

1. Connect Power2. Place the Record

3. Control Operations

1.Rotate the knob

to the –position to

turn on the power.

Keep turning

clockwise to

increase the volume.

2. Set the switch to

LP for Vinyl Mode.

3. Select the correct

speed (33 / 45 RPM) for

the record desired to play.

The platter will start

turning.

Connect Power

1

2

3

LP:Vinyl Mode

Power On

Power O

Turn clockwise to

increase volume

BT:Bluetooth

Mode

33 RPM

Indicator Light

White Light:

Vinyl Mode

Blue Light:

Bluetooth Mode

Blue Light Flashing:

Bluetooth Pairing

Mode

45 RPM

Pause

ELITE SERIES RECORD PLAYER

E100A INSTRUCTION MANUAL
