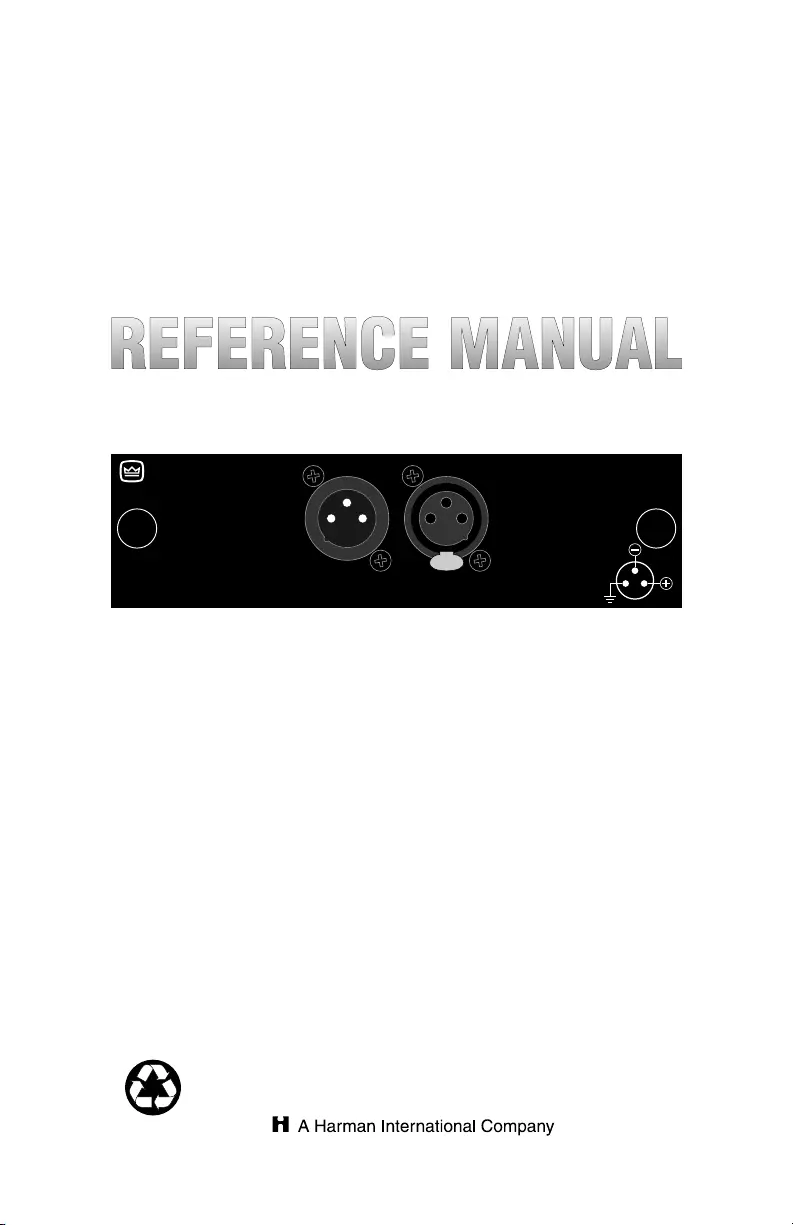

Seite 1/20
100403-4
8/03
P. I.P.–AMCb
AMC
Programmable
Input Processor (P.I.P.)
O U T P U T I N P U T
3
1 2
GND
©2003 by Crown Audio, Inc., P.O. Box 1000, Elkhart, IN 46515-1000 U.S.A. Tele-
phone: 574-294-8000. Fax: 574-294-8329. Trademark Notice:
PIP, PIP2
and
Studio
Reference
are trademarks and
Crown
,
Macro-Tech
,
Com-Tech
,
IOC
and
P.I.P.
are
registered trademarks of Crown International. Other trademarks are the property of
their respective owners.
Obtaining Other Language Versions:
To obtain information in another language about the use of this product, please
contact your local Crown Distributor. If you need assistance locating your local
distributor, please contact Crown at 574-294-8200.
Note: The information provided in this manual was deemed accurate as of the
publication date. However, updates to this information may have occurred. To obtain
the latest version of this manual, please visit the Crown website at
www.crownaudio.com.
Printed on
recycled paper.
P. I.P.–AMCb
Page 3
1 Welcome
Congratulations on your purchase of
Crown’s
P.I.P.
®
–AMCb
.
PIPTM
modules
are designed to quickly install in the
back of many Crown amplifiers. PIP
stands for “Programmable Input Pro-
cessor.” Each PIP
has features that ex-
pand the capabilities of your amplifier,
enabling you to customize it for your
particular needs.
The P.I.P.–AMCb is a versatile mono-
phonic Acoustic Modeling Crossover
(version b) that plugs into any PIP-
capable Crown amplifier. It combines
the functions of a crossover, equal-
izer and compressor.
DIP switches, plug-in SIP resistors
and convenient jumper blocks make
it easy to configure any of its power-
ful operating features.
Features
❏Variable 24-dB/octave (4th order)
Linkwitz-Riley crossover with state-
variable topology.
❏Variable 12-dB/octave (2nd order)
low-frequency filter with Q=2 for
vented box equalization.
❏Variable 6-dB/octave high fre-
quency shelving network with vari-
able 12-dB/octave high-frequency
low-pass filter for constant-directiv-
ity horn equalization.
❏Variable threshold, feedback/error-
driven compressor/limiter with infi-
nite compression ratio.
❏Configurable compressor control
path.
❏Fully configurable outputs to supply
the amplifier channels.
❏Configurable “daisy chain” output.
❏3-pin balanced XLR connectors for
input and daisy chain output.
AMC
Programmable
Input Processor (P.I.P.)
O U T P U T I N P U T 3
1 2
GND
Fig. 1.1 P.I.P.–AMCb
