Seite 1/5
RVCGM-80S
HDMI & Dual Camera Int acerf e
Select GM Vehicles with IOS, IOT, & IOU Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050922
1 of 5
PRODUCT FEATURES:
PARTS INCLUDED:
RVCGM-80S Module
- 2 com spo ite vi eo id nputs with 2 trigger wires
- Forced ac�va�on via steering eel wh co ntrols
- Forced ac�va�on via steering eel wh co Introls HDM vid in uteo p ONLY
RVCGM-80S Power Harness
LVDS Ada pter Cable
UST
RVCGM-80S
DIP #1/2/3 - OFF
DIP #4 - ON/OFF This activates the HDMI input.
DIP #5 - ON/OFF Secondary Rear Camera input manual trigger
DIP #6 - ON/OFF Video 2 / Front camera manual trigger ONLY
Dip #7 - ON (Automatically appears after reverse gear. Will turn back to factory screen
once vehicle reaches 7mph) If using manual trigger turn this DIP switch OFF.
DIP #8 - ON For manual ove ide in reverse gear for secondary camera.rr
DIP #9 + #10 Car Type
#9 ON / #10 OFF Malibu / Colorado / Canyon / Trail Blazer / Cadillac
#9 OFF / #10 OFF Silverado / Sierra
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0509222 of 5
WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN LVDS
RVCGM-8UST
H I & Camera Integration InterfaceDM
for GM Vehicles with IOS, IOU, IOT Systems
R
INTERFACING SOLUTIONS
REAR CAMERA
FRONT CAMERA
AUX LEFT
AUX RIGHT
Blue Wire (Front/additional Cam Trigger)
Green Wi ( mre R Ca Tr )igger
Unplug the factory LVDS cable fron the ACM. Connect
one end of the supplied LVDS cable in the ACM and plug
the other end into the factory LVDS cable.
Yellow
Black
Red
RVCGM-80S
DIP SWITCH SETTINGS:
DIP SETTING VEHICLE
Note: ON is down and OFF is up
NOTE: DIP switches MUST be set prior to plugging in the main harness to the module.
If at anytime you need to change the settings, unplug the main power harness from the
module. If you don’t unplug the harness before you change the DIP switches the
HDMI & Dual Camera Int acerf e
Select GM Vehicles with IOS, IOT, & IOU Systems
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0509223 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCGM-80S

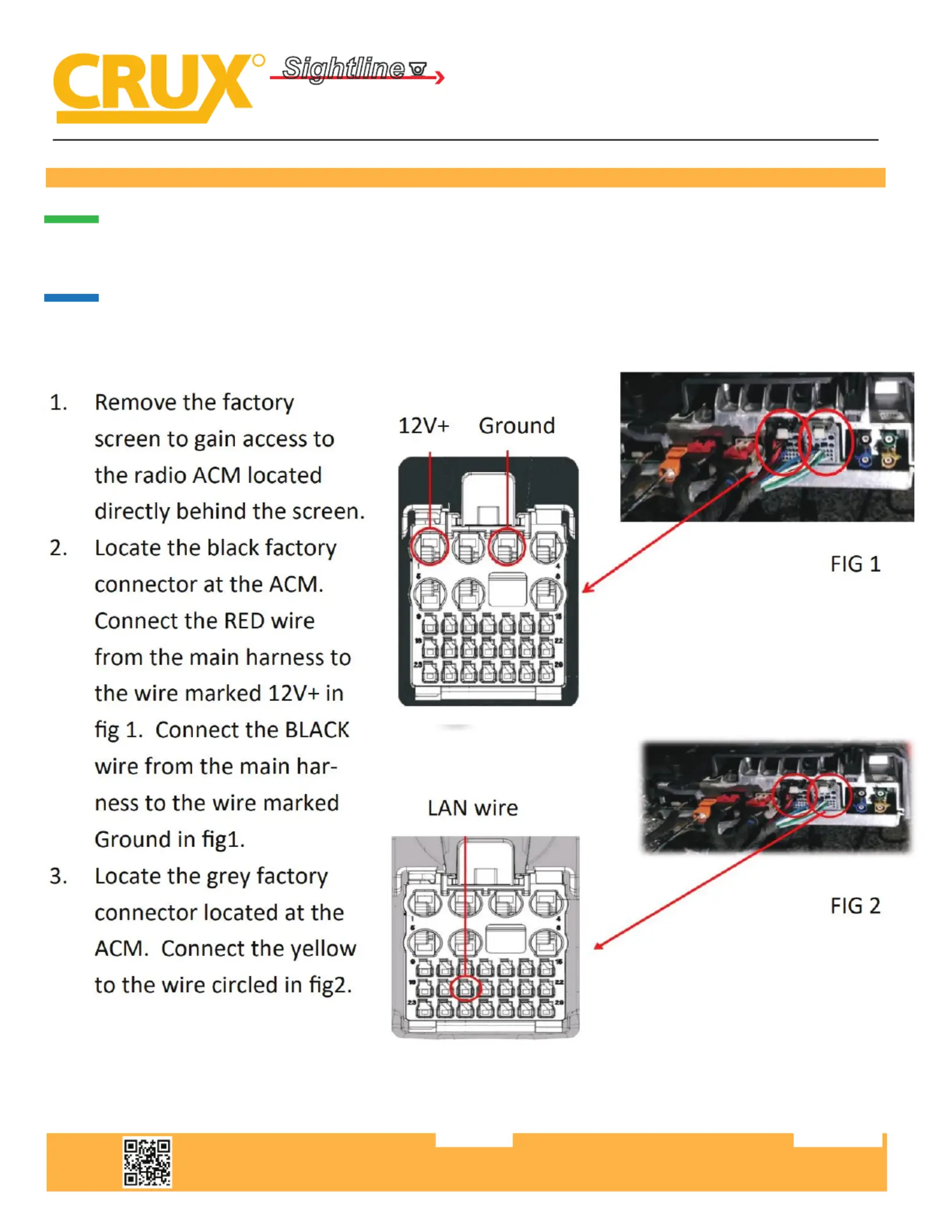

GREEN WIRE - TRIGGER 1 ( THIS TRIGGER INPUT MUST BE USE IF INSTALLING A SECONDARY REAR CAMERA.
When triggered, this will override the factory rear camera image.
BLUE WIRE- TRIGGER 2 used for additional camera such as front camera.
CAMERA MANUAL TRIGGER WIRES
HDMI & Dual Camera Inter cefa
Select GM Vehicles with IOS, IOT, & IOU Systems
