with new VESA Plate

Heavy-Duty Security Gooseneck Clamp Stand

ADD-HGTS

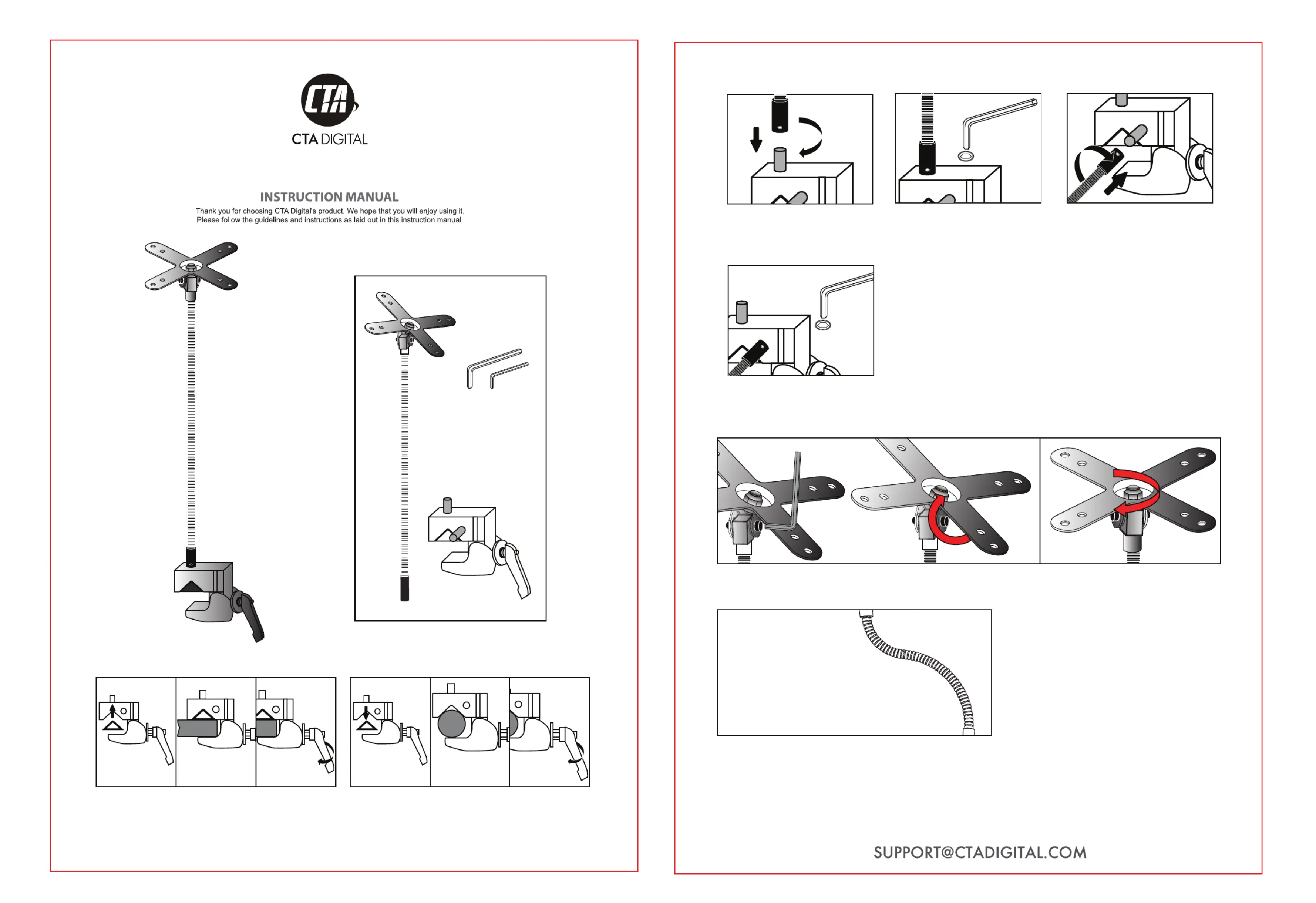

Instructions:

1. Use bigger Allen key to loosen the connection between the U Piece and

the Gooseneck to adjust the angle in vertically then tighten the connection

again .

3. Adjusting

Multi

direction

flexing

2. Flex gooseneck to adjust the

position and angle according

to your favorite.

Package Contents:

Smaller

Allen Key

2. Connecting the Gooseneck with VESA Plate

1. Screw gooseneck onto the male

metal connection bolt on top of the

clamp.

Note: if meter screws are already in,

unscrew before attaching gooseneck.

2. Use the smaller Allen key to screw up

two meter screwes insde the gooseneck,

tightening the connection.

3. To use clamp aligned vertically,

screw gooseneck onto the male metal

connection bolt on the side of the clamp.

Smaller

Allen Key

4. Use the smaller Allen key to screw the

two meter screws insde the gooseneck,

tightening the connection.

1. Installing the Clamp

1. Place rubber grip flat insert into the clamp groove. Rotate

tightening handle counter-clockwise to widen around

surface ledge. Rotate clockwise to tighten until secure.

On a Flat Surface:

2. Remove rubber grip flat insert from clamp groove. Rotate

tightening handle counter-clockwise to widen around surface

ledge. Rotate clockwise to tighten until secure.

On a Tube:

Allen Key

Bigger

2. Rotate the VESA plate cock-wise to

adjust the angle in horizonal .
