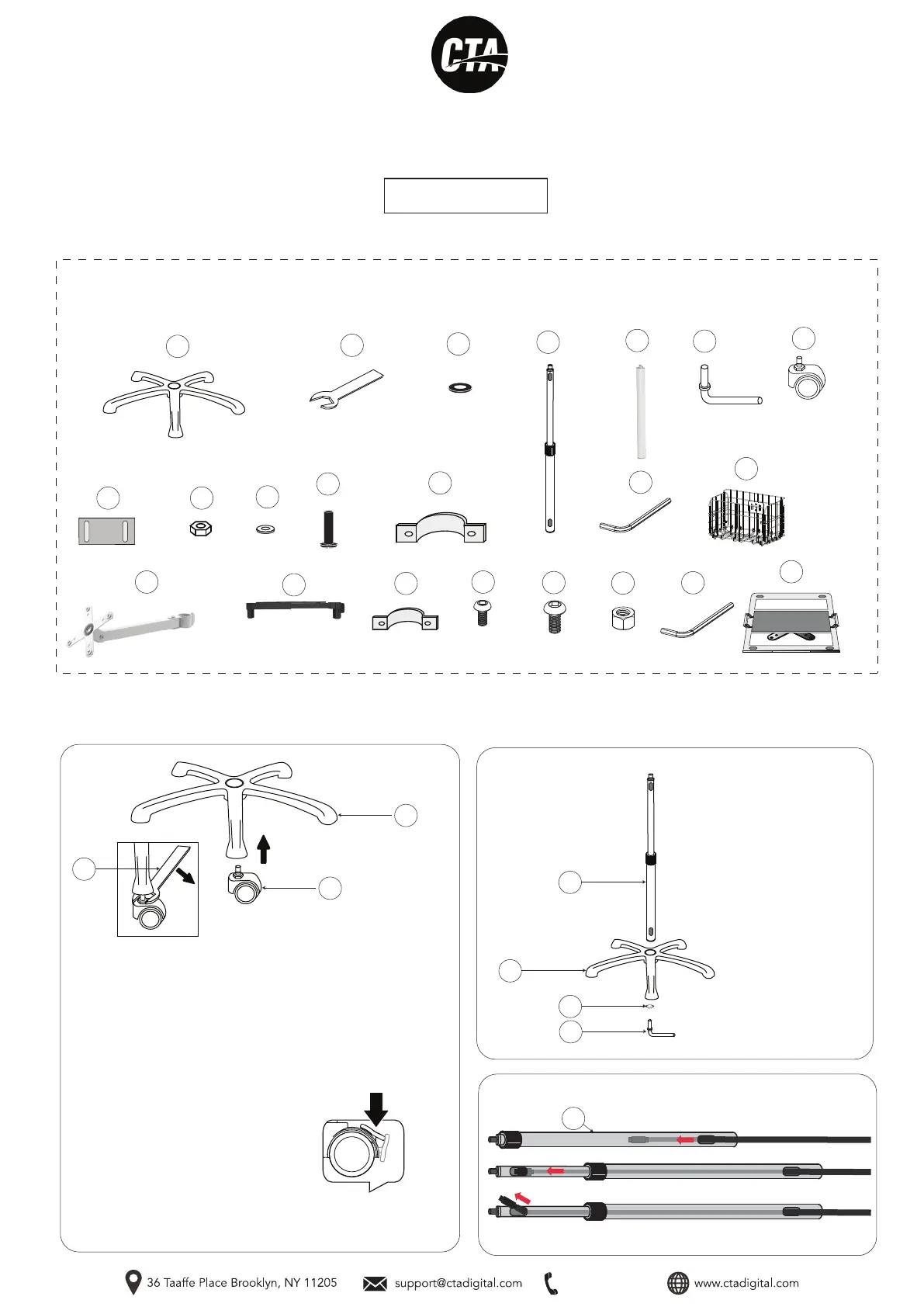

Medical Rolling Cart with Articulating Arm

and Storage for Laptops

LT-MCRFS

INSTRUCTION - MANUAL

CONTENTS:

INSTALLATION:

888-733-4448

x1

x1

x1

x1

x5

B

C

D

E

F

A

x1

x1

G

1A. Take one wheel (G) and align it to

the leg arm holes on the underneath of

the base (A). Initially you can use your

hands and manually rotate the wheel

until slightly tightened. Then use the

provided wrench tool (B) at the hex

shaped area and rotate it securely to

tighten the rest of the way.

A

G

B

D

A

C

F

2A. Align the bottom of pole

body (D) to the top center of

the base (A). While pieces

are connected, securely flip

over so you can see the

bottom. Align washer (C) to

the hole on the bottom.

Using your hands, identify

L-shaped component (F)

and rotate through the

washer into the hole until

securely tightened. Pole

body and base should now

be securely attached to

each other.

1B. Press the wheel lever up or down to

place wheels in locked or unlocked mode

depending if you want to be in a mobile or

stationary setup. Make sure you adjust all

wheels at the same time or it won’t properly

be set up.

1. Attaching Wheels to Heavy Duty Base

2. Attaching Base to Body

3. Cable Routing through Body

1. Set the pole to the lowest position. Insert cable head through the bottom opening of pole and push upward.

2. Fish the cable to the opening at the top and take cable end and pull out of opening.

3. Carefully pull the cable out and connect end to device.

x1

x2

x2

x1

x2

H

I

J

K

L

M

x1

N

x1

O

x1

x1

P

Q

x1

R

x2

S

x4

T

U

x4

x1

M6 MM

Screw

M6 MM

Hex Nut

M6

Allen Key

**COMPONENTS ARE NOT TO SCALE

AND JUST GRAPHIC REPRESENTATIONS

D

M5x12

Screw

M8 MM

Washer

M8 MM

Bolt

M5

Hex Nut

M5

Screws

M6

Washer

V

x1
