Articulating Sleek Desk Mount Arm

w/ Security Enclosure

PAD-ADMAEW

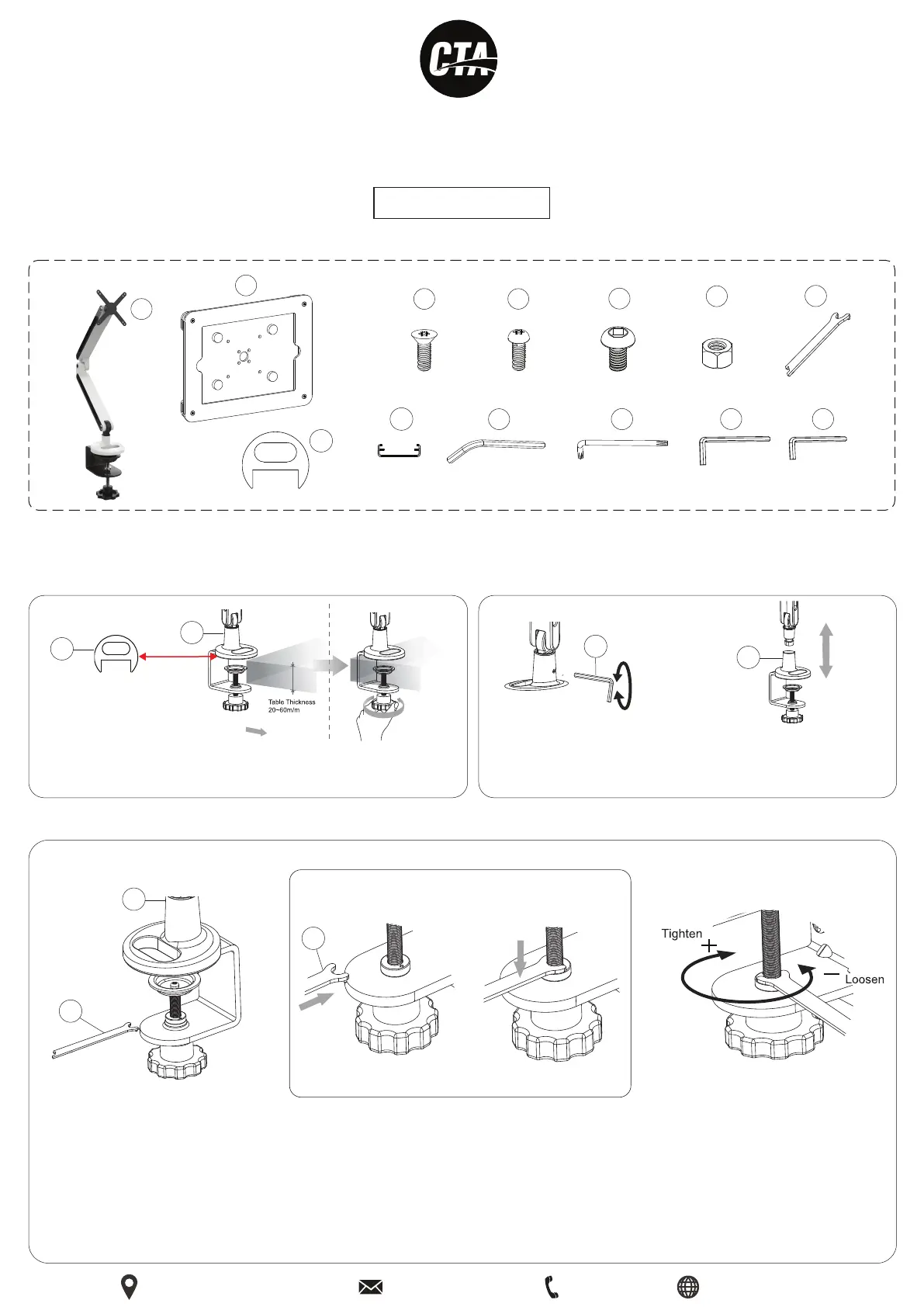

INSTALLATION - MANUAL

3. Base clamp security setup :

x4

E

M5 x 12

x

4

F

M5 Nut

x4

C

Acrylic Security

Enclosure

x1

B

x4

D

K

x2

Security

Star Key

J

M5 Allen

Key

x1

1. Base mount installation :2. Arms & base clamp adjustments :

CONTENTS :

INSTALLATION:

x1

A

x1

G

I

x2

H

x1

L

x1

M

x1

1A. Find the included base

pad (H) and peel off the

backing. Align to the

underneath of the C-Clamp

(A) and apply pad.

1B. While the clamp is in unlocked mode, rotate

the knob at the bottom (as shown above) to

loosen or securely tighten to the table top.

H

A

2B. Remove arm (A) from the

base clamp mount. Repeat

steps in reverse order to

re-install connection.

2A. If you need to remove the arm

from the base clamp, take the

provided tool (M), rotate, and

loosen connection.

M

A

3A. When the C-Clamp (A) is securely

attached to a surface, use the provided

security tool (G), attach to security

component, and rotate closewise to put

the C-Clamp in an ‘locked’ state. To

loosen, rotate counterclockwise with

the security tool.

3B. Align the (2) dimples on the underneath of the

security tool (G) into the two holes on the security

component on the clamp as shown above

3C. Rotate security tool (G)

counter-clockwise to loosen and

place the clamp in an ‘unlocked’

state. Continue rotating until there is

enough slack to rotate the knob.Turn

it clockwise to tighten and place the

clamp in a ‘locked’ state.

Aligning Security tool with security component

A

G

G

(718) 963-9845 www.ctadigital.comsuppo@ctadigital.com36 Taaffe Place Brooklyn, NY 11205
