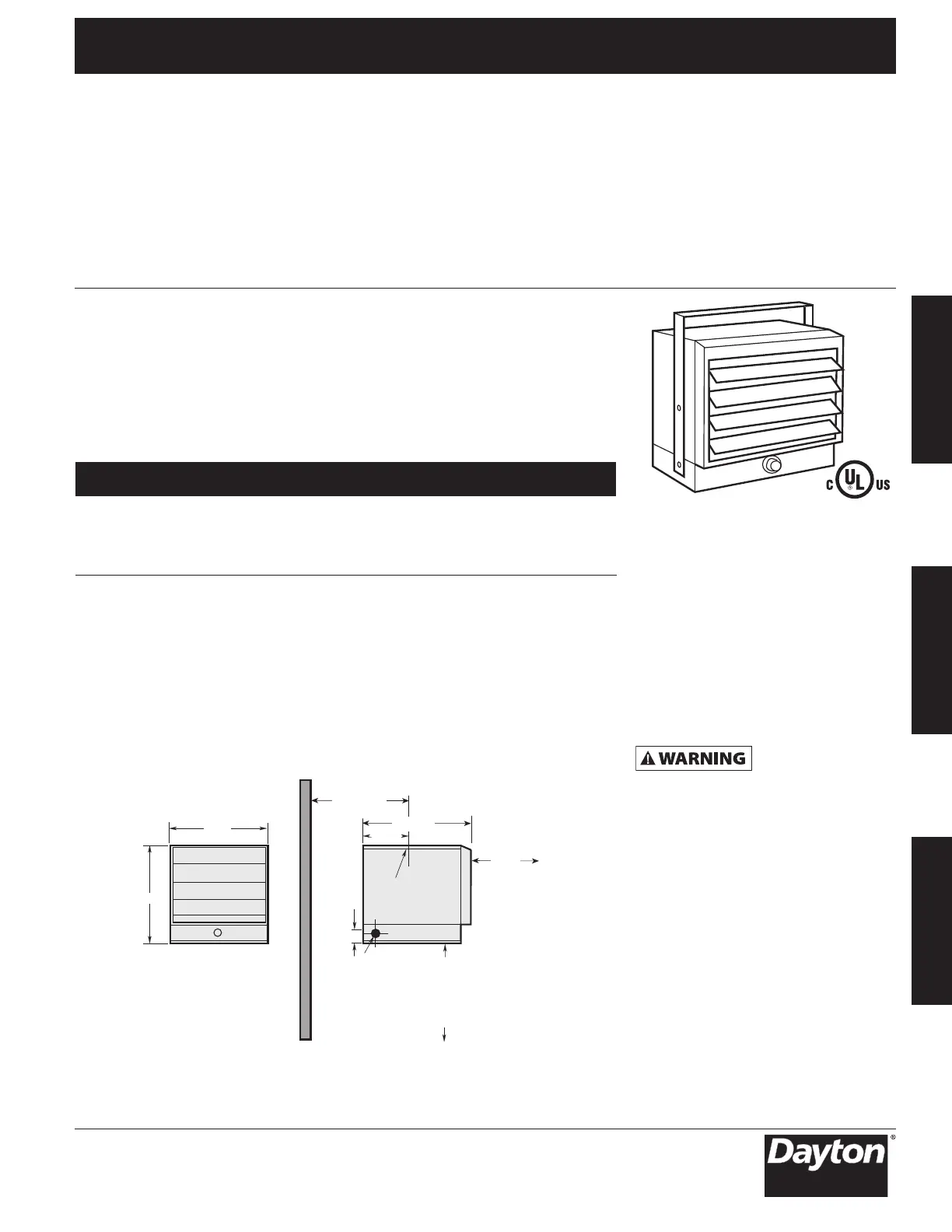

Seite 1/24
Form 5S5433
E
N
G
L
I
S
H
E
S
P
A
Ñ
O
L
F
R
A
N
Ç
A
I
S
Printed in U.S.A.
09663
Version 1
06/2013
Unpacking
Remove the heater from box and
inspect for any damage. If it appears
to be damaged, immediately return.
Check the contents of the box to make
sure it contains one heating unit and
one mounting bracket.
General Safety
Information
When using electric
appliances, basic
precautions should always be followed
to reduce the risk of fire, electric shock
and injury to persons, including the
following:
1. Read all instructions before installing
or using this heater.
2. This heater is hot when in use. To
avoid burns, do not let bare skin
touch hot surfaces. Keep combustible
materials, such as furniture, pillows,
bedding, papers, clothes, etc. and
curtains at least 3 feet (0.9 m) from
the front of the heater.
3. Extreme caution is necessary when
any heater is used by or near children
or invalids, and whenever the heater
is left operating and unattended.
Dayton
®
Electric Utility
Heaters
Operating Instructions & Parts Manual 3UG73E and 3UG74E
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
Dayton electric utility heaters are designed to meet a variety of heating
requirements by switching a few wires located in the base of the unit. Heat output
ranges from 6,396 to 17,065 BTU per hour. Features horizontal and vertical flow
(horizontal air throw approximately 18 ft.), built-in thermostat, and high-limit
thermal cutout.
Figure 1
(*) Can be operated at 208V (see Table 1 for ratings).
(**) Heater is shipped from factory wired for these wattages. Heater can be field
adjusted to the other wattages (refer to “Adjusting the Heat Output” on page 4).
Figure 2 – Dimensions
Minimum
Distance to Wall
NOTE: Min. Clearance To Ceiling
When Not Using Mounting
Brackets Is 1
5
/8”
Mounting
Location
6’ Minimum
Distance to Floor
Minimum Distance
from Discharge
to Any Object
Maximum Mounting Height for:
Vertical Air Delivery Unit = 11’
Horizontal Air Delivery Unit = 8’
Front View
Side View
14”
13”
11
1
/4”
5
1
/2”
24”
12
1
/2”
1
3
/4”
1/2”, 3/4”
3UG73E* 5000** 240/208 1 60 20.9 18.0 270 60˚F 17,065 12,799
4165 240/208 1 60 17.4 15.0 270 60˚F 14,215 10,659
3332 240/208 1 60 13.9 12.0 270 60˚F 11,365 8,533
2500 240/208 1 60 10.4 9.0 270 60˚F 8,533 6,393
3UG74E 5000** 208 1 60 – 24.0 270 60˚F – 17,065
4165 208 1 60 – 20.0 270 60˚F – 14,215
3332 208 1 60 – 16.0 270 60˚F – 11,365
2500 208 1 60 – 12.0 270 60˚F – 8,533
Specifications
Amps @ Temp. BTU/Hr. @
Model Watts Volts Phase Hz 240V 208V CFM Rise 240V 208V
06/13
5200-11198-000
ISS 1.0
ECR 39427
2
E
N
G
L
I
S
H
General Safety
Information
(Continued)
4. Do not operate any heater after
it malfunctions. Disconnect power
at main service panel and have
heater inspected by a reputable
electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls
to off, and turn off power to heater
circuit at main service panel.
7. Do not insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an electric
shock, fire, or damage to the heater.
8. To prevent a possible fire, do not
block air intake or exhaust in
any manner.
9. A heater has hot and arcing or
sparking parts inside. Do not use it
in areas where gasoline, paint, or
flammable liquids are used or stored.
10. Use this heater only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock, or
injury to persons.
11.This heater is provided with a red
alarm light that will illuminate only
if the heater has turned off as a
result of overheating. If you see the
light on, immediately turn the heater
off and inspect for any objects on
or adjacent to the heater that
may have blocked the airflow or
otherwise caused high temperatures
to have occurred. DO NOT OPERATE
THE HEATER WITH THE ALARM
LIGHT ILLUMINATING.
12. This heater is intended for comfort
heating applications and not intended
for use in special environments. Do
not use in damp or wet locations such
as marine or greenhouse or in areas
where corrosive or chemical agents
are present.
13. When installing, see INSTALLATION
INSTRUCTIONS for additional
warnings and precautions.
14. For safe and efficient operation,
and to extend the life of your
heater, keep your heater clean.
See MAINTENANCE INSTRUCTIONS.
SAVE THESE
INSTRUCTIONS
Installation
Instructions
To prevent a
possible fire,
injury to persons or damage to the
heater, adhere to the following:
1. Disconnect all power coming to
heater at main service panel before
wiring or servicing.
2. All wiring procedures and
connections must be in accordance
with the National and Local Codes
having jurisdiction and the heater
must be grounded.
3. Verify the power supply voltage
coming to heater matches the ratings
as shown on the heater nameplate.
Energizing heater
at a voltage greater
than the voltage printed on the name -
plate will damage the heater and void
the warranty and could cause a fire.
High temperature,
risk of fire; keep
electrical cords, drapery, furnishings,
and other combustibles at least 3 feet
(0.9 m) from front of heater. Do not
install heater behind doors, below
towel racks, or in an area where it is
subject to being blocked by furniture,
curtains or storage materials. Hot air
from the heater may damage certain
fabrics and plastics.
4. To reduce the risk of fire, do not store
or use gasoline or other flammable
vapors and liquids in the vicinity
of the heater.
5. When heater is to be wall or ceiling
mounted, the anchoring provisions
must be of sufficient strength to
support the total weight of the
heater plus the weight of the
mounting provisions. Failure to
properly secure the supporting
members of the building structure
could allow the heater to fall.
6. The following minimum clearances
must be maintained:
For vertical airflow, bottom of heater
to floor: 6’ (1829 mm) minimum,
11’ (3353 mm) maximum.
Horizontal aiflow, bottom of heater
to floor: 6’ (1829 mm) minimum,
8’ (2438 mm) maximum.
Sides of heater to adjacent wall:
Airflow from horizontal to 45°
downward: 13” (330 mm) -
Airflow from 45° downward to
straight down 48” (1219 mm).
Discharge to any object: 36”
(915 mm) minimum.
7. Do not use this heater for dry
out as the paint, plaster, sawdust
and drywall sanding dust will
permanently damage the heater
and must be kept out of the heater.
Dayton
®
Electric Utility Heaters
3UG73E and 3UG74E
Dayton Operating Instructions and Parts Manual
