1 GENERAL DESCRIPTION AND SPECIFICATIONS
Providing regulated excitation current, the Model 10A15-8 can condition up to eight
independent temperature signals from many
3-wire, dual-thermistor-bead probes,
in any desired mix (within designated ranges, thermistor probes offer higher accuracy
and greater long-term dependability than thermocouples).
All analog input channels derived from a Model 10A15-8 must be given a channel
“type” code of
55 (“raw” millivolt signal), via the procedure described in Section 3.a,
below.
ADDITIONAL 10A15-8 SPECIFICATIONS
Measurement Range and Resolution
: See Table 1, below; automatically selected—
on an individual channel basis—when the channel is configured; all 10A15-8 data
channels are to be “typed” as “55” (see Section 3.a)
Excitation (per channel): As required for thermolinear transducer
Amplifier (per channel):
Input Impedance: As required for thermolinear transducer
Offset: Initial: ±0.02% of full scale; vs. Temperature: ±50 ppm/°C; vs. Time: ±20
ppm/month
Gain Accuracy: ±0.02% of full scale (absolute maximum input voltage range with-
out damage is ±9 V)
Gain Stability: vs. Temperature: ±50 ppm/°C; vs. Time: ±20 ppm/month
Filter (per channel): 1-pole modified Butterworth; 3 dB down at 30 Hz; 60 dB down at
100 kHz
Step-Response Settling Time (Full-Scale Output):
To 1% of final value: 30 msec
To 0.1% of final value: 60 msec
To 0.02% of final value: 250 msec
Total System Accuracy (typical, including Model 10A15-8, probe interchangeability,
and system data collection and processing): see Table 1, below
Auxiliary Outputs to Mainframe Wire-Wrap Pins: None
SYSTEM 10
ANALOG INPUT CARDS
MODEL 10A15-8
EIGHT-CHANNEL THERMISTOR
CONDITIONER CARD
1.E.2.10A15-8
GENERAL DESCRIPTION AND SPECIFICATIONS 10A15-8.1
Table 1 Thermistor Ranges for the Model 10A15-8
Typical Maximum
Display System Expected
Range Resolution Accuracy* Error*
0° C to +100° C 0.1° C ±0.2° C ±0.3° C
+32° F to +212° F 0.1° F ±0.3° F ±0.5° F
0° C to +100° C 0.01° C ±0.2° C ±0.3° C
+32° F to +212° F 0.02° F ±0.3° F ±0.5° F
2 TRANSDUCER CONNECTIONS
The Model 10A15-8’s I/O CONNECTOR mates with Daytronic CONDITIONER CON-
NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is
shown in Fig. 1, below; standard pin assignments for the I/O connector are given in
Table 2.
10A15-8.2 TRANSDUCER CONNECTIONS
10A15-8 EIGHT-CHANNEL THERMISTOR CARD
* Including ± one count of least significant digit displayed and probe interchangeability error of
±0.15° C or ±0.25° F.
CONDITIONER CONNECTOR (No. 60322)
SHIELD
Connector pins shown as
viewed from rear (cable)
side of connector
C
1
2
3
4
5
6
7
8
9
10
Ground Lug
Channel
1
J
A
B
D
E
F
H
K
L
Etc.
T1 T2
T1 T2
Channel
2
SIGNAL
COMMON
(GROUND)

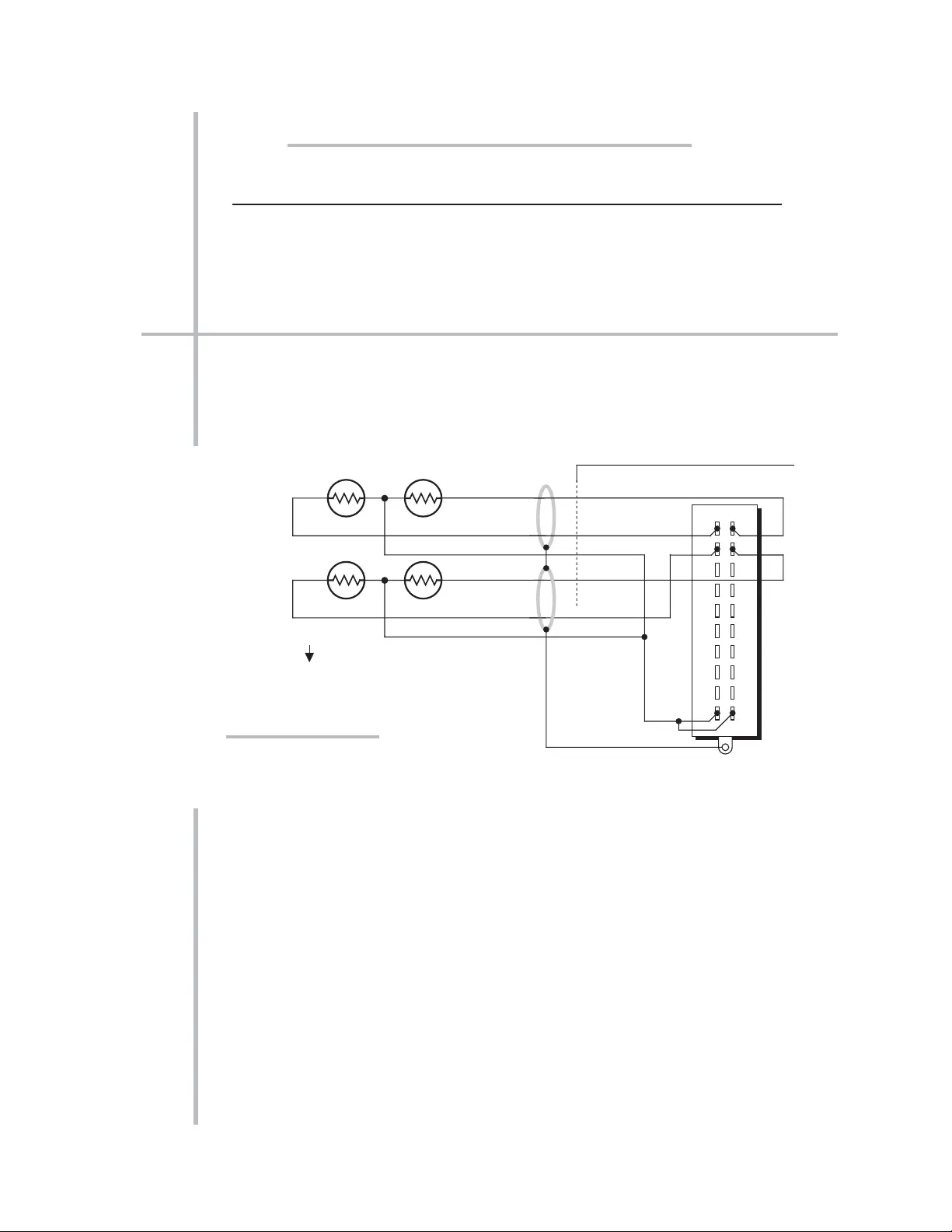

Fig. 1 Model 10A15-8
Transducer Cabling
