Seite 1/4
1 GENERAL DESCRIPTION AND SPECIFICATIONS
This high-accuracy conditioner accepts up to eight independent current signals with-
in the ISA standard range of 4-20 mA. Both unipolar and bipolar (“zero-center”) inputs
are allowed. Since the 10A62-8C does not provide excitation, the current source must
supply its own power supply, if required.
Chopper-stabilized amplification with active low-pass filtering yields excellent voltage
compliance and make the 10A62-8C suitable for virtually any standard Process Indus-
try current input.
ADDITIONAL 10A62-8C SPECIFICATIONS
Input Current
: 4 to 20 mA (unipolar) or 4 to 12 to 20 mA (bipolar or “zero-center”);
automatically selected—on an individual channel basis—when the channel is config-
ured; for the System 10 channel “type” codes assigned to 10A62-8C data channels,
see Table 1, below
Amplifier (per channel):
Common-Mode Range: ±20 V operating; ±50 V without instrument damage
Common-Mode Rejection Ratio: DC: -100 dB; at 60 Hz, 1 kHz, and 3 kHz: -150 dB
Input Impedance: Differential: 100 Ω; Common-Mode: 500 kΩ
Burden: 2 V-DC at full scale
Offset: Initial: ±0.02% of full scale; vs. Temperature: ±20 ppm/°C; vs. Time: ±20
ppm/month
Gain Accuracy: ±0.02% of full scale
Gain Stability: vs. Temperature: ±50 ppm/°C; vs. Time: ±20 ppm/month
Filter (per channel): 3-pole modified Butterworth; 3 dB down at 5 Hz; 60 dB down at
100 Hz
Step-Response Settling Time (Full-Scale Output):
To 1% of final value: 170 msec
To 0.1% of final value: 240 msec
To 0.02% of final value: 270 msec
Auxiliary Outputs to Mainframe Wire-Wrap Pins: None
Table 1 10A62-8C “Type” Codes
Full-Scale Channel
Range Type Code
4-20 mA 6C
4-12-20 mA 6D
GENERAL DESCRIPTION AND SPECIFICATIONS 10A62-8C.1
MODEL 10A62-8C
EIGHT-CHANNEL 4-20 MA
C
ONDITIONER CARD
SYSTEM 10
ANALOG INPUT CARDS
1.E.2.10A62-8C
2 TRANSDUCER CONNECTIONS
The Model 10A62-8C’s I/O CONNECTOR mates with Daytronic CONDITIONER CON-
NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is
shown in Fig. 1. Table 2 gives standard pin assignments for the I/O Connector.
Table 2 Model 10A62-8C Pin Assignments
I/O Connector Conditioner Conditioner
Pin Channel Line
Number Number Function
11+SIGNAL
A1–SIGNAL
22+SIGNAL
B2–SIGNAL
33+SIGNAL
C3–SIGNAL
44+SIGNAL
D4–SIGNAL
55+SIGNAL
E5–SIGNAL
66+SIGNAL
F6–SIGNAL
77+SIGNAL
H7–SIGNAL
88+SIGNAL
J8–SIGNAL
9,K,10,L Not Committed
10A62-8C.2 TRANSDUCER CONNECTIONS
10A62-8C EIGHT-CHANNEL 4-20 MA CARD
CONDITIONER CONNECTOR (No. 60322)
SHIELD
Connector pins shown as
viewed from rear (cable)
side of connector
1
2
3
4
5
6
7
8
9
10
Ground Lug
A
B
C
D
E
F
H
J
K
L
+SIGNAL
–SIGNAL
+
–
Channel 1
4 - 20
mA
Source
Reg. Power
Supply
(if required)
–SIGNAL +SIGNAL
–SIGNAL +SIGNAL
Channel 2:
–SIGNAL +SIGNAL
Channel 3:
–SIGNAL +SIGNAL
Channel 4:
–SIGNAL +SIGNAL
Channel 5:
–SIGNAL +SIGNAL
Channel 6:
–SIGNAL +SIGNAL
Channel 7:
Channel 8:

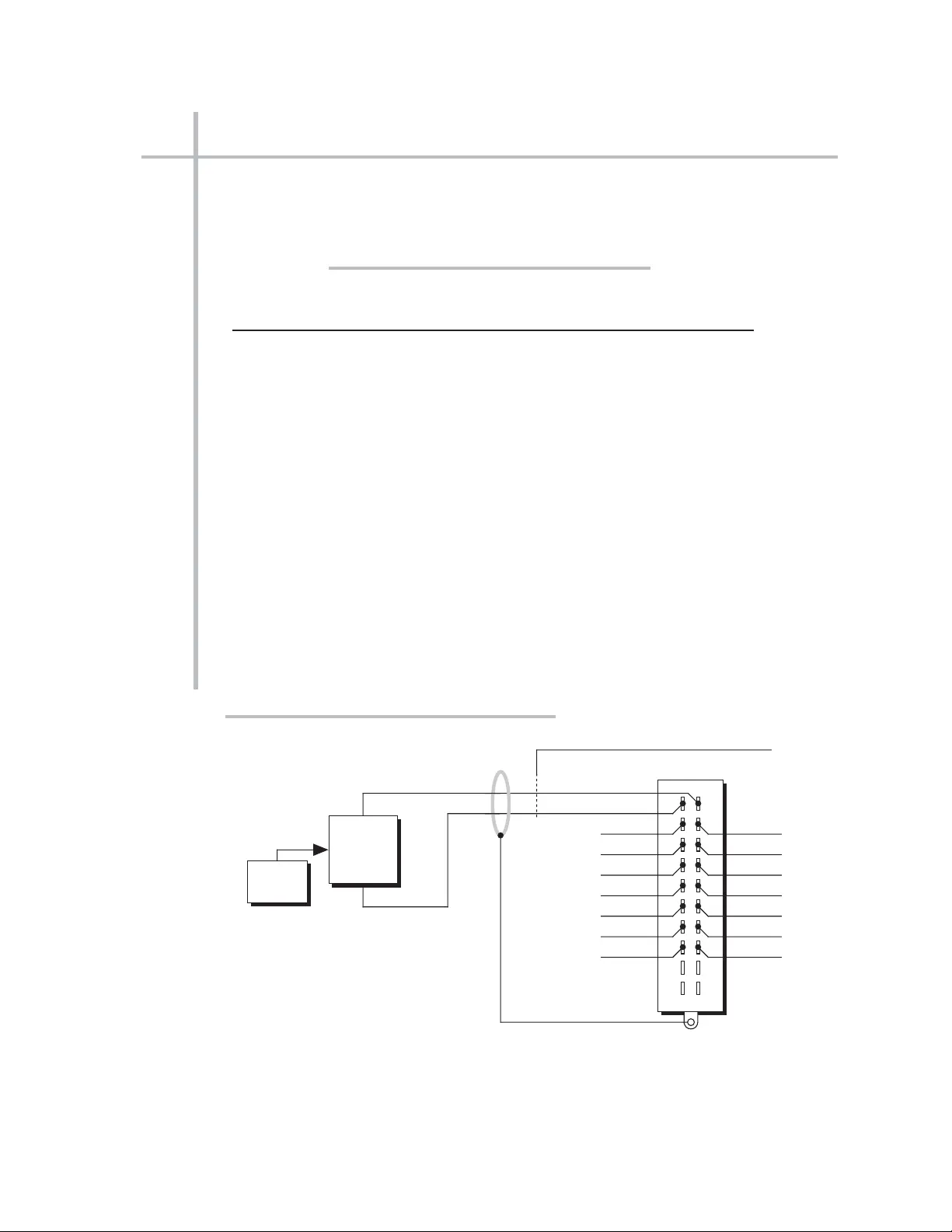

Fig. 1 Model 10A62-8C Transducer Cabling
