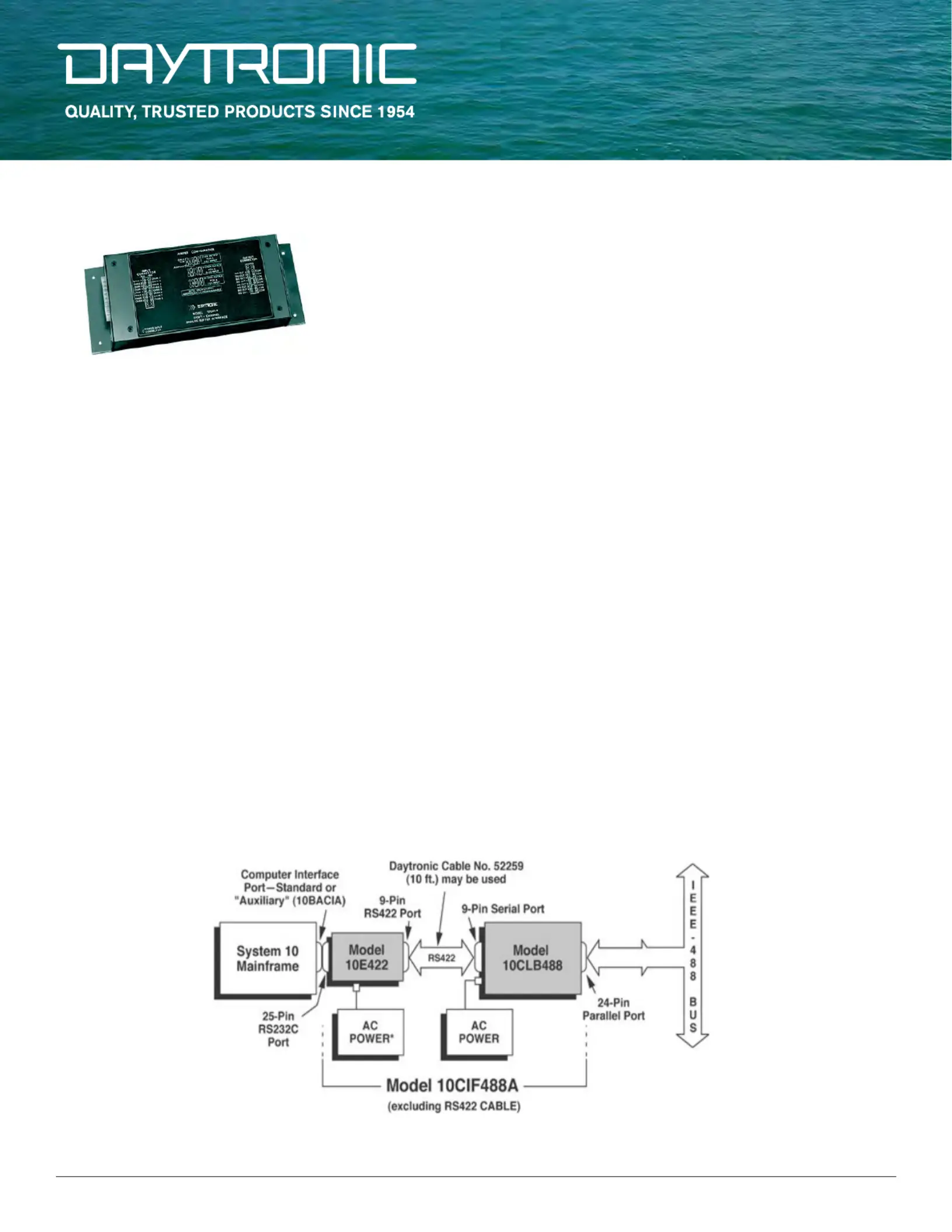

PUB. No. 10CIF488APB.21 | DAYTRONIC CORPORATION | DAYTON, OH | 800.668.4745 | DAYTRONIC.COM
For use in System 10 ....... The Model is an IEEE Interface Adaptor enables any System 10 mainframe to be 10CIF488A
established as a “Talker/Listener” peripheral on a standard IEEE-488 bus, with a switch-selectable bus address from 0 through
30. The consists of two separate units: the Model 10E422 RS-232-C to RS-422 Converter and the Model10CIF488A
10CLB488 IEEE-488 to RS-422 Converter. The interconnecting cable is normally supplied by the user (Daytronic cable No.
52259 may be used for distances of up to 10 feet). Replacing the former Model 10CIF488, the makes possible 10CIF488A
IEEE-488 communications across significantly greater distances, at a higher data rate and with greatly enhanced noise
immunity.
A basic component of the Model IEEEInterface Adaptor (above), the externally mounted Model 10CIF488A 10CLB488 IEEE-
488 to RS-422 Converter directly connects a System 10 mainframe’s Model -converted interface to an IEEE-488 10E422
bus. A six-foot power cord comes with every , with a switch-selectable transformer that may be plugged into any 10CLB488
standard source of 110 or 220 V-AC.
RS-232-C to RS-422 ConverterThe external Model RS-232-C to RS-422 Converter lets youconvert to “RS-422” 10E422
standards a System 10 mainframe’s main RS-232-C Computer Interface or the “Auxiliary” RS-232-C Interface supplied by
anoptional “10BACI” Card. A single 10E422 would be used tolink a mainframe either to a device with RS-422 I/O or to a
Model IEEE-488 to RS-422 Converter. Baud rate and other protocols for the resulting RS-422 interface are 10CLB488
identical to those to which the mainframe’s RS-232-C interface has been set. A six-foot power cord is supplied with every
10E422, with a switch-selectable transformer that may be plugged into any standard source of 110 or 220 V-AC (60 Hz), if
external power is required.
IEEE-488 COMMUNICATIONS INTERFACE w/
10CLB488 & 10E422 MODULES
MODEL 10CIF488A
IEEE-488 COMMUNICATIONS INTERFACE
[“C’ CARD SERIES]
