The Model 5M64 is a single-channel DIN Mount instrument which is an easily configured,
rugged, analog based signal conditioner made to operate with traditional DC sensor sources,
such as string potentiometers, DC LVDTs and other sensors to measure force, pressure, torque,
displacement and related measurements. The Model 5M64 has an extremely wide DC
signal input range with user selectable gain, zero and anaolg output making it adaptable
to any sensor application that requires stable, repeatable and noise free analog signals
for control or data acquisition requirements.
1GENERALDESCRIPTIONANDSPECIFICATIONS
Model 5M64 DC Voltage Module
Access switch settings via the front
panel of the 5M64 by gently pulling the
clear plastic cover (from the top
side) so the cover rotates open from
DIN DC Voltage & mA Conditioner
MODEL5M64
DC Voltage & mA
C
ONDITIONERModule
5M64
1.A.1.5M64
GENERALDESCRIPTIONANDSPECIFICATIONS5M64.1
or without power to the unit. Once
completed, return the cover to the

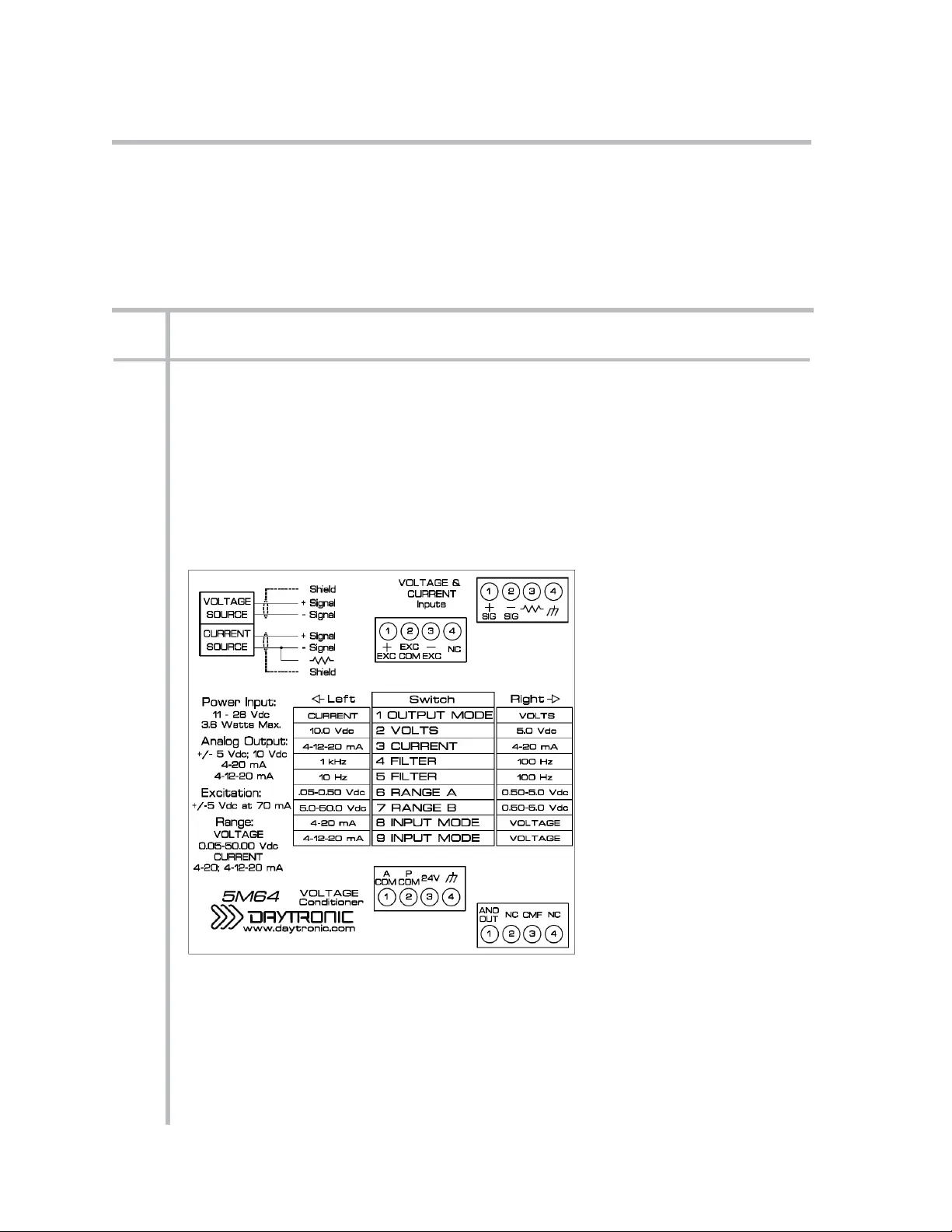

View of Side Label of the Model 5M64 DC Voltage Module
the bottom. Use a small tool or finger to
place the switches to the left or right
position as you face the front of the
module. This process can be done with
original position.
4-20ma Input Operation
The Model 5M64 contains a precision input
shunt resistor for mA input as indicated
by the resistor symbol on input pin 3.
